ENVO Drive M50
500W Mid-Drive Electric Mountain Bike
"A lightweight, long-range all-mountain e-MTB with mid-drive power and trail-rated components."

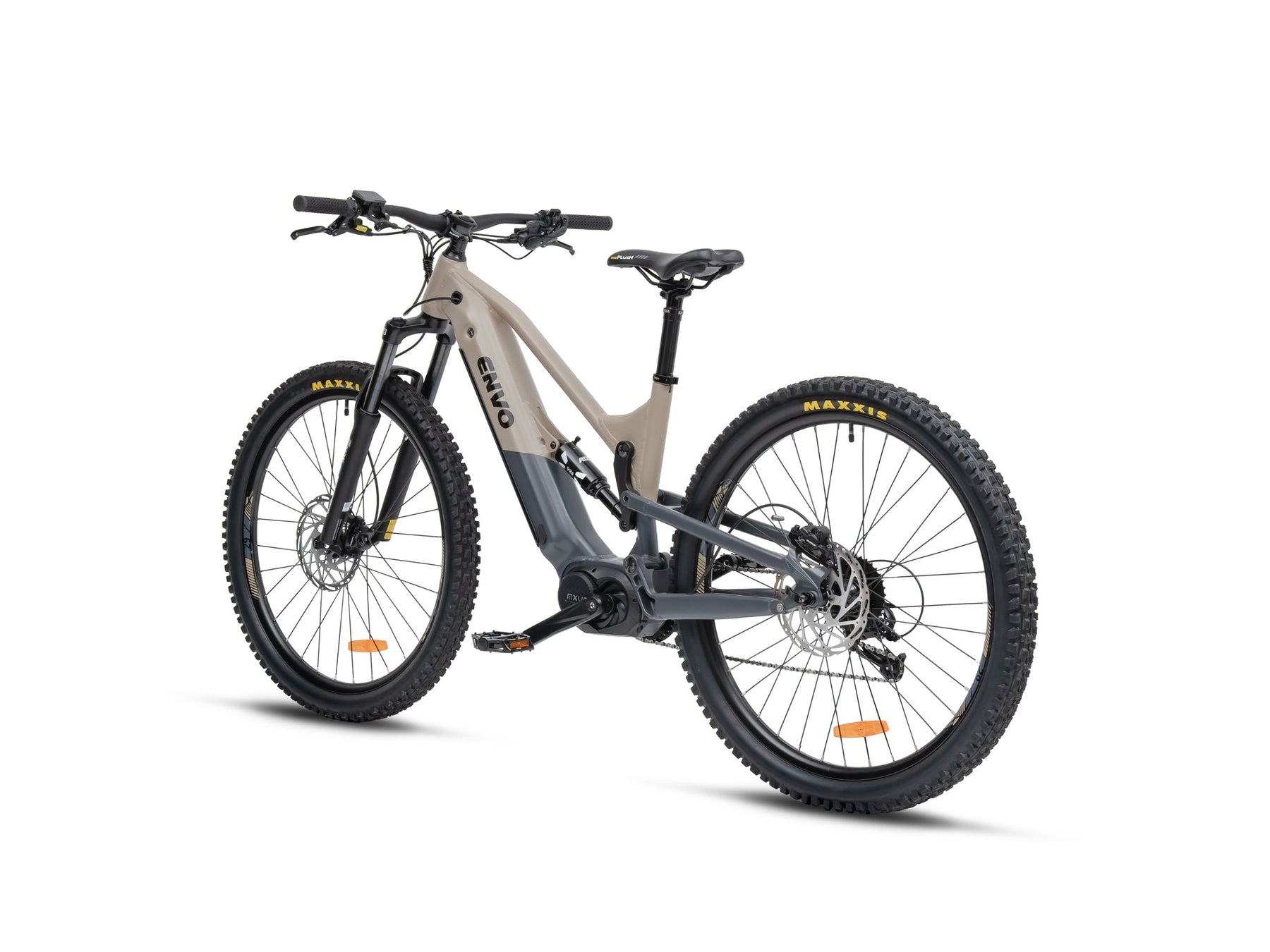

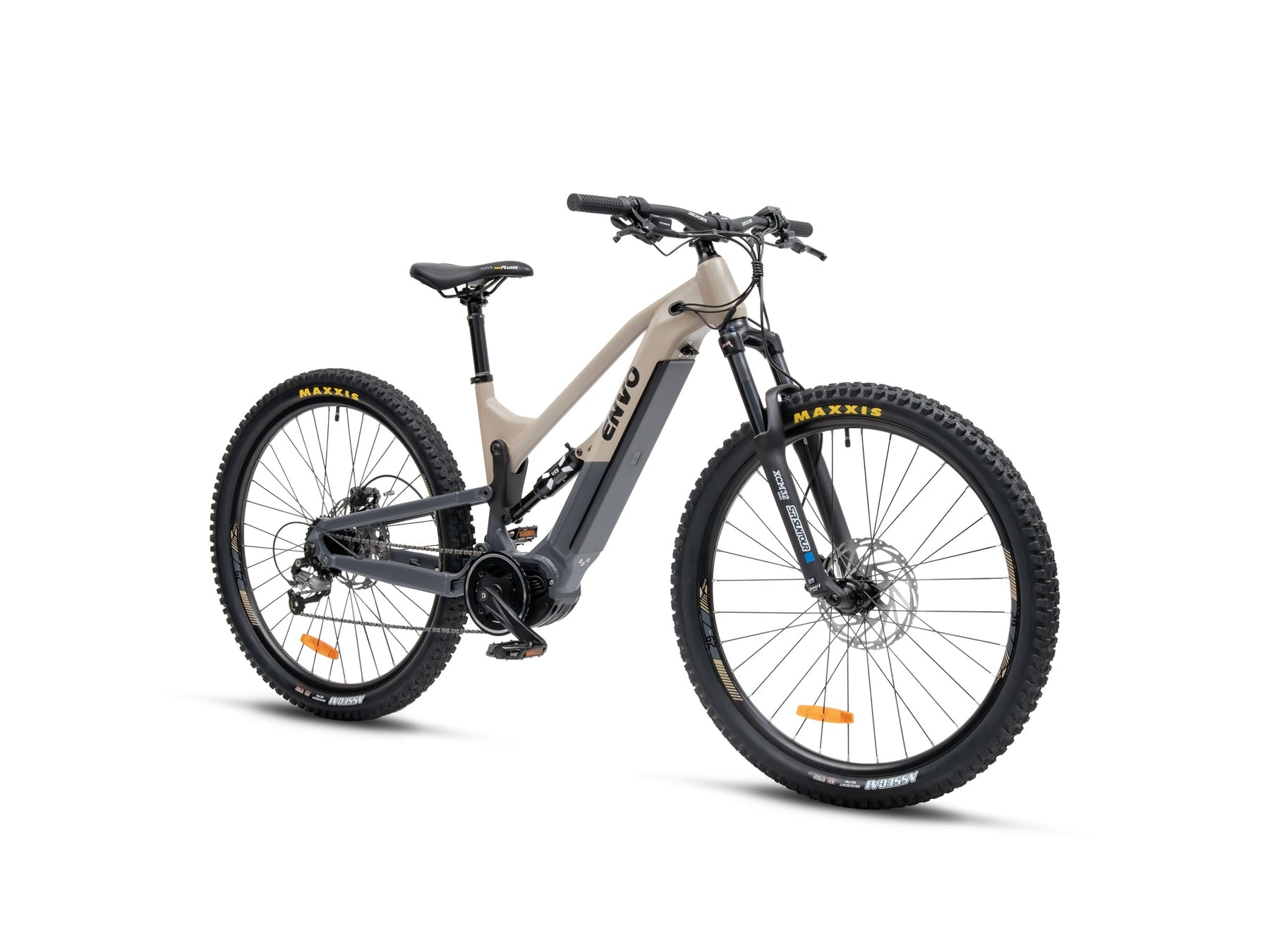

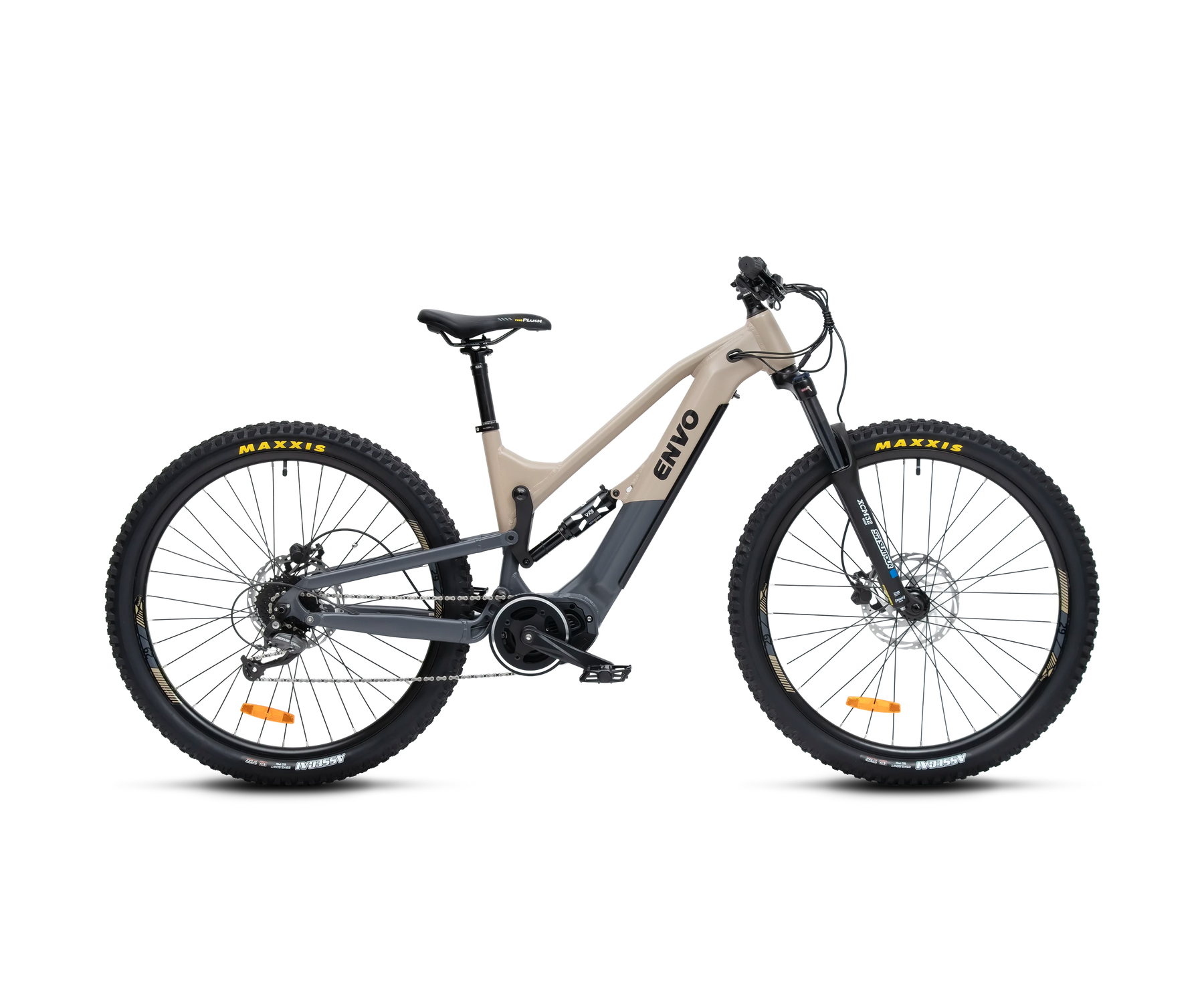

The ENVO M50 electric mountain bike delivers serious trail capability with the MXUS M5 mid-drive motor producing 120Nm of torque through a lightweight 3.3 kg power unit. At 66 lbs total weight, the M50 is significantly lighter than most full-suspension e-MTBs in its class.
Built with a hydro-formed aluminum alloy frame, 130mm front fork travel, 60mm rear shock travel, and 29" x 2.5" Maxxis tires, this is a mid-drive mountain e-bike designed for technical singletrack. The Shimano Altus 9-speed drivetrain and Tektro hydraulic brakes with 203mm rotors complete the trail-ready package.
"The M50 puts mid-drive torque, dropper post, and proper trail suspension on an e-MTB at half the price of comparable options. 120Nm through a 3.3 kg motor is impressive power-to-weight for aggressive trail riding."
THIS RIDE IS FOR YOU IF...
- You ride technical singletrack and need mid-drive torque for steep climbs
- You want a lightweight e-MTB under 70 lbs with proper trail components
- You value 120Nm of torque for powering through rock gardens and root sections
- You prefer a 29er platform with real suspension travel for all-mountain riding
HYDRO-FORMED ALL-MOUNTAIN FRAME
Aluminum Alloy, Trail Geometry
The M50 frame uses hydro-formed aluminum alloy tubing for optimal strength-to-weight ratio. The geometry is designed for all-mountain riding with slack head angle and reach that keeps you centered on technical descents while maintaining efficient climbing posture.

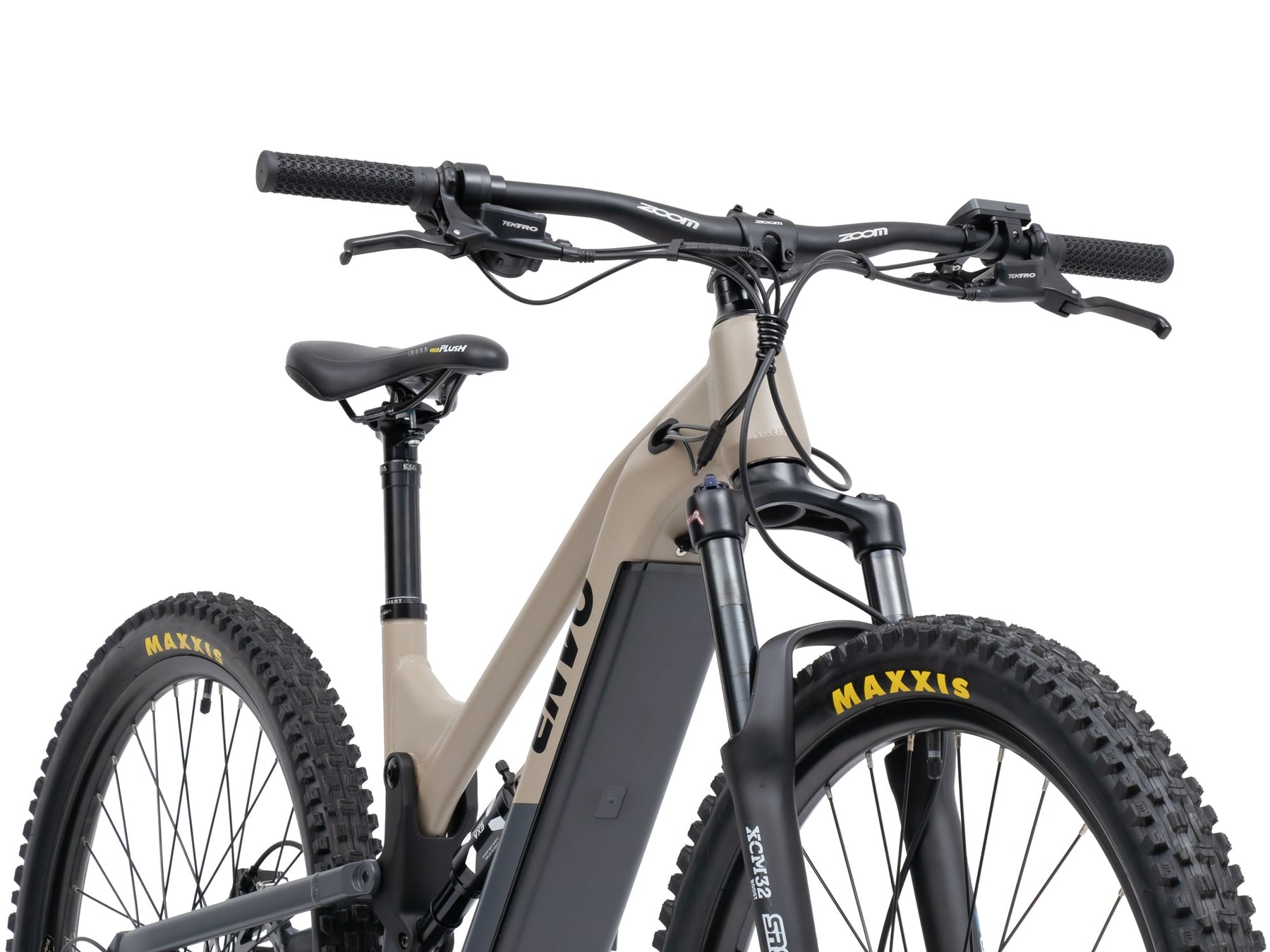

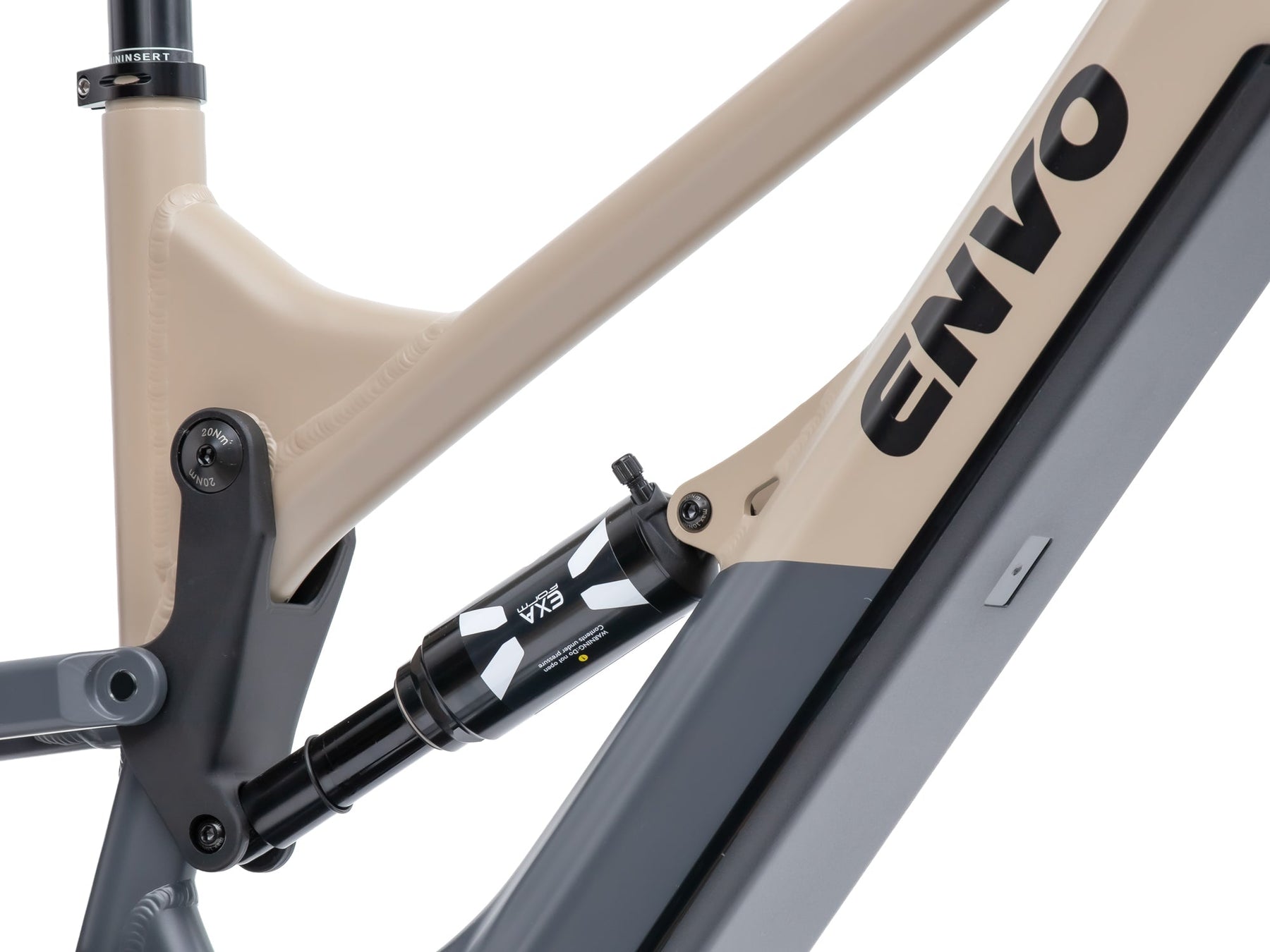

The full suspension electric mountain bike platform pairs a Suntour XCM32 Boost fork with 120mm travel and hydraulic lockout against a rear shock delivering 60mm of travel. The KS KSP900 dropper post with 125mm of travel and remote lever lets you adjust saddle height on the fly for descents.

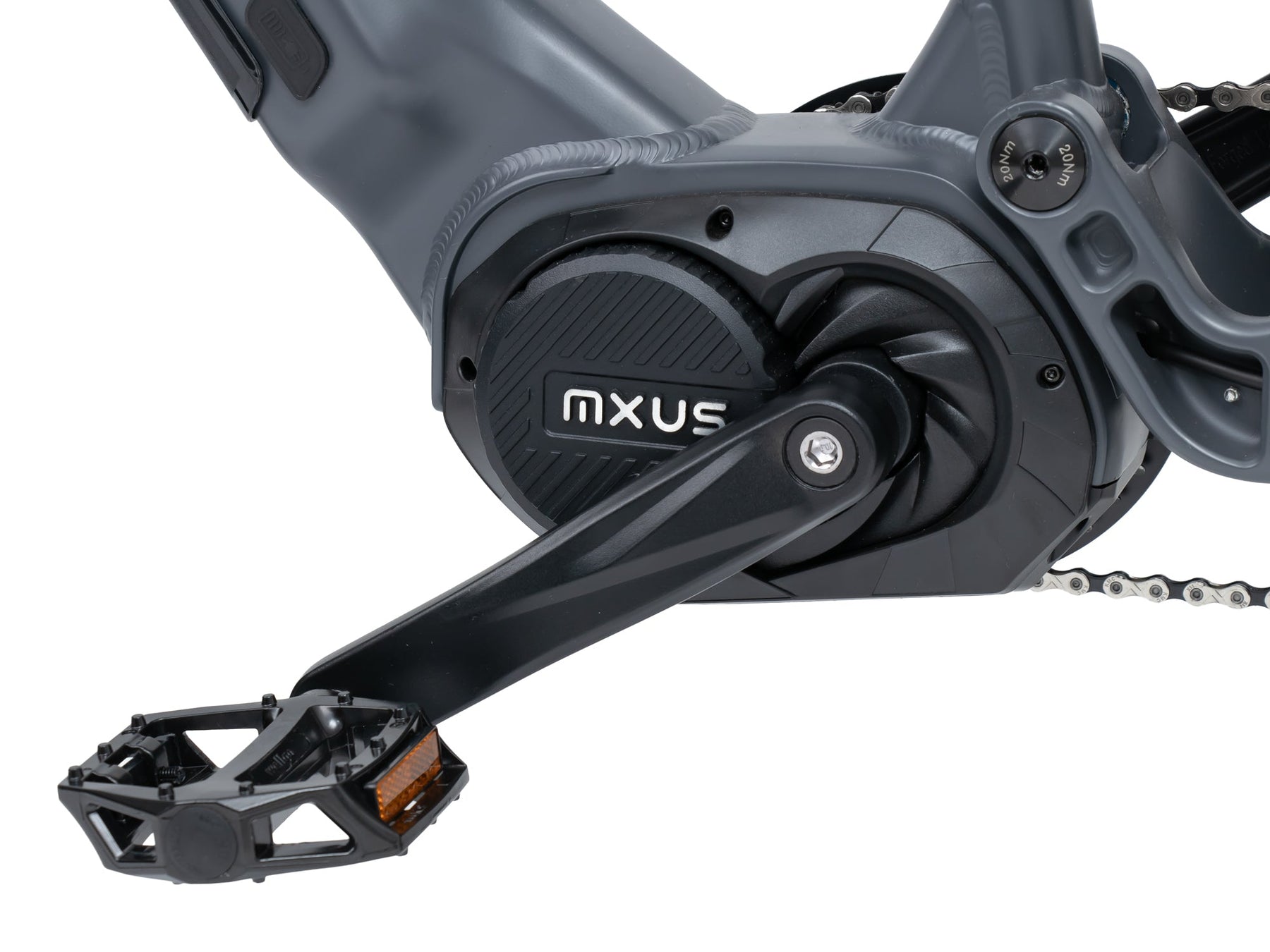

MXUS M5 MID-DRIVE. 120NM TORQUE.
3.3 kg Motor, Sine Wave Controller
The MXUS M5 mid-drive motor weighs just 3.3 kg while delivering 120Nm of torque. The sine wave controller provides smooth, quiet power delivery that feels natural on the trail. Mid-drive placement keeps weight centered low in the frame for balanced handling through technical sections.
The 48V 15Ah UL-certified battery with premium LG cells integrates into the downtube with an impact-resistant aluminum case. Smart BMS ensures safe operation even in cold weather. Bluetooth-enabled display connects to the ENVO app for ride data and motor tuning.
KEY FEATURES
MXUS M5 Mid-Drive Motor
500W motor delivers 120Nm torque through a lightweight 3.3 kg unit with sine wave controller.
UL-Certified Battery
48V 15Ah battery with premium LG cells, smart BMS, and integrated downtube design.
KS Dropper Post
KSP900 dropper with 125mm travel and remote lever for on-the-fly saddle adjustment.

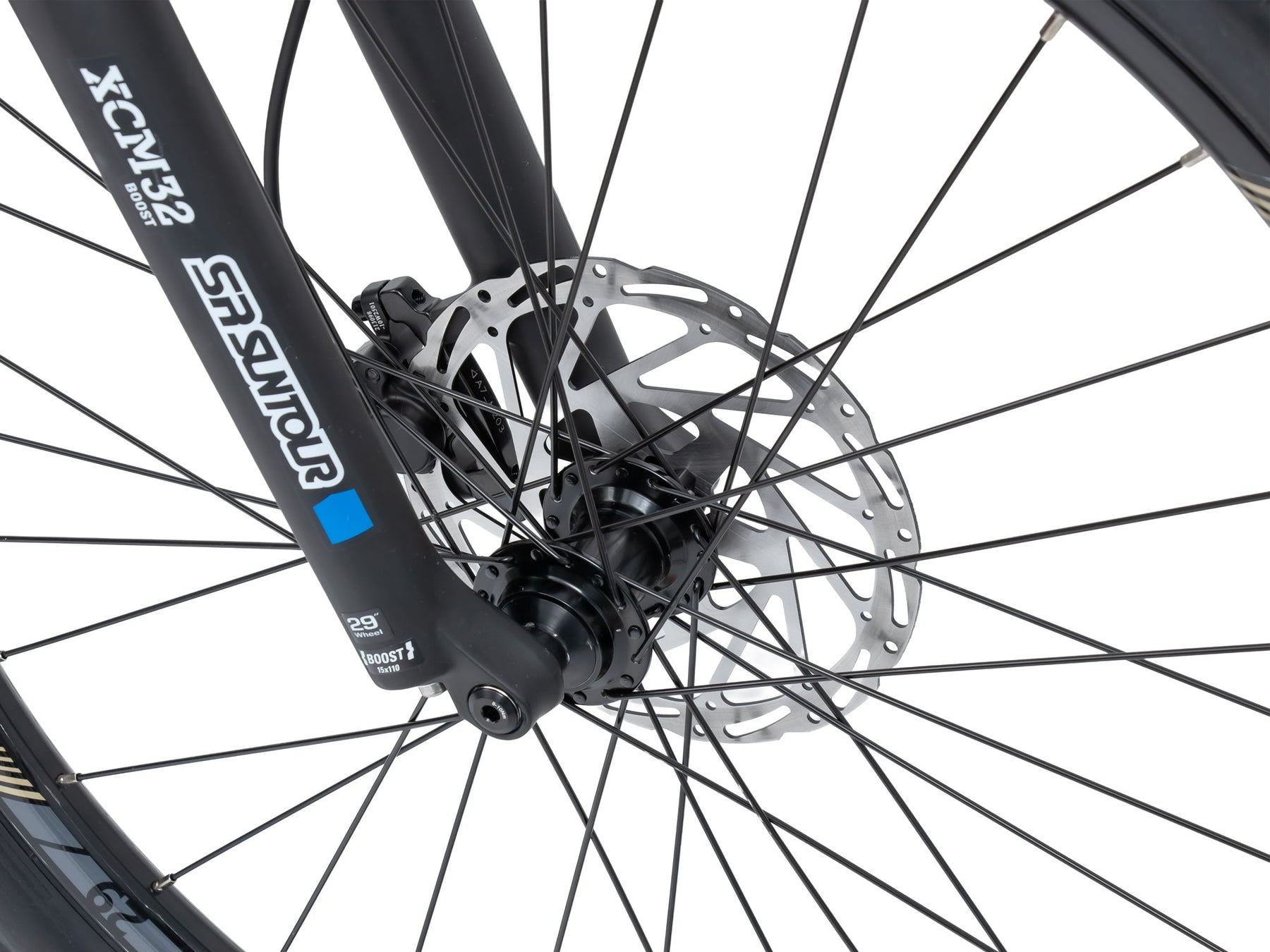

Tektro HD-E3520 Brakes
Hydraulic disc brakes with 203mm rotors for confident stopping on steep descents.
Shimano Altus 9-Speed
11-34T cassette provides wide gear range for climbing and descending.
29" Maxxis Tires
29 x 2.5" Maxxis tires for traction and rollover capability on rough terrain.
WHY THIS BUILD MATTERS
Here is the technical breakdown of why this bike stands out.
Mid-Drive Advantage
Motor torque multiplied through gears means more climbing power and natural pedal feel compared to hub motors.
Trail-Ready Weight
At 66 lbs with full suspension and mid-drive, the M50 handles like a real mountain bike, not a heavy e-bike.
Serious Components
Dropper post, hydraulic brakes with 203mm rotors, and Maxxis tires. No compromise components at this price point.
SIZING GUIDE
| Frame Size | Rider Height |
|---|---|
| Large | 5'8" - 6'4" |
Technical Specifications
| Motor | MXUS M5 Mid-Drive, 500W, 120Nm Torque |
|---|---|
| Motor Weight | 3.3 kg |
| Battery | 48V 15Ah (720Wh), UL Certified, LG Cells |
| Range | Up to 93 mi (PAS 1) |
| Frame | Hydro-Formed Aluminum Alloy |
| Front Fork | Suntour XCM32 Boost, 120mm Travel, Hydraulic Lockout |
| Rear Shock | 60mm Travel |
| Brakes | Tektro HD-E3520, 203mm Rotors |
| Tires | 29" x 2.5" Maxxis |
| Drivetrain | Shimano Altus 9-Speed, 11-34T |
| Dropper Post | KS KSP900, 125mm Travel |
| Handlebar | 780mm Width |
| Display | Bluetooth Smart Display |
| Weight | 66 lbs |
Frequently Asked Questions
Is the ENVO M50 a good electric mountain bike for trails?
Yes. The M50 is purpose-built for trail riding with 120Nm mid-drive torque, 120mm front suspension, 60mm rear suspension, dropper post, and 29" Maxxis tires. It handles technical singletrack, rocky climbs, and fast descents.
How much does the ENVO M50 weigh?
66 lbs (30 kg). That is significantly lighter than most full-suspension e-MTBs in this price range, which typically weigh 70 to 80 lbs.
What is the range of the ENVO M50?
Up to 93 miles on pedal assist level 1. Trail riding at higher assist levels typically delivers 20 to 40 miles depending on terrain, elevation gain, and rider weight.
Does the ENVO M50 have a throttle?
Yes, the M50 includes a thumb throttle in addition to the torque-sensing pedal assist system.
What size frame is the ENVO M50?
The M50 comes in a large frame size suited for riders approximately 5'8" to 6'4". The 29" wheels and trail geometry are optimized for taller riders.
Is the M50 battery UL certified?
Yes. The 48V 15Ah battery uses premium LG cells with smart BMS and is UL certified for safety. The battery integrates into an impact-resistant aluminum downtube case.
What's In The Box
- ENVO M50 E-MTBArrives partially assembled. Attach front wheel, handlebars, pedals, and dropper post remote.
- Battery + Charger48V 15Ah UL-certified integrated battery and charger included.
- AccessoriesPedals, tool kit, and assembly hardware included.
