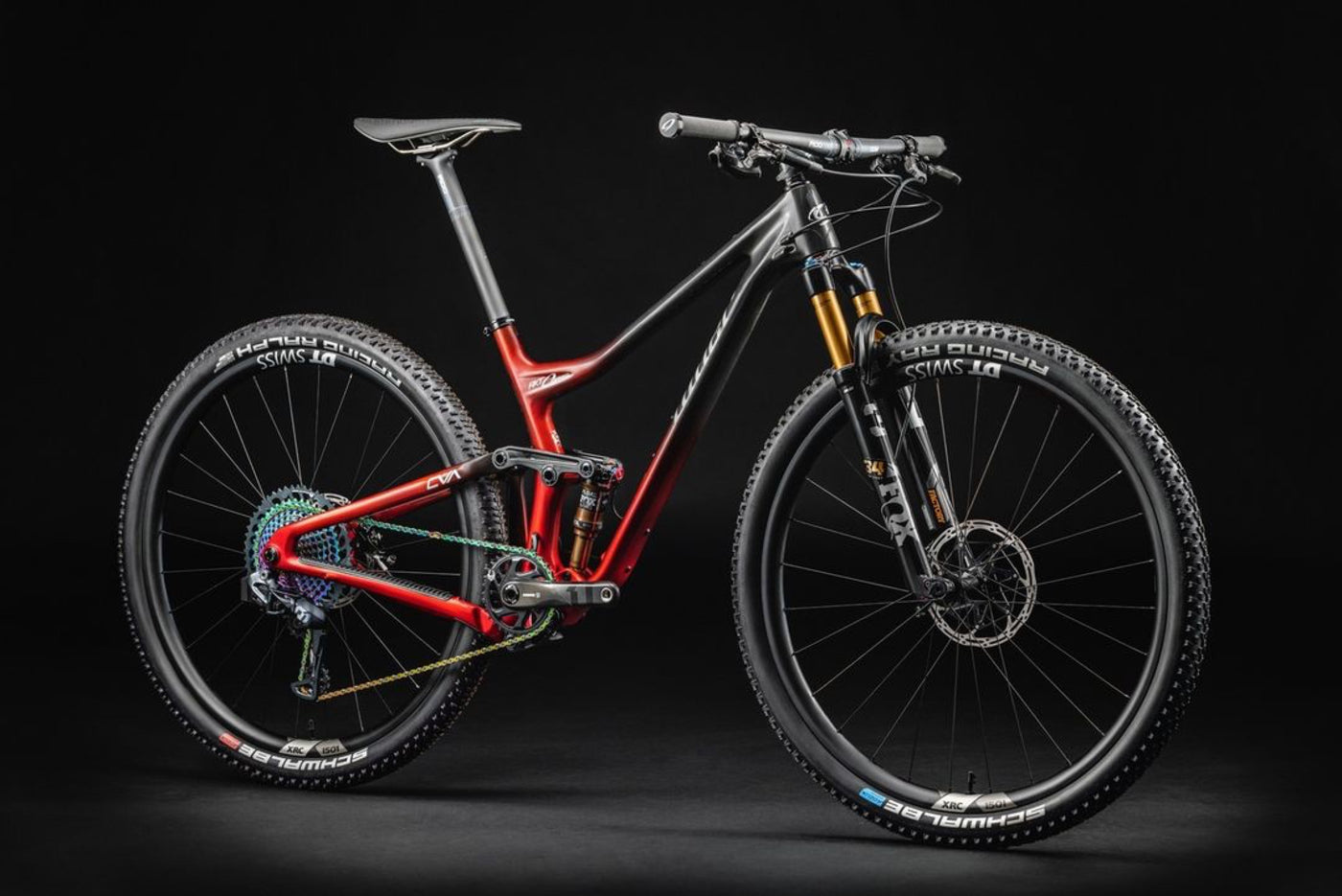

NINER BIKES RKT 9 RDO Mountain Bikes

Niner Bikes has always been about maximizing the speed, efficiency, and precision that 29-inch wheels offer. Now ready for liftoff, this all-new launch vehicle is our line-leading cross-country full suspension bike. Updated with Niner’s patented 100mm CVA suspension system, remote front and rear lockouts, and contemporary race-ready geometry, the newest iteration of our RKT 9 RDO packs efficient pedaling prowess and corner carving capability into a World Cup worthy package.

FEATURES:

Chasing the Record Known Time

Designing the RKT 9 RDO, our product team deliberately focused first on race features. The frame is light and stiff, thanks to Niner’s RDO carbon fiber construction. The frame is made with a no-frills focus for fast flights into orbit. The geometry is aggressive and agile, for quick course corrections at escape velocity speeds. And the suspension travel is short and efficient, with handlebar remote lockout for instant, extra rocket booster power if needed.
Yet, we all know that not all space missions are made in the name of science. For those riders who focus instead on fun laps into low-earth orbit, the updated RKT 9 RDO is built for versatility and a playful, trail-friendly attitude.
Responding to many riders’ requests for capability in the face of any feature, and also accommodating the technical demands of modern cross-country racecourses, a geometry flip chip allows for more relaxed frame angles. Clearance to fit wide, 2.5” tires and a 120mm suspension fork expands the universe of possibilities. The seat tube fits a dropper post, and the long, low-slung frame is made for stability at atmospheric reentry speed.

Racing to the edge of the universe

The RKT 9 RDO is a race bike, first and foremost. Blasting off from the start line, 100mm CVA suspension is made to send every ounce of thrust directly to the rear wheel. And remote front and rear suspension lockouts can be deployed for even more efficiency as needed. Achieving escape velocity has never been easier.
In-flight vector adjustments are easy, thanks to the aggressive, agile frame geometry. A 68-degree head tube angle keeps the sharp end tracking accurately and the 75-degree seat tube angle keeps the pilot positioned optimally for maximum power.
Of course, the RKT 9 RDO is built from Niner’s own Race Day Optimized (RDO) carbon fiber. With careful application of the fiber layers and internal molds to maximize compaction of the carbon and resin matrix, Niner RDO frames are light, stiff and strong. They also exhibit comfortable ride characteristics in the face of burning, lactic acid race efforts and supersonic reentry turbulence alike.
A launch vehicle is only as good as the payload it can carry. With that in mind, we included two full size water bottle mounts in the main triangle. There are also threaded accessory mounts on the top tube for extra fuel, mission-critical cargo, supplemental oxygen, or a repair kit.

“Trail Country” Capability

Not everyone is afflicted by uncontrollable lust for lofty podium landings. Some of us just want to blast up to the mesosphere then point it earthward and let gravity take over. When you’re partying the whole way down, a fun fuselage makes all the difference. Most of us Ninerds are nothing if not FUN.
The RKT 9 RDO was designed with features to keep jorts-wearing thrill seekers equally as happy as our slender, spandex-wrapped racers. This bike sports “trail-country” features like clearance for 2.5-inch tires, a flip chip to slack out the geometry by a half degree, and a short, straight seat tube that’s well-suited for a dropper post.
CVA suspension tuning is made for efficient pedaling, but not at the cost of downhill performance. The trunnion mount shock aids lateral stiffness and keeps the suspension articulation smooth and supple off the top. The frame is even made to accept a 120mm suspension fork for riders wanting high-speed hijinks during planetary reentry.
If flannel and denim is your uniform, and your racing goals are focused on fun first rather than finishing first, this RKT 9 RDO is a launch vehicle you can love.

RKT 9 RDO 5-STAR SRAM X01 AXS LTD Specifications:

With 5-Star SRAM X01 Eagle AXS wireless electronic shifting, DT Swiss XRC 1200 Spline 25 carbon wheels, and a FOX 34 Step Cast fork, our capable cross-country racing platform is fully optimized for speed and efficiency.

DT Swiss XRC Spline 25 carbon wheels
SRAM X01 Eagle AXS Wireless shifting
FOX SC 34 Float Factory FIT 4 EVOL fork, 100mm with lockout

AVAILABLE FRAME SIZES	XS, SM, MD, LG, XL	AVAILABLE COLORS	HOT TAMALE/GLOSS CARBON OR GLOSS CARBON/SILVER
FRAME	NINER RDO CARBON FIBER, 100MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS	FORK	FOX 34 SC FLOAT FACTORY EVOL FIT4, 3 POSITION W/ ADJ, KASHIMA COAT, 100MM, 110X15MM, 44MM OFFSET
SHOCK	FOX FLOAT DPS FACTORY EVOL, W/ REMOTE L/O, KASHIMA COAT	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
FRONT WHEEL	DT SWISS XRC 1200 SPLINE 25, CENTERLOCK, 110X15MM	REAR WHEEL	DT SWISS XRC 1200 SPLINE 25, CENTERLOCK, 148X12MM, RATCHET EXP 36
FRONT TIRE	SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35	REAR TIRE	SCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
BRAKES	SRAM G2 ULTIMATE	BRAKE LEVERS	SRAM G2 ULTIMATE
BRAKE ROTORS	180/160 HS2 ROTORS	CHAIN	SRAM XX1 EAGLE 12SP RAINBOW
FRONT SHIFTER	N/A	REAR SHIFTER	SRAM AXS EAGLE 12SP
FRONT DERAILLEUR	N/A	REAR DERAILLEUR	SRAM X01 AXS EAGLE 12SP WITH BATTERY COVER
CASSETTE	SRAM EAGLE XG 1299, 10-52T RAINBOW	CRANKSET	SRAM X1 EAGLE CARBON DUB, 32T
BOTTOM BRACKET	SRAM DUB BSA	SADDLE	NINER CUSTOM TR WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC
SEATPOST	NINER RDO SEAT POST, 400MM, NINER GRAPHIC	HANDLEBAR	NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
STEM	NINER RDO STEM, NINER GRAPHIC (XS/S/M- 60MM, L/XL- 70MM)	HEADSET	NINER INTEGRATED SHIS DESCRIPTION IS42/28.6\|IS52/40
GRIPS	NINER GRRRIPS L/O SOFT COMPOUND	APPROXIMATE WEIGHT	24.9 LBS
RIMS/WHEELS	DT SWISS XRC 1200 SPLINE, CARBON CLINCHER, 25MM INTERNAL	HUBS	DT SWISS 180, CENTERLOCK, WITH RATCHET EXP 36
SPOKES	DT AERO COMP STRAIGHT PULL

RKT 9 RDO 5-STAR SRAM X01 EAGLE Specifications:

Our 5-star SRAM X01 Eagle parts kit completes your premium RKT 9 RDO cross country build. With DT Swiss XRC 1501 wheels and a lightweight SRAM drivetrain, this is the classic racer's pick.

DT Swiss XRC 1501 SPLINE wheels
Niner RDO carbon components
FOX SC 34 Float Factory FIT 4 EVOL fork, 100mm with lockout

AVAILABLE FRAME SIZES	XS, SM, MD, LG, XL	AVAILABLE COLORS	HOT TAMALE/GLOSS CARBON OR GLOSS CARBON/SILVER
FRAME	NINER RDO CARBON FIBER, 100MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS	FORK	FOX 34 SC FLOAT FACTORY EVOL FIT4, 3 POSITION W/ ADJ, KASHIMA COAT, 100MM, 110X15MM, 44MM OFFSET
SHOCK	FOX FLOAT DPS FACTORY EVOL, W/ REMOTE L/O, KASHIMA COAT	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
FRONT WHEEL	DT SWISS XRC 1501 SPLINE, CENTERLOCK, 110X15MM	REAR WHEEL	DT SWISS XRC 1501 SPLINE, CENTERLOCK, 148X12MM, RATCHET EXP 36
FRONT TIRE	SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35	REAR TIRE	SCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
BRAKES	SRAM G2 RSC	BRAKE LEVERS	SRAM G2 RSC
BRAKE ROTORS	180/160 CENTERLINE X ROTORS	CHAIN	SRAM X01 EAGLE 12SP
FRONT SHIFTER	N/A	REAR SHIFTER	SRAM X01 EAGLE 12SP
FRONT DERAILLEUR	N/A	REAR DERAILLEUR	SRAM X01 EAGLE 12SP
CASSETTE	SRAM EAGLE XG 1295, 10-52T	CRANKSET	SRAM X1 EAGLE CARBON DUB 32T
BOTTOM BRACKET	SRAM DUB BSA	SADDLE	NINER CUSTOM TR WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC
SEATPOST	NINER RDO SEAT POST, 400MM, NINER GRAPHIC	HANDLEBAR	NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
STEM	NINER RDO STEM, NINER GRAPHIC (XS/S/M- 60MM, L/XL- 70MM)	HEADSET	NINER INTEGRATED SHIS DESCRIPTION IS42/28.6\|IS52/40
GRIPS	NINER GRRRIPS L/O SOFT COMPOUND	APPROXIMATE WEIGHT	25.2 LBS
RIMS/WHEELS	DT SWISS XRC 1501 SPLINE ONE, CARBON CLINCHER, 30MM INTERNAL	HUBS	DT SWISS 240 CENTERLOCK WITH RATCHET EXP 36
SPOKES	DT COMPETITION RACE STRAIGHT PULL

RKT 9 RDO 4-STAR SHIMANO XT Specifications:

This 4-Star Shimano XT 12-speed RKT 9 RDO is dressed for success with a proven Shimano XT drivetrain and DT Swiss XR 1700 Spline 25 wheels. No excuses - get out and ride!

DT Swiss XR 1700 SPLINE 25 wheels
Shimano XT 2-piston "race" brakes
FOX Float Factory suspension with Kashima coat

AVAILABLE FRAME SIZES	XS, SM, MD, LG, XL	AVAILABLE COLORS	HOT TAMALE/GLOSS CARBON OR GLOSS CARBON/SILVER
FRAME	NINER RDO CARBON FIBER, 100MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS	FORK	FOX 34 SC FLOAT FACTORY EVOL FIT4, 3 POSITION W/ ADJ, KASHIMA COAT, 100MM, 110X15MM, 44MM OFFSET
SHOCK	FOX FLOAT DPS FACTORY EVOL, W/ REMOTE L/O, KASHIMA COAT	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
FRONT WHEEL	DT SWISS XR 1700 SPLINE 25, CENTERLOCK, 110X15MM	REAR WHEEL	DT SWISS XR 1700 SPLINE 25, CENTERLOCK, 148X12MM
FRONT TIRE	SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35	REAR TIRE	SCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
BRAKES	SHIMANO XT M8100, METAL PAD W/ FIN	BRAKE LEVERS	SHIMANO XT M8100
BRAKE ROTORS	180/160 MT800 ROTORS	CHAIN	SHIMANO XT M8100 W/ QUICKLINK
FRONT SHIFTER	N/A	REAR SHIFTER	SHIMANO XT M8100 12SP I-SPEC EV
FRONT DERAILLEUR	N/A	REAR DERAILLEUR	SHIMANO XT M8100 SGS 12SP
CASSETTE	SHIMANO XT M8100 12SP, 10-51T	CRANKSET	RACEFACE NEXT R CARBON 12SP, 32T
BOTTOM BRACKET	RACEFACE BSA	SADDLE	NINER CUSTOM TR WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC
SEATPOST	NINER RDO SEAT POST, 400MM, NINER GRAPHIC	HANDLEBAR	NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
STEM	NINER RDO STEM, NINER GRAPHIC (XS/S/M- 60MM, L/XL- 70MM)	HEADSET	NINER INTEGRATED SHIS DESCRIPTION IS42/28.6\|IS52/40
GRIPS	NINER GRRRIPS L/O NYLON SOFT COMPOUND	APPROXIMATE WEIGHT	26.3 LBS
RIMS/WHEELS	DT SWISS XR 1700 SPLINE, ALUMINUM CLINCHER, 25MM INTERNAL	HUBS	DT SWISS 350 CENTERLOCK WITH RATCHET SYSTEM 36 SL
SPOKES	DT COMPETITION STRAIGHT PULL

3-STAR SRAM GX EAGLE AXS LTD Specifications:

The limited edition SRAM GX Eagle AXS 3-Star kit brings wireless electronic shifting to an affordable price level. All the high end benefits of our capable cross-country racing platform are fully optimized.

SRAM GX Eagle AXS Wireless shifting
Schwalbe Racing Ray and Racing Ralph tires
FOX SC 34 Float Factory FIT 4 EVOL fork, 100mm with lockout

AVAILABLE FRAME SIZES	XS, SM, MD, LG, XL	AVAILABLE COLORS	HOT TAMALE/GLOSS CARBON OR GLOSS CARBON/SILVER
FRAME	NINER RDO CARBON FIBER, 100MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS	FORK	FOX 34 SC FLOAT FACTORY EVOL FIT4, 3 POSITION W/ ADJ, KASHIMA COAT, 100MM, 110X15MM, 44MM OFFSET
SHOCK	FOX FLOAT DPS FACTORY EVOL 3 POSITION	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
FRONT WHEEL	DT SWISS X1900 SPLINE 25, CENTERLOCK, 110X15MM	REAR WHEEL	DT SWISS X1900 SPLINE 25, CENTERLOCK 148X12MM
FRONT TIRE	SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35	REAR TIRE	SCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
BRAKES	SRAM G2 R	BRAKE LEVERS	SRAM G2 R
BRAKE ROTORS	180/160MM CENTERLINE X	CHAIN	SRAM GX EAGLE 12SP
FRONT SHIFTER	N/A	REAR SHIFTER	SRAM GX EAGLE AXS 12SP
FRONT DERAILLEUR	N/A	REAR DERAILLEUR	SRAM GX EAGLE AXS 12SP WITH BATTERY COVER
CASSETTE	SRAM EAGLE XG 1275, 10-52T	CRANKSET	SRAM DESCENDANT 7K EAGLE DUB 32T
BOTTOM BRACKET	SRAM DUB BSA	SADDLE	NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC
SEATPOST	NINER CARBON SEAT POST, 4000MM, NINER GRAPHIC	HANDLEBAR	NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
STEM	NINER ALLOY STEM, NINER GRAPHIC (XS/S/M- 60MM, L/XL- 70MM)	HEADSET	NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6\|ZS56/40
GRIPS	NINER GRRRIPS L/O NYLON SOFT COMPOUND	APPROXIMATE WEIGHT	27.3 LBS
RIMS/WHEELS	DT SWISS X 1900 SPLINE, ALUMINUM CLINCHER, 25MM INTERNAL	HUBS	DT SWISS 370 CENTERLOCK, WITH RATCHET SYSTEM 36 LN
SPOKES	DT CHAMPION STRAIGHT PULL

RKT 9 RDO 3-STAR SRAM GX EAGLE Specifications:

Expect the best from our popular 3-Star GX Eagle build kit. Mated to the RKT 9 RDO frame and FOX Float Factory suspension, this is the perfect race rig at an attainable price

DT Swiss X1900 SPLINE wheels
Lightweight, reliable SRAM GX Eagle drivetrain
FOX SC 34 Float Factory FIT 4 EVOL fork, 100mm with lockout

AVAILABLE FRAME SIZES	XS, SM, MD, LG, XL	AVAILABLE COLORS	HOT TAMALE/GLOSS CARBON OR GLOSS CARBON/SILVER
FRAME	NINER RDO CARBON FIBER, 100MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS	FORK	FOX 34 SC FLOAT FACTORY EVOL FIT4, 3 POSITION W/ ADJ, KASHIMA COAT, 100MM, 110X15MM, 44MM OFFSET
SHOCK	FOX FLOAT DPS FACTORY EVOL 3 POSITION	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
FRONT WHEEL	DT SWISS X1900 SPLINE 25, CENTERLOCK, 110X15MM	REAR WHEEL	DT SWISS X1900 SPLINE 25, CENTERLOCK 148X12MM
FRONT TIRE	SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35	REAR TIRE	SCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
BRAKES	SRAM G2 R	BRAKE LEVERS	SRAM G2 R
BRAKE ROTORS	180/160MM CENTERLINE X	CHAIN	SRAM GX EAGLE 12SP
FRONT SHIFTER	N/A	REAR SHIFTER	SRAM GX EAGLE 12 SP
FRONT DERAILLEUR	N/A	REAR DERAILLEUR	SRAM GX EAGLE 12SP
CASSETTE	SRAM EAGLE XG 1275, 10-52T	CRANKSET	SRAM DESCENDANT 7K EAGLE DUB 32T
BOTTOM BRACKET	SRAM DUB BSA	SADDLE	NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC
SEATPOST	NINER CARBON SEAT POST, 4000MM, NINER GRAPHIC	HANDLEBAR	NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
STEM	NINER ALLOY STEM, NINER GRAPHIC (XS/S/M- 60MM, L/XL- 70MM)	HEADSET	NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6\|ZS56/40
GRIPS	NINER GRRRIPS L/O NYLON SOFT COMPOUND	APPROXIMATE WEIGHT	27.3 LBS
RIMS/WHEELS	DT SWISS X 1900 SPLINE, ALUMINUM CLINCHER, 25MM INTERNAL	HUBS	DT SWISS 370 CENTERLOCK, WITH RATCHET SYSTEM 36 LN
SPOKES	DT CHAMPION STRAIGHT PULL

RKT 9 RDO 2-STAR SRAM SX EAGLE Specifications:

Hit the trail without a hit to your wallet. Thanks to SRAM's outstanding SX Eagle drivetrain and our 2-star build kit, we extract every ounce of RKT 9 RDO performance at an affordable price level.

Niner alloy wheels, 25mm inner width
SRAM Level brakes
FOX 34 Float Rhythm GRIP EVOL fork, 100mm travel

AVAILABLE FRAME SIZES	XS, SM, MD, LG, XL	AVAILABLE COLORS	HOT TAMALE/GLOSS CARBON OR GLOSS CARBON/SILVER
FRAME	NINER RDO CARBON FIBER, 100MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS	FORK	FOX 34 FLOAT RHYTHM GRIP EVOL, SWEEP ADJUST, 100MM, 110X15MM, 44MM OFFSET
SHOCK	FOX FLOAT DPS PERFORMANCE EVOL 3 POSITION	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
FRONT WHEEL	NINER ALLOY, 25MM INNER WIDTH, 110X15MM	REAR WHEEL	NINER ALLOY, 25MM INNER WIDTH, 148X12MM
FRONT TIRE	SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35	REAR TIRE	SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
BRAKES	SRAM LEVEL	BRAKE LEVERS	SRAM LEVEL
BRAKE ROTORS	180/160MM G2CS ROTORS	CHAIN	SRAM SX EAGLE 12SP
FRONT SHIFTER	N/A	REAR SHIFTER	SRAM SX EAGLE 12SP
FRONT DERAILLEUR	N/A	REAR DERAILLEUR	SRAM SX EAGLE 12SP
CASSETTE	SRAM PG 1210 11-50T	CRANKSET	SRAM X1 1K EAGLE DUB, 32T
BOTTOM BRACKET	SRAM DUB BSA	SADDLE	NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC
SEATPOST	NINER ALLOY SEAT POST, 400MM, NINER GRAPHIC	HANDLEBAR	NINER FLAT TOP ALLOY, 780MM, NINER GRAPHIC
STEM	NINER ALLOY STEM, NINER GRAPHIC (XS/S/M- 60MM, L/XL- 70MM)	HEADSET	NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6\|ZS56/40
GRIPS	NINER GRRRIPS L/O NYLON SOFT COMPOUND	APPROXIMATE WEIGHT	28.5 LBS
RIMS/WHEELS	NINER ALLOY, ALUMINUM CLINCHER, 25MM INTERNAL WIDTH	HUBS	NINER BOOST, 6-BOLT
SPOKES

TECHNICAL SPECIFICATIONS:

FRAME FITTINGS AND MOUNTS	TWO BOTTLE CAGE MOUNTS PLUS ACCESSORY STORAGE MOUNTS ON TOP TUBE	REAR SUSPENSION TRAVEL	100MM
MAXIMUM FRONT SUSPENSION	120MM	FORK OFFSET	44MM
SHOCK SIZE	165X40MM	SHOCK MOUNTING HARDWARE	UPPER – M10 X 54 TRUNNION; LOWER M8 X 25MM
SUGGESTED SHOCK SAG	25% - MOVES THE O-RING 9.5MM DOWN THE SHAFT	SEATPOST SIZE	30.9
SEAT COLLAR SIZE	34.9	CABLE ROUTING	INTERNAL, FULL SLEEVE GUIDES; DI2 COMPATIBLE
FRONT DERAILLEUR	S3/ LOW DIRECT MOUNT FRONT DERAILLEUR	HEADSET SIZE	1.125" X 1.5" TAPERED INTEGRATED (CAMPY STYLE) HEAD TUBE, HEADSET INCLUDED, CANE CREEK DESCRIPTION: IS42/28.6 \| IS52/40
PIVOT BEARING SPECS	SEALED CARTRIDGE ENDURO MAX BLACK OXIDE BEARINGS - (8X) 26X17X5	CHAINRING COMPATIBILITY	SINGLE, 38T MAX
MAXIMUM CHAINRING SIZE	1X MAX CHAIN RING SIZE = 38T - BOOST CHAINRING RECOMMENDED	Q-FACTOR	168MM
ISCG COMPATIBILITY	NO	BOTTOM BRACKET TYPE	BSA THREADED
BIOCENTRIC COMPATIBLE?	NO	BRAKE MOUNT TYPE	POST MOUNT
MAXIMUM REAR ROTOR SIZE	180MM	REAR WHEEL SPACING	148X12MM
REAR WHEEL THROUGH-AXLE SPEC	M12X1.75PX182L	FRONT WHEEL AXLE SPACING	110X15MM
FRONT WHEEL THROUGH-AXLE SPEC		MAX TIRE SIZE	29 X 2.5

We make every effort to publish accurate build specs, however Niner Bikes reserves the right to make substitutions or changes to bike assembly specification at any time without notice or warning. Product images may not reflect actual specification. Minor variance in color may be visible including fork decal color. Published approximate weights are for size medium (53cm) and may vary by +/- 15% due to manufacturing tolerances.
