State Bicycle 4130 Trail Mountain Bike Raw Phosphate | Steel Hardtail

Name: State Bicycle Co. 4130 Trail Mountain Bike Raw Phosphate | 4130 Chromoly 12-Speed Hardtail
Brand: State Bicycle Co.
SKU: 731416172752
Price: 1499.99 USD
Availability: InStock

4130 Trail Mountain Bike Raw Phosphate, drive side three quarter view

Rear wheel of the 4130 Trail with the 11 to 50T cassette, Shimano Deore derailleur and WTB Trailboss gum wall tire

Front wheel of the 4130 Trail with the RockShox Psylo Silver RC fork lower and WTB Trailboss 29 x 2.4 inch tire

4130 Trail Mountain Bike Raw Phosphate, front three quarter view

Head on view of the 4130 Trail showing the 770mm low rise handlebar and the RockShox Psylo fork

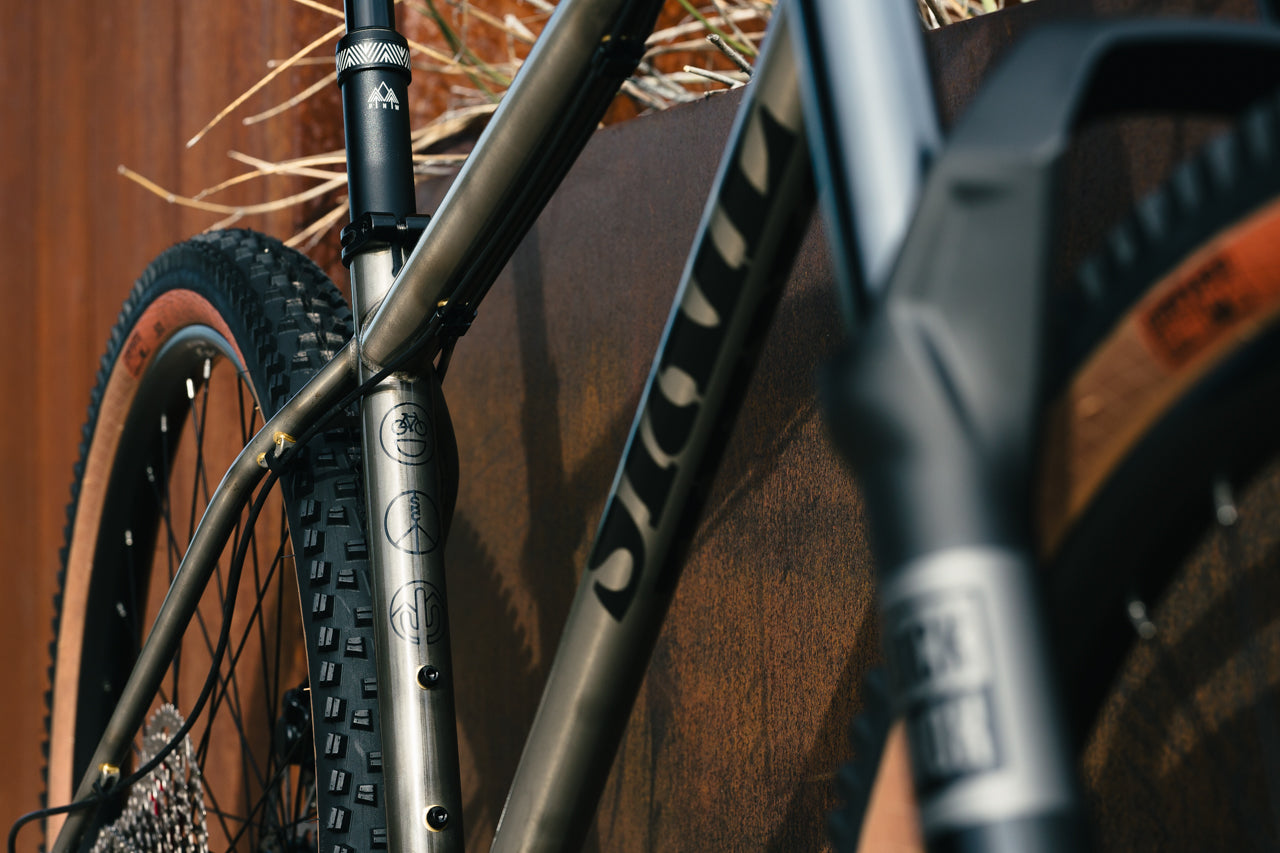

Rear half of the 4130 Trail showing the seat tube, seatpost and rear wheel

Saddle and 31.6mm seatpost of the 4130 Trail with the quick release collar

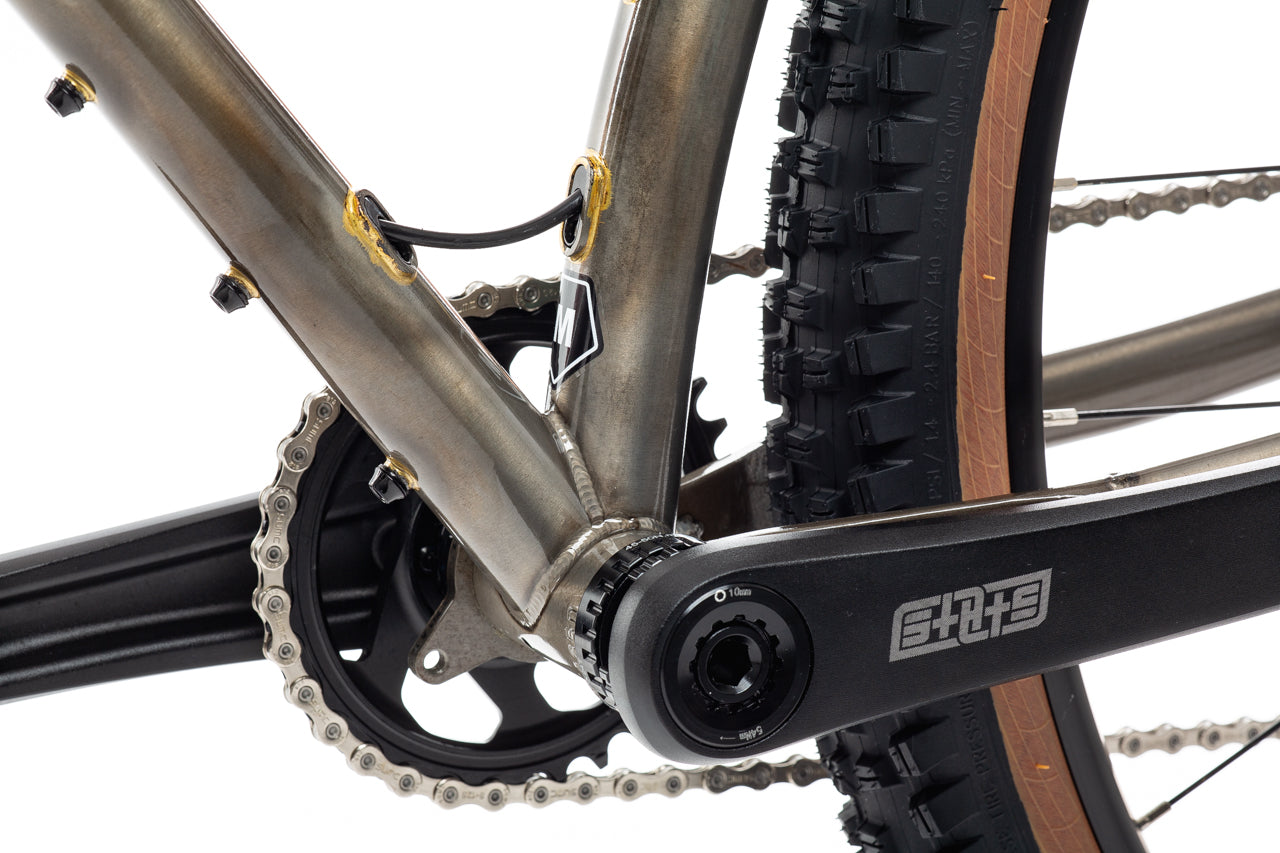

Bottom bracket junction of the 4130 Trail with the State 32T narrow wide chainring and 73mm threaded shell

RockShox Psylo Silver RC fork crown and 35mm stanchions on the 4130 Trail against a corten steel wall

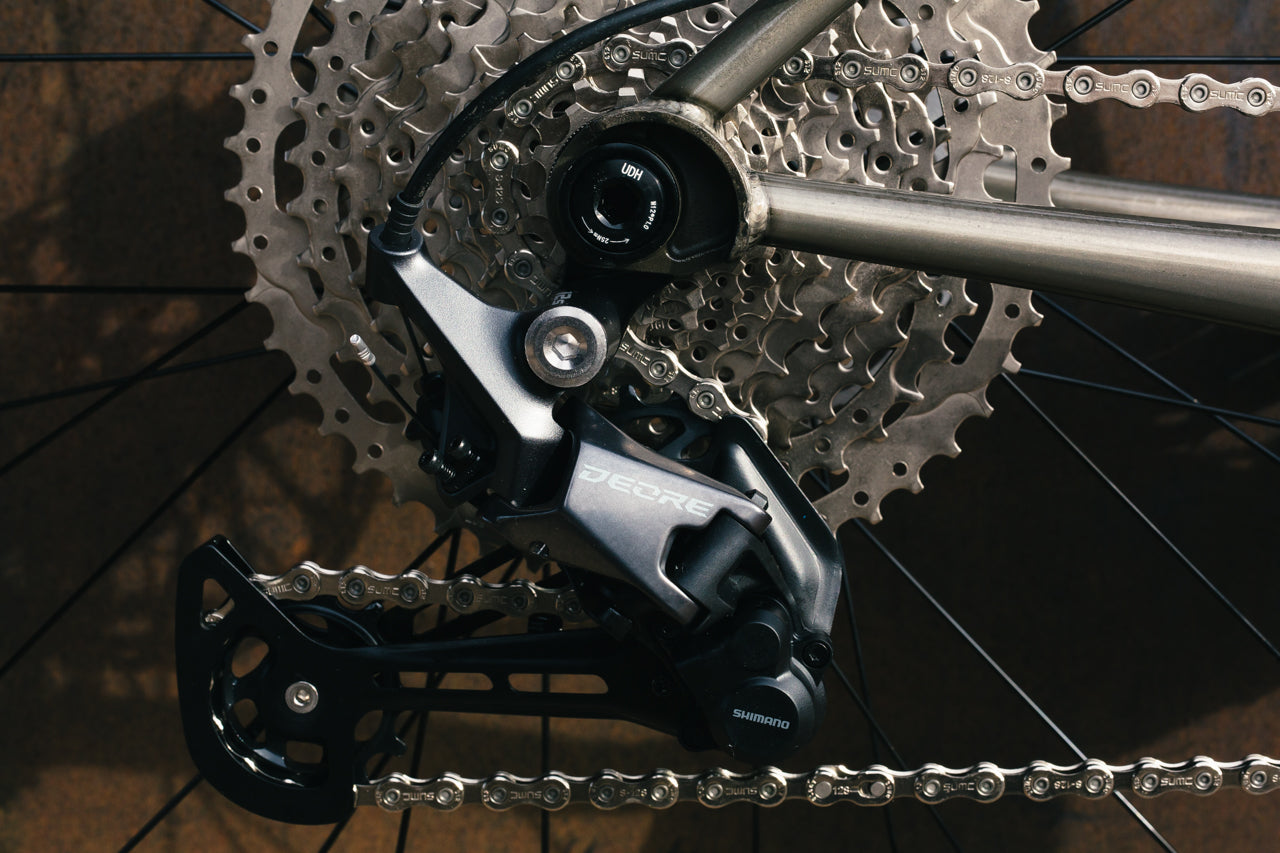

Shimano Deore M6100 rear derailleur on the 4130 Trail&

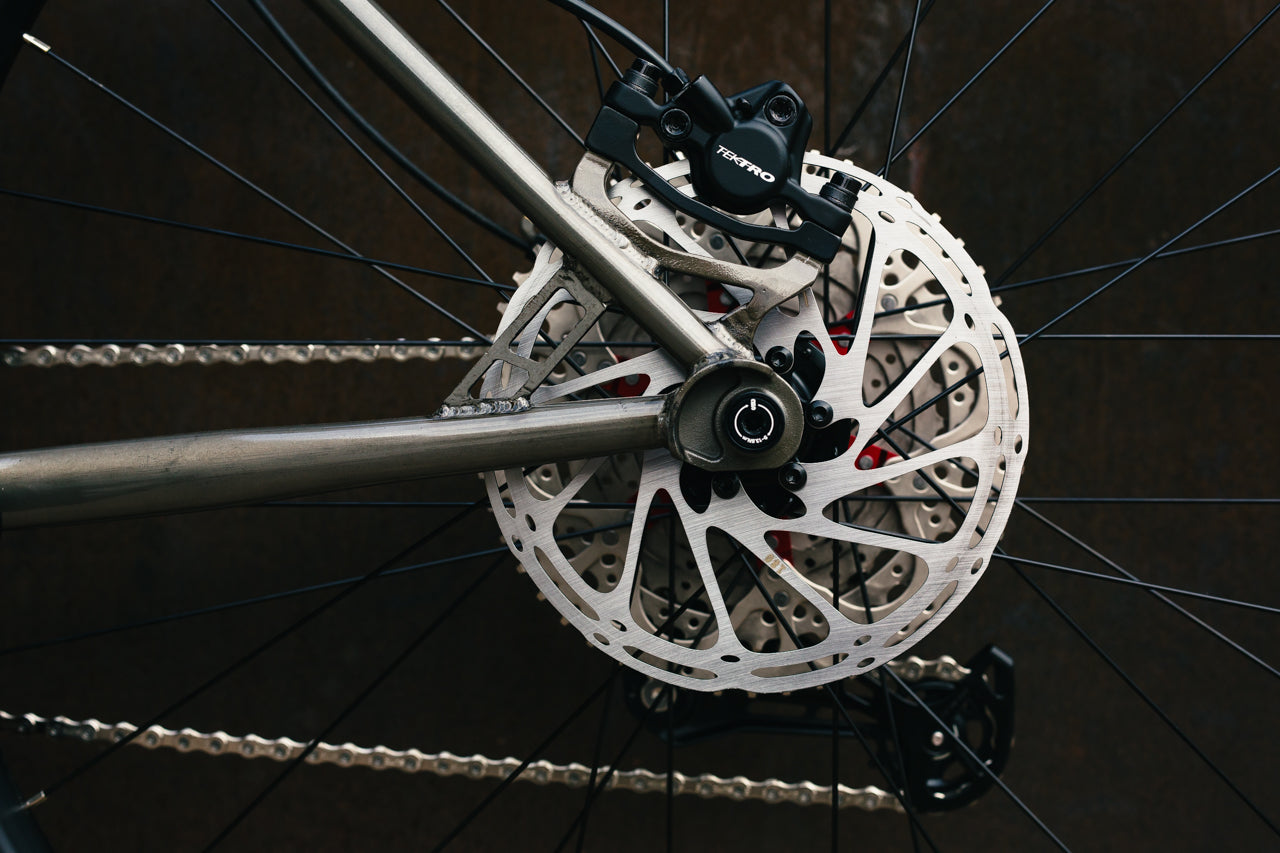

Tektro hydraulic disc brake caliper and 180mm rotor on the 4130 Trail

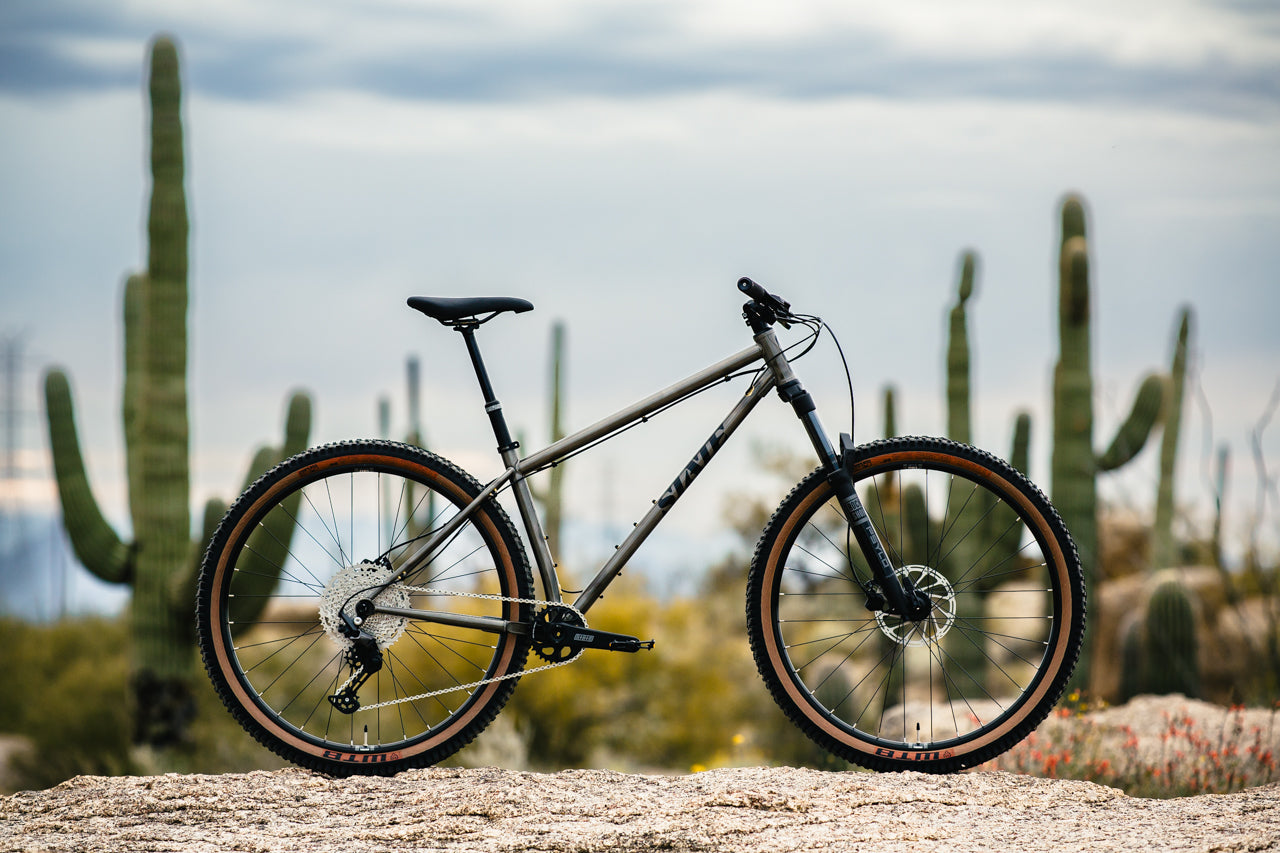

4130 Trail Mountain Bike Raw Phosphate among saguaro cactus in the Sonoran desert

Authorized Retailer Section - Header Only

Authorized Retailer

Authorized Retailer Section - Trust List & Modal

Fast & Free Shipping Contiguous U.S. Only (Excludes HI, AK, PR)

Easy Returns

Price Match Guarantee

No Sales Tax Outside NY

Flexible Financing Shop Pay

Pay over time. No impact to your credit score to apply.

Authorized Retailer Section - Phone Section Only

Talk To A Specialist: 718.808.6415 Mon - Fri, 9AM to 5PM EST

$1,499.99

Free Shipping For Order $200+

Limited Availability
Inventory on the way

Size

XS / S - 38cm - ( Riders 5'1" - 5'5")

S/M - 41cm - ( Riders 5'5" - 5'10")

M/L - 43cm - ( Riders 5'10" - 6'1")

X-Large - 46cm - (Riders 6'1" - 6'5")

CUSTOMIZE YOUR RIDE

Upgrades

PNW Range Dropper & Lever Bundle
PNW Range dropper post and lever bundle. Pinkbike 2024 Value Product of the Year. Avail...
$199.99
SRAM Transmission Eagle AXS - 12-Speed Wireless Drivetrain Upgrade
SRAM Eagle AXS Transmission is the drivetrain that quietly rewrote the rules: fully wir...
$499.99

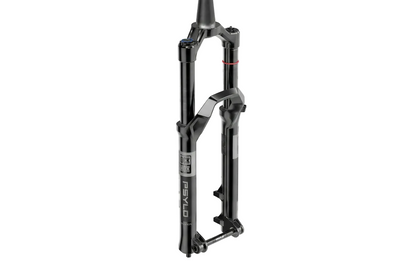

RockShox Psylo Silver RC Suspension Fork — 130mm (35mm)
The RockShox Psylo Silver RC is the fork that brought genuine trail-fork performance do...
$385.00

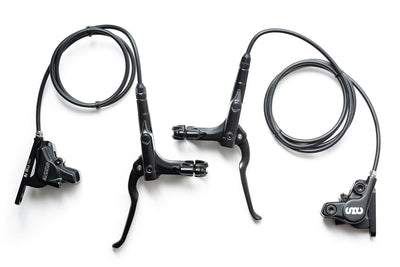

State Bicycle Co. - All-Road Hydraulic Disc Brake Set (For Flat Bars)
A complete front-and-rear hydraulic disc brake set for flat-bar builds, using a mineral...
$89.99
State Bicycle Co - Alloy Platform Pedals (2 Colors)
Durable wide-platform alloy pedals that pair well with foot retention straps for fixed ...
$24.99
Fizik Terra Argo X7 Saddle – 150mm
The Fizik Terra Argo X7 is a short-nose gravel saddle with a full central cutout for pr...
$89.99
All-Road Saddle
Purpose-built for gravel and all-road riding, this polyurethane-covered saddle with ste...
$34.99
State Bicycle Co. - "SBC Monogram" - 27.2mm / 350mm Seat Post
SBC Monogram 27.2mm alloy seatpost, 350mm long. Available in black or silver. A clean, ...
$29.99

Quantity

[{"id":44068050075722,"title":"XS \/ S - 38cm - ( Riders 5'1\" - 5'5\")","option1":"XS \/ S - 38cm - ( Riders 5'1\" - 5'5\")","option2":null,"option3":null,"sku":"731416172752","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"State Bicycle Co. 4130 Trail Mountain Bike Raw Phosphate | 4130 Chromoly 12-Speed Hardtail - XS \/ S - 38cm - ( Riders 5'1\" - 5'5\")","public_title":"XS \/ S - 38cm - ( Riders 5'1\" - 5'5\")","options":["XS \/ S - 38cm - ( Riders 5'1\" - 5'5\")"],"price":149999,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44068050108490,"title":"S\/M -  41cm - ( Riders 5'5\" - 5'10\")","option1":"S\/M -  41cm - ( Riders 5'5\" - 5'10\")","option2":null,"option3":null,"sku":"731416172769","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"State Bicycle Co. 4130 Trail Mountain Bike Raw Phosphate | 4130 Chromoly 12-Speed Hardtail - S\/M -  41cm - ( Riders 5'5\" - 5'10\")","public_title":"S\/M -  41cm - ( Riders 5'5\" - 5'10\")","options":["S\/M -  41cm - ( Riders 5'5\" - 5'10\")"],"price":149999,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44068050141258,"title":"M\/L - 43cm - ( Riders 5'10\" - 6'1\")","option1":"M\/L - 43cm - ( Riders 5'10\" - 6'1\")","option2":null,"option3":null,"sku":"731416172776","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"State Bicycle Co. 4130 Trail Mountain Bike Raw Phosphate | 4130 Chromoly 12-Speed Hardtail - M\/L - 43cm - ( Riders 5'10\" - 6'1\")","public_title":"M\/L - 43cm - ( Riders 5'10\" - 6'1\")","options":["M\/L - 43cm - ( Riders 5'10\" - 6'1\")"],"price":149999,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44068050174026,"title":"X-Large - 46cm - (Riders 6'1\" - 6'5\")","option1":"X-Large - 46cm - (Riders 6'1\" - 6'5\")","option2":null,"option3":null,"sku":"731416172813","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"State Bicycle Co. 4130 Trail Mountain Bike Raw Phosphate | 4130 Chromoly 12-Speed Hardtail - X-Large - 46cm - (Riders 6'1\" - 6'5\")","public_title":"X-Large - 46cm - (Riders 6'1\" - 6'5\")","options":["X-Large - 46cm - (Riders 6'1\" - 6'5\")"],"price":149999,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Protected Payment Logos

30 days to decide

Every State bike can come back within 30 days of purchase. It needs to be like new, unridden, and in its original packaging.

Not sure on size?

Call before you order and we will walk you through the fit chart. It is the question we get asked most.

Call 718.808.6415

Shipping

Belcopia is committed to deliver the product in perfect condition at the address indicated by the customer in the checkout page. In order to optimize delivery, we thank the customer for indicating an address in which the order can be delivered within normal business hours.

Returns

Your money means nothing to us if you are unhappy with your purchase with us. Customer satisfaction with our products is important to us, which is why we do returns and refunds, if the customer is not satisfied with our products. Simply send us an email, contact us on live chat, or if it can’t wait, call us and we’ll make things right.

Return windows and terms are set by each brand. Most purchases made on our website can be returned after delivery — see our Brand Return Terms for the window and conditions that apply to your bike. In most cases the buyer is responsible for the cost of returning the product.

If you have any questions, please view our Shipping Policy page or Return Policy page.

Give us a call at (718) 808-6415, or email: support@belcopia.com.

We'll Match or BEAT that price!

Prepare the link to the same exact product on their store that you want on our store and give us a call (718) 808-6415

Full Manufacturer Backing: State Bicycle Co.
State Bicycle Co. builds machines meant to be ridden hard. As an authorized retailer, every bike we sell is backed by State’s "ProBuild" warranty standards, ensuring your rig is protected against manufacturing defects.

Coverage Breakdown:

5-Year Frame & Fork: Coverage for Steel and Aluminum frames/forks against manufacturing defects.
18-Month eBike System: Protection for the motor, electronics, and battery suite.
1-Year Components: Coverage for non-consumable parts (cranks, pedals, bars, wheels, etc.).
Carbon Advantage: Professionally built carbon frames receive an extended 2-year warranty.

The ProBuild Requirement
To ensure peak performance and validate your warranty, State Bicycle Co. requires proof of professional assembly by a certified mechanic. Bikes must be registered within 30 days of delivery.

Hassle-Free Registration
Don't sweat the paperwork. For our signature service, simply email your proof of assembly and order details to support@belcopia.com and our team will handle the official registration with State for you.

FrameDouble butted 4130 chromoly steel with a UDH dropout and a 73mm threaded bottom bracket.

GearingShimano Deore 1x12, a 32T ring with an 11 to 50T cassette.

TiresWTB Trailboss TCS, 29 x 2.4 inch, tubeless ready.

BrakesTektro HD-M275 hydraulic disc, 180mm rotors front and rear.

Weight32 lb 3 oz on an XS/S, up to 32 lb 11 oz on an XL. Complete bike.

Compare Fit & size Specification What's in the Box



Highlight differences

Fit

Find your size

Sizes overlap on purpose. Between two, the smaller is the more playful bike and the larger is the more stable one at speed. Every size shares a 426.5mm chain stay, a 65 degree head angle and a 44mm fork offset, so the handling stays consistent across the range.

4130 Trail Overview

The State Bicycle Co. 4130 Trail is a double butted chromoly hardtail with a 65 degree head angle, 130mm of RockShox travel and a Shimano Deore 1x12 drivetrain, at $1,499.99. The number that matters most is the fork. At this price a hardtail normally gets a budget coil fork on 30mm stanchions. This one runs a RockShox Psylo Silver RC with 35mm uppers, a Solo Air spring and a Motion Control damper.

The drivetrain is Deore M6100, a 32T ring against an 11 to 50T cassette. That is 454 percent of range from one shifter, with a low gear of 0.64 to 1 for steep loose climbing and nothing to cross chain. The frame carries a universal derailleur hanger, internal dropper routing in a 31.6mm seat tube, a threaded bottom bracket and three bottle mounts on the down tube.

Skip it if you want full suspension or a bike that is light. This is a steel hardtail and it weighs 32 pounds. What you get for that is a frame that shrugs off rocks, a fork that works, and a parts list you can replace anywhere.

Standards you can build on

Every interface on this bike is a current standard. A universal derailleur hanger, a 73mm BSA threaded bottom bracket, a 31.6mm seat tube with internal routing, Boost 110 and 148mm hub spacing, and a 35mm bar clamp. Nothing here is proprietary, so the upgrade path is open and a replacement part is a part any shop already stocks.

Questions before buying? Call 718.808.6415, Monday to Friday.

DOUBLE BUTTED CHROMOLY, AND A UDH

The frame is double butted 4130 chromoly. Thicker at the welds where the load goes, thinner in the middle of the tube where it does not, which is how a steel frame stays strong without turning into a girder. Steel also bends rather than cracks, so a rock strike that would write off a light aluminium frame usually just leaves a mark.

The dropout is a Universal Derailleur Hanger. That means the hanger is the same part on this bike as on a few hundred other current frames, so a shop in a strange town can hand you one off the shelf instead of ordering a shape only State sells. The bottom bracket is a 73mm BSA thread, which does not creak and unscrews with a tool every shop owns.

130MM OF ROCKSHOX PSYLO

The fork is where cheap hardtails are usually cheap. A coil spring, 30mm legs and a damper that is really just a hole. The 4130 Trail gets a RockShox Psylo Silver RC instead: 130mm of travel on 35mm upper tubes, which is the diameter that stops the front end flexing when you brake hard into a rocky corner.

Inside it is a Solo Air spring you set with a shock pump to your own weight, and a Motion Control damper with an external compression adjuster. The steerer ships uncut so a shop can set your bar height before trimming it. Axle to crown is 550mm with a 44mm offset, on a 65 degree head angle.

Shimano Deore 1x12

M6100 shifter and rear derailleur, a 32T ring and an 11 to 50T cassette. 454 percent of range, one lever.

WTB Trailboss 2.4

Tubeless ready 29 x 2.4 inch on WTB i30 rims with Boost hubs. Valves are in the box.

Tektro Hydraulic Discs

HD-M275 two piston calipers on 180mm rotors, front and rear. Full hydraulic, not cable actuated.

770mm Low Rise Bar

A 35mm clamp, 12mm rise and 20mm of backsweep on a short forged stem. Wide enough to steer with.

Dropper Ready

A 31.6mm seat tube with internal routing. The stock post has a quick release so you can drop it by hand.

Frame	Double butted 4130 chromoly steel, UDH dropout, Boost 148mm thru axle, internal dropper routing, three bottle mounts
Fork	RockShox Psylo Silver RC, 130mm travel, 35mm stanchions, Solo Air with Motion Control damper, 550mm axle to crown
Headset	SBC 1 1/8 inch, 44 x 39.8mm, 44mm steel, sealed bearing
Bottom Bracket	73mm BSA threaded, 29mm diameter
Crankset	SBC 32T narrow wide, 29mm DUB spindle, 165mm arms, direct mount
Cassette	11 to 50T, 12 speed
Chain	SUMC, 12 speed
Shifter	Shimano Deore M6100, 12 speed
Rear Derailleur	Shimano Deore M6100, 12 speed
Brakes	Tektro HD-M275 hydraulic disc, 2 piston, 180mm rotors front and rear
Rims	WTB i30 TCS 29 inch tubeless ready, 32h, tubeless valves included
Spokes	Stainless steel, 14 gauge
Hubs	Sealed bearing, Boost 15 x 110mm front / 12 x 148mm rear
Tires	WTB Trailboss TCS, 29 x 2.4 inch, tubeless ready
Handlebar	SBC low rise alloy, 770mm width, 35mm clamp, 12mm rise, 20mm backsweep
Stem	SBC 3D forged alloy, 35mm clamp
Seatpost	SBC 31.6mm x 350mm, quick release collar
Saddle	Polyurethane with steel rails
Pedals	Not included
Max Tire Clearance	Frame 29 x 2.6 inch or 27.5 x 3.0 inch, fork 29 x 2.6 inch
Weight	32 lb 3 oz (XS/S) to 32 lb 11 oz (XL), complete bike
— Frame geometry —	XS/S / S/M / M/L / XL
Chain Stay	426.5mm / 426.5mm / 426.5mm / 426.5mm
Fork Offset	44mm / 44mm / 44mm / 44mm
Head Tube	100mm / 110mm / 120mm / 130mm
Head Tube Angle	65° / 65° / 65° / 65°
Seat Tube	380mm / 405mm / 430mm / 460mm
Seat Tube Angle	74.5° / 74.4° / 74.4° / 74.4°
Top Tube (Effective)	594.7mm / 622.6mm / 645.5mm / 673.3mm
— Rider height —	5'1" - 5'5" / 5'5" - 5'10" / 5'10" - 6'1" / 6'1" - 6'5"

WHAT'S IN THE BOX

4130 Trail Complete Bike

Ships partially unassembled. It needs the crank and front wheel fitted, the fork set up and the steerer cut to your height, plus derailleur indexing. State recommends professional assembly and so do we.

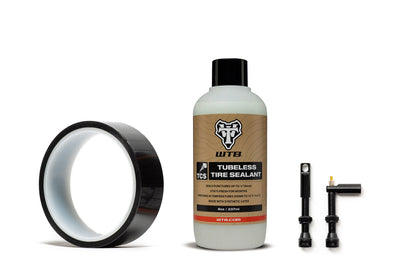

Tubeless Valves

The WTB i30 rims and Trailboss tires are both tubeless ready and the valves are in the box. Sealant is not included.

Belcopia Support

We are an authorized State Bicycle Co. dealer, so every bike is backed by State’s own warranty. Questions before or after the sale, call 718.808.6415, Monday to Friday.

Questions before buying

What size 4130 Trail should I get?

State lists the XS/S for riders 5 foot 1 to 5 foot 5, the S/M for 5 foot 5 to 5 foot 10, the M/L for 5 foot 10 to 6 foot 1, and the XL for 6 foot 1 to 6 foot 5. Sizes overlap on purpose. Between two, the smaller is the more playful bike and the larger is the more stable one at speed.

Is the bike in the photos the bike that ships?

The white background studio photos are. Some of the outdoor photos are State's own press shots of a bike fitted with Industry Nine Sector Carbon wheels and a Seekrun S7 wireless dropper, which are paid upgrades and are not included. What ships is WTB i30 wheels on Boost hubs and a 31.6mm SBC seatpost with a quick release collar.

What is a UDH and why does it matter?

A Universal Derailleur Hanger is the industry standard replacement for the small aluminium bracket the rear derailleur bolts to. It is the same part across a few hundred current frames, so if you bend one, any shop that stocks UDH hangers can get you riding the same day instead of ordering a State specific shape.

Can I fit a dropper post?

Yes. The seat tube is 31.6mm with internal routing already in the frame, so a cabled dropper routes through it and a wireless post needs no routing at all. State sizes dropper travel by frame: 125mm on an XS/S, 150mm on an S/M and M/L, and 175mm on an XL.

Will wider or smaller wheels fit?

The frame clears a 29 inch tire up to 2.6 inches, or a 27.5 inch tire up to 3.0 inches. The fork clears a 29 inch tire up to 2.6 inches and State does not rate it for 27.5. It ships on 29 x 2.4 inch WTB Trailboss.

How much does the 4130 Trail weigh?

State lists complete bike weights of 32 lb 3 oz on an XS/S, 32 lb 4 oz on an S/M, 32 lb 8 oz on an M/L and 32 lb 11 oz on an XL. The frame alone is about 6 lb 11 oz and the fork is 6 lb 3 oz with an uncut steerer.
