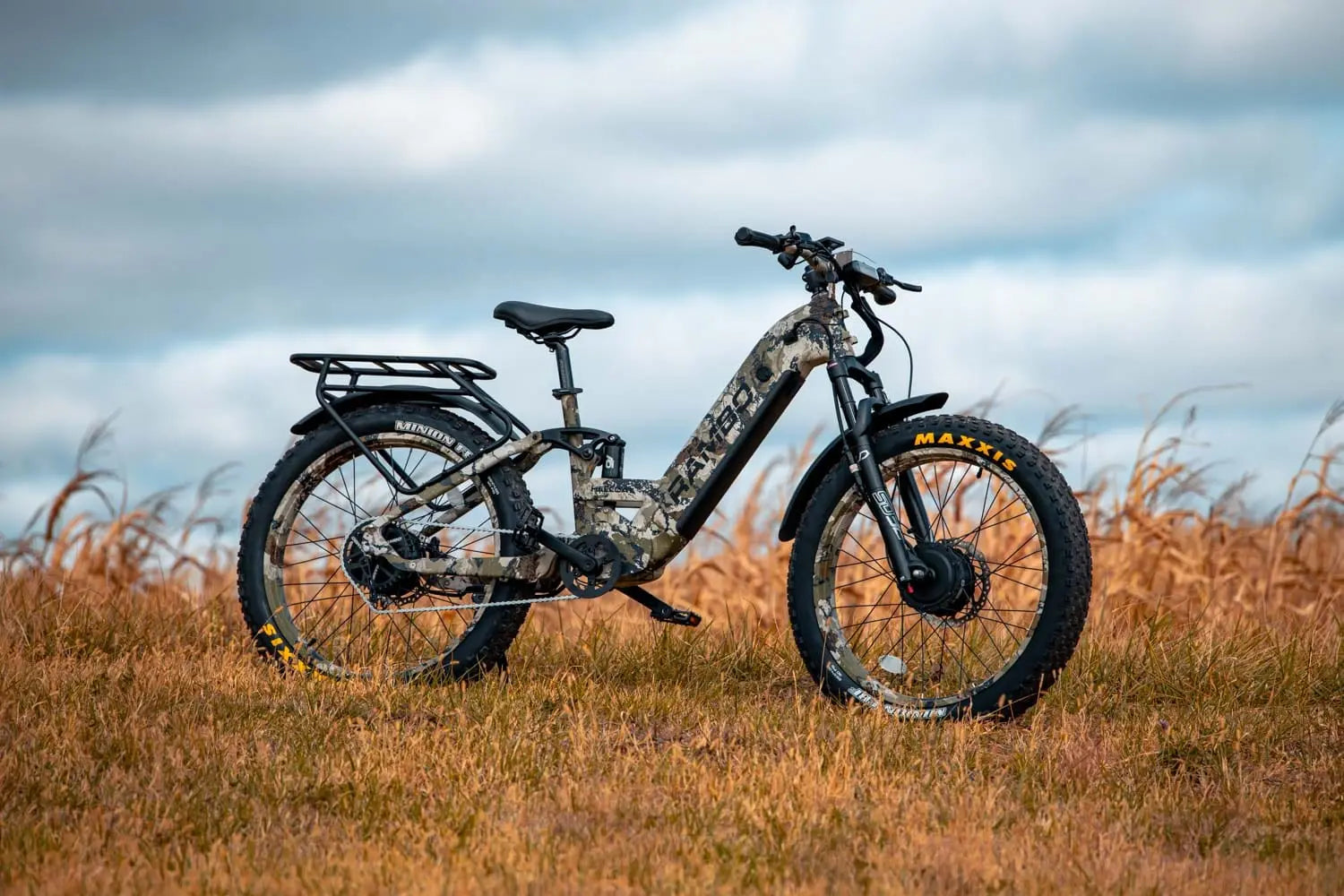

Hellcat 2.0 FS Overview
Why choose between comfort, accessibility, and traction when you can have it all? The Hellcat 2.0 FS is engineered for the rider who refuses to compromise. It combines the three most sought after features into one dominant machine: a true full suspension frame that smooths out the roughest trails, an easy access step through design, and a 2000W all wheel drive system for unstoppable traction.
Whether you are gliding over rocky terrain, navigating deep mud, or simply enjoying the most comfortable ride possible, the Hellcat delivers. It is the do it all bike for the hunter who wants the best of every world, with no sacrifices.
INSANE POWER AND TRACTION
The Hellcat's defining feature is its power plant. Two 1000W Bafang hub motors deliver a combined 2000W of nominal power and 2500W at peak, with 180Nm of torque. This dual motor system provides relentless all wheel drive traction, pulling and pushing you through the most extreme conditions.
Need more power? Toggle between front, rear, or AWD depending on your terrain. Running one motor stretches the battery on easy ground. Running both puts the full 2000W down when the climb gets steep or the mud gets deep.

EASY ON. FULL SUSPENSION.
A low step through frame makes mounting and dismounting effortless, with no tall top tube to clear in waders or with a pack on. Then a KS A5RE rear shock and a Uding air fork with 120mm of travel soak up the punishment a fat tire bike takes on a real trail.

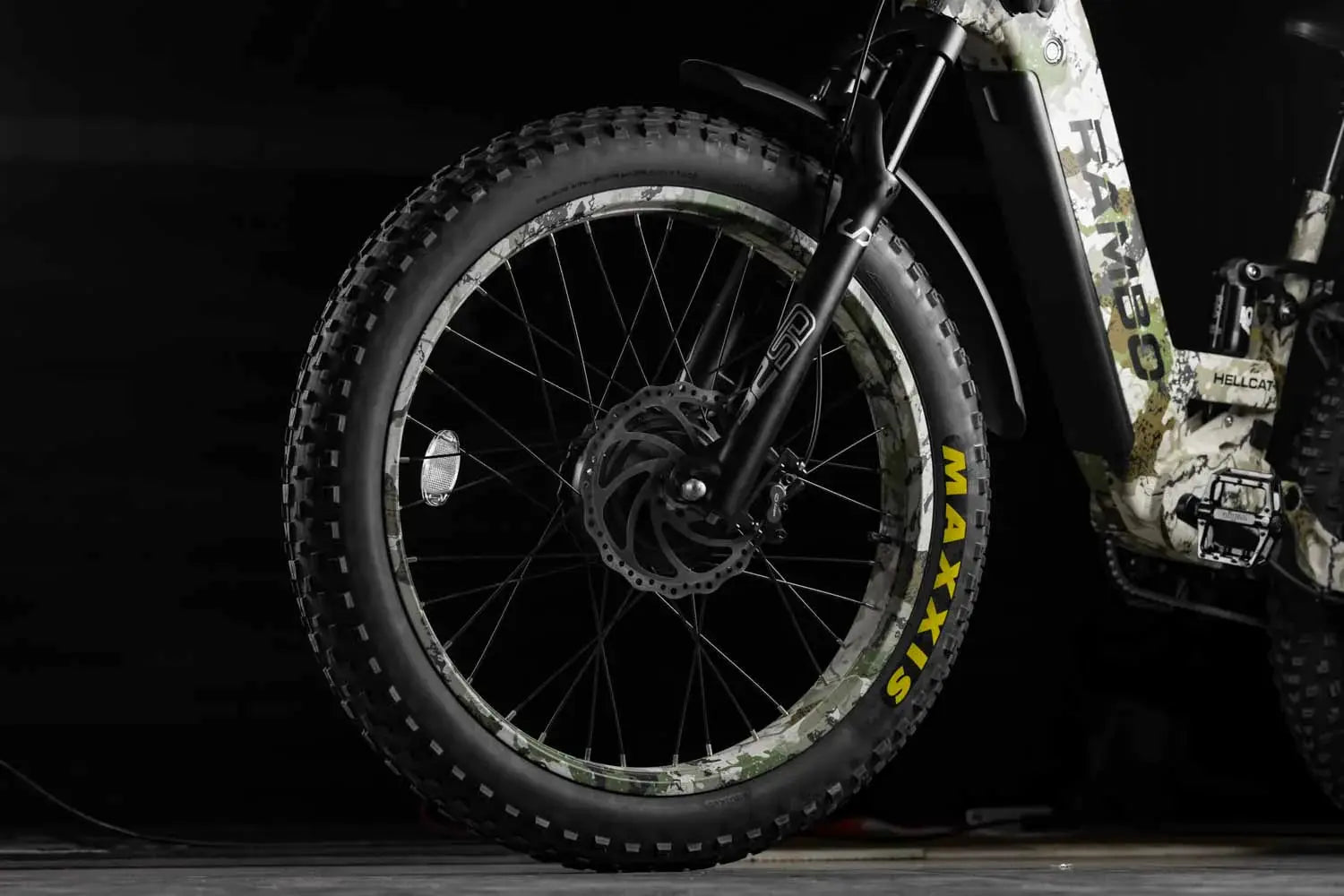

It rolls on Maxxis Minion 26 x 4.0 aggressive tread tires, with the Rambo Storm LED light bar fitted as standard. Toggle it between white and green for the level of stealth the hunt calls for.


Dual 1000W hub motors
Two Bafang 1000W hub motors, front and rear, for 2000W nominal and 2500W peak with 180Nm of torque.

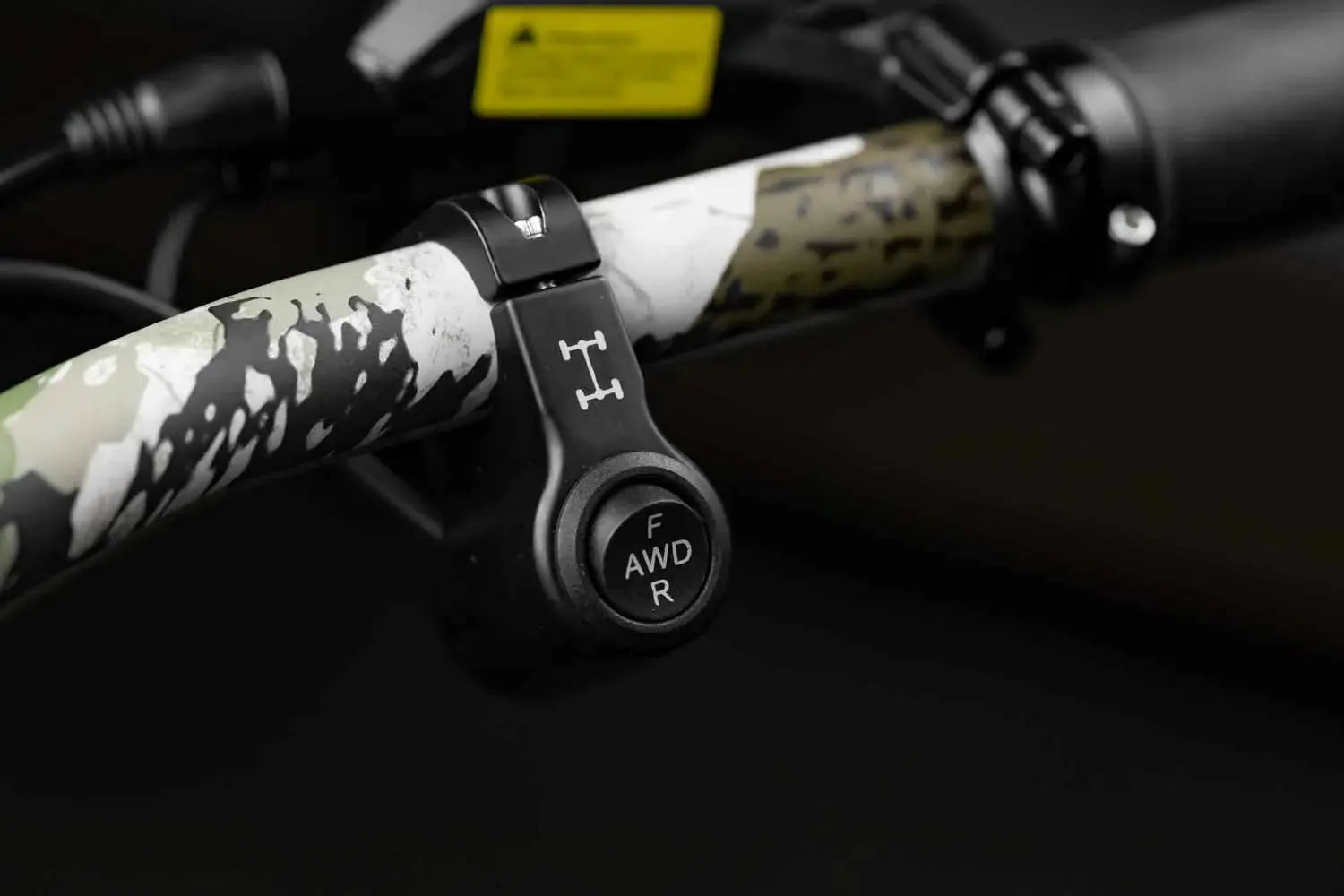

On the fly AWD
Instantly toggle between front, rear, or all wheel drive to match your power output to the terrain.

Rambo Storm LED light bar
Light up the night with the custom LED light bar, with white and green modes for better peripheral visibility.

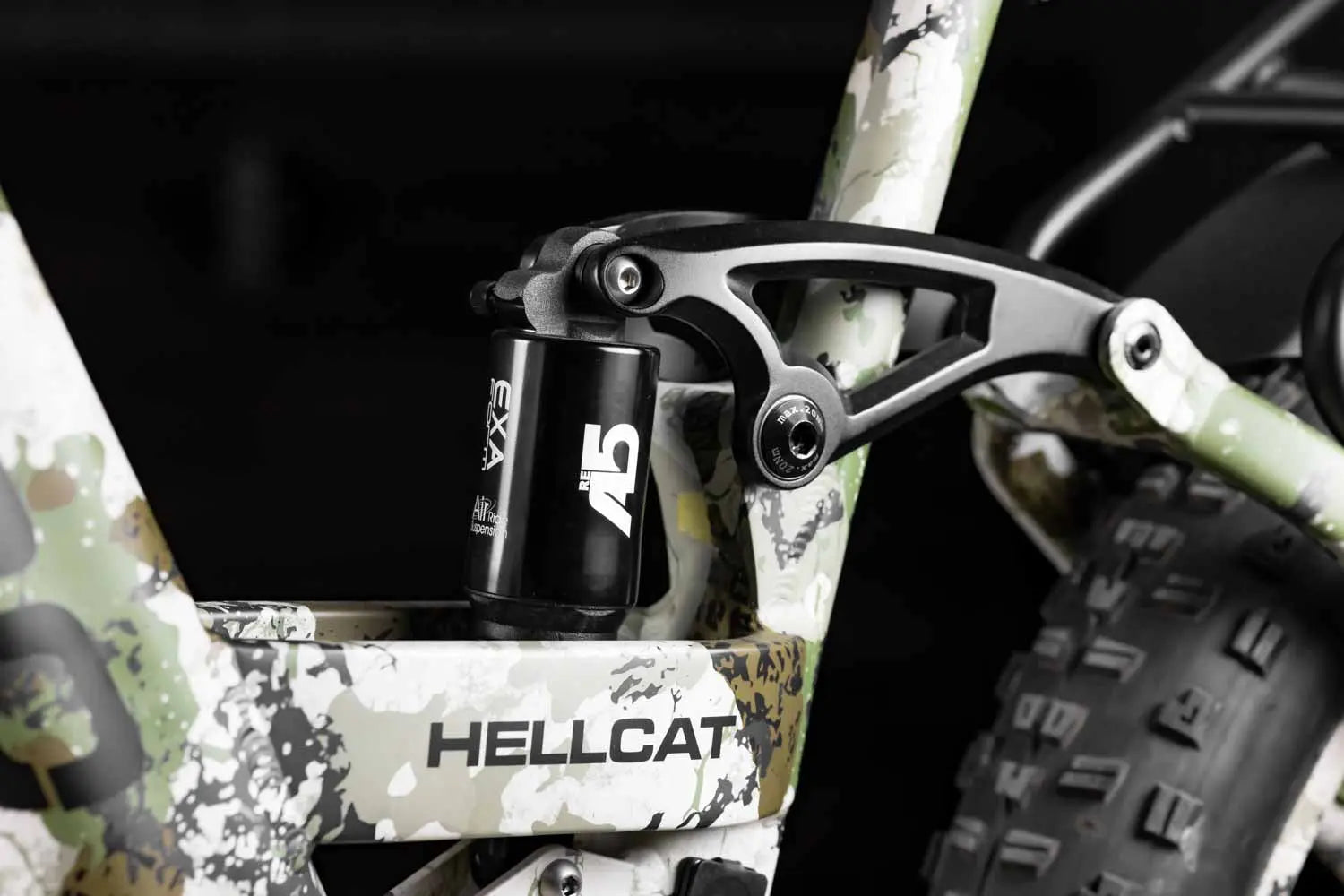

Full suspension
KS A5RE rear suspension and a Uding air fork with 120mm of travel offer improved performance and comfort for a smooth ride.

Shimano 8 speed
Shimano wide range 8 speed drivetrain with an 11-40T cassette, a range of gears suitable for varied terrain.

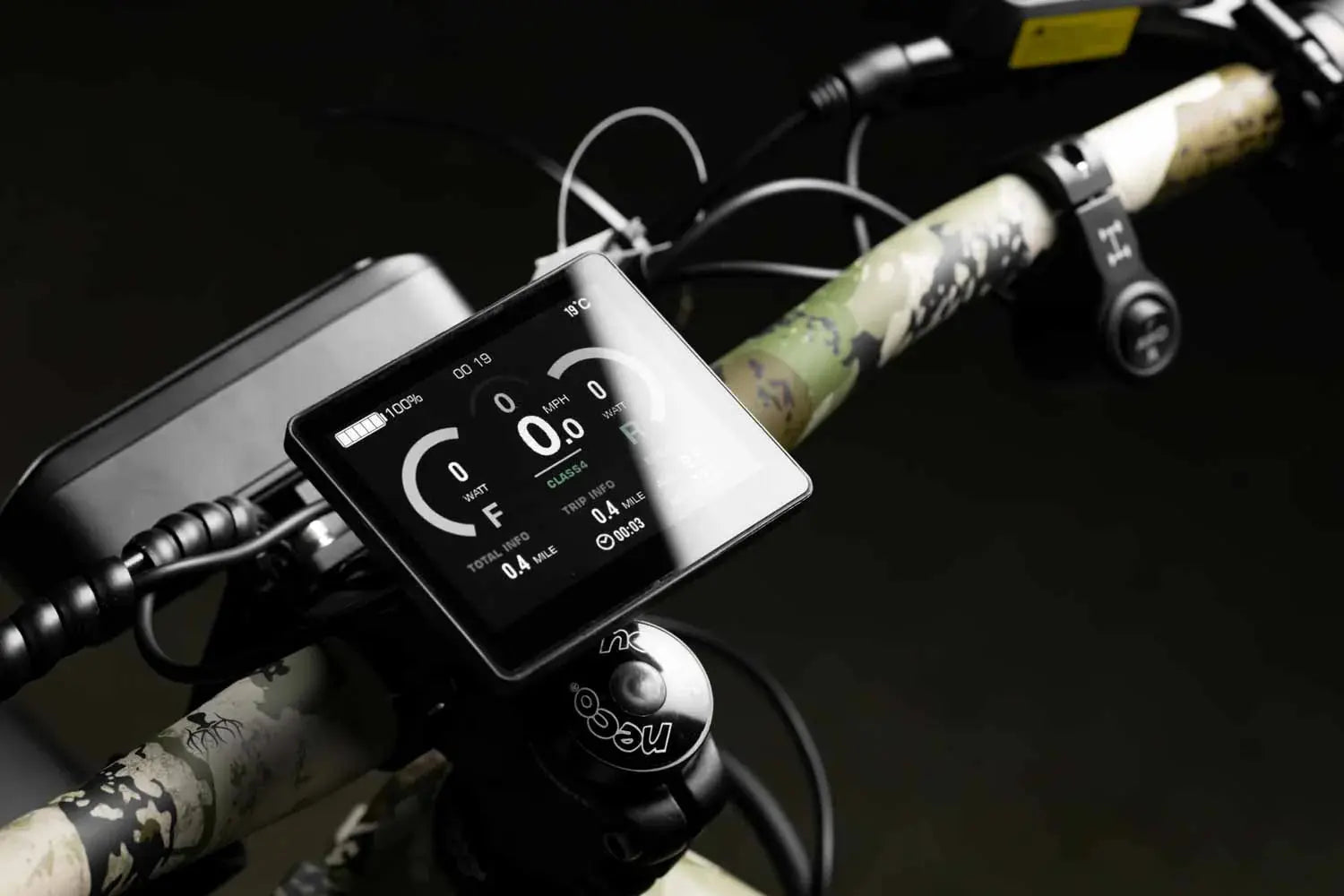

Water resistant LCD
The display shows power output, speed, battery level, and miles traveled, and carries the Adjustable Class System.
| Motor | Bafang dual 1000W hub motors |
|---|---|
| Performance | 2,500W peak rating, 180Nm of torque, 2,000W nominal power |
| Battery | 48V 20Ah internal battery OR 48V 30Ah |
| Range | Equipped with the 20Ah dual battery system, the Hellcat delivers an impressive range of up to 65. 110 miles. Upgrade to the 30Ah option, and you can go even farther. up to 95. 140 miles on a single charge |
| Speed | Up to 32mph. |
| Drive Type | AWD |
| Throttle | Adjustable Left or Right Side Thumb Throttle |
| Brakes | Front Brake: 180mm Logan with dual-piston pads and integrated electric safety cutoff Rear Brake: 180mm Logan with dual-piston pads and integrated electric safety cutoff |
| Gear System | Shimano Wide Range 8 Speed 11-40T. |
| Tires | Maxxis Minion 26 x 4.0 aggressive tread tires |
| Chain | KMC Branded Z8. Specially made for high-performance E-Bike power |
| Frame | Hydroformed aluminum alloy 6061 T6 heat treated, tig welded to the highest specifications. |
| Display | Featuring Adjustable Class System (ACS) and waterproof |
| Seat |
UPGRADE: Cloud 9 Airflow Saddle Seat. Ultra wide, thick padding and built for extra-long rides across trails or tough terrain, this seat is the top recommendation from hunters. UPGRADE: Cloud 9 Sport. Designed with memory foam comfort and to keep you in pursuit of your passion longer than ever before. |
| Pedals | Extra wide Wellgo aluminum alloy UPGRADE: Extra Wide pedals equipped with gripping traction pins to keep your feet in place as you tackle the toughest terrain. Snow, mud, and rocky ground are no match for these pedals. |
| Load Capacity | 300 Lbs |
| Weight | 79Lbs with battery removed. Battery weights 11 lbs |
WHAT'S IN THE BOX
NEW Bike
Display
Battery
Charger
Support
Questions before buying
What does the AWD toggle actually do?+
The Hellcat has a motor in each wheel. The switch on the bar lets you run the front only, the rear only, or both. One motor stretches the battery on flat, easy ground. Both together give you the full 2000W and all wheel traction for climbs, mud, sand, and snow.
20Ah or 30Ah, which battery should I pick?+
Rambo rates the 20Ah at up to 65 miles and the 30Ah at up to 110 miles. Those are pedal assist figures at low assist. If you ride in AWD a lot, in cold weather, or a long way from the truck, the 30Ah is the one. Choose it in the battery option above.
Is it street legal?+
It ships with Rambo's Adjustable Class System in the display, so the rider can cap the bike at Class 1, 2, or 3 limits. Unrestricted it will do up to 32 mph. Class rules are set locally, so check what your state and your trail system allow before you ride.
How much does it weigh?+
79 lbs with the battery removed. The battery adds 11 lbs. Take the pack out before lifting it onto a rack.
How much assembly is needed?+
Rambo ships the bike almost fully assembled. Final setup takes a few minutes and needs no specialty tools.
How much can it carry?+
Load capacity is 300 lbs, rider and gear together. The integrated rear rack is built for hauling.
What are the brakes?+
Rambo's spec table lists 180mm Logan brakes with dual piston pads, front and rear, with an integrated electric cutoff that kills the motors the moment you brake. Rambo's marketing also calls them 4 piston. We print what the spec table says.
Hellcat 2.0 FS on video
Two from Rambo and one from an independent retailer. Videos play here on the page.
Hellcat 2.0 Full Suspension AWD
Rambo's own walk around of the full suspension AWD build.
Hellcat 2.0 Before You Ride
Setup and controls, including the AWD toggle, before the first ride.
Rambo Hellcat FS All-Wheel Drive, Ultimate Off-Road Adventure
A short ride reel from an independent retailer.
