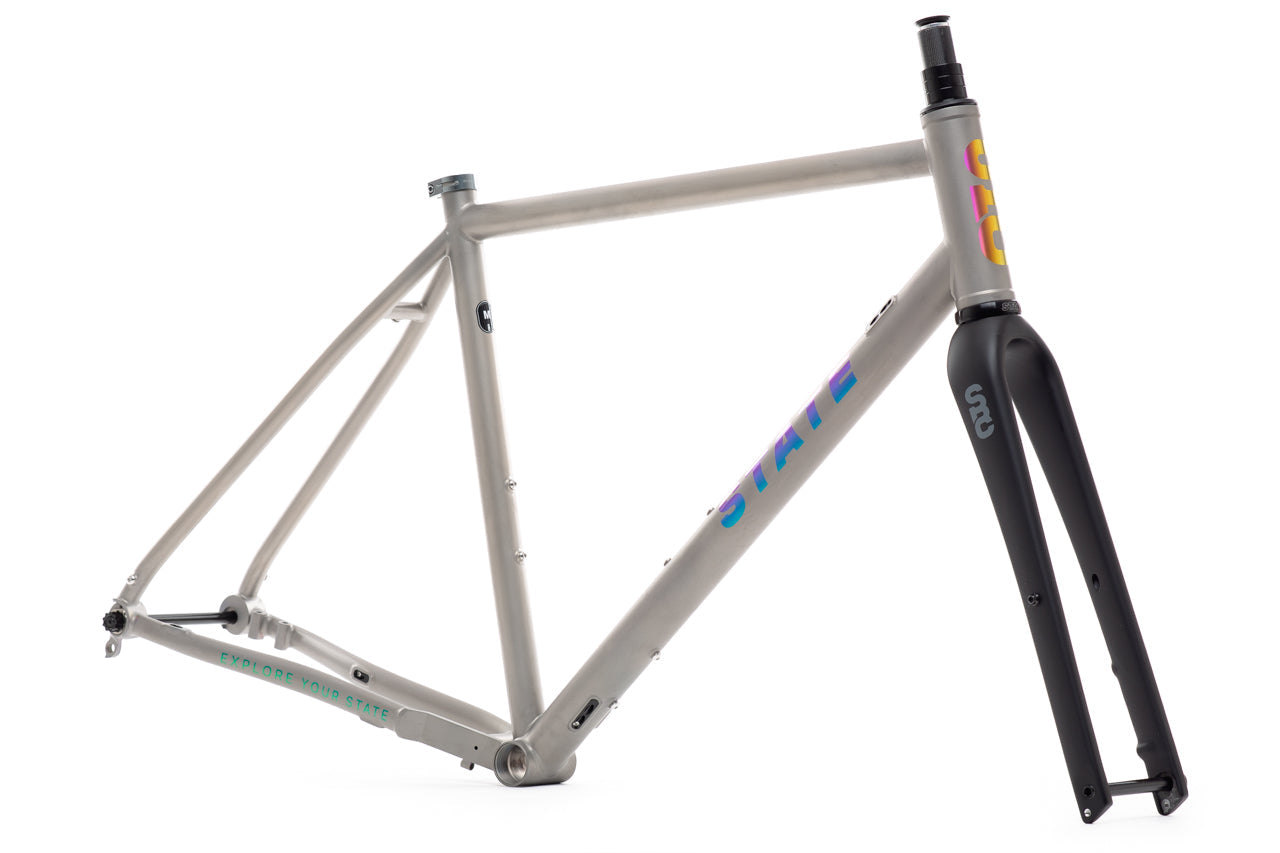

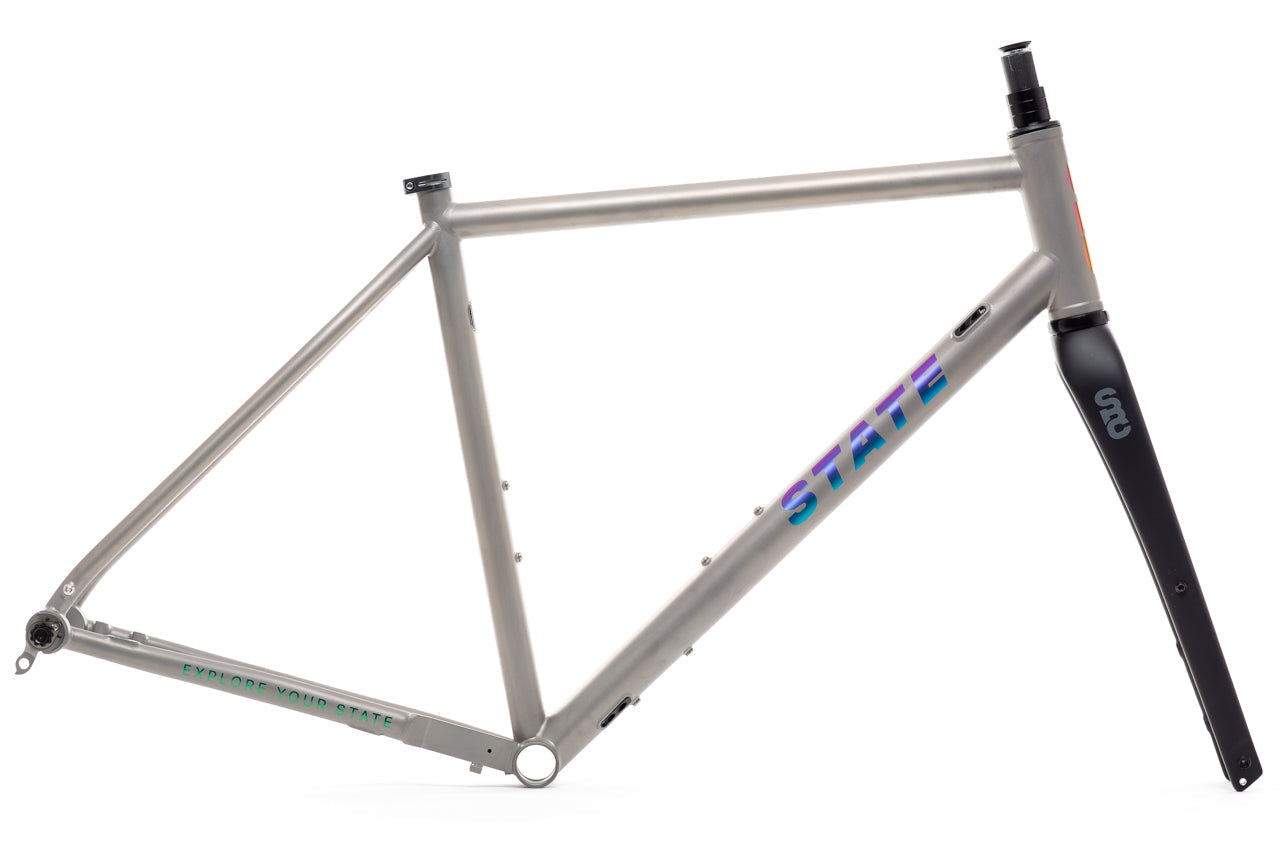

The Titanium All-Road frame is built from double-butted Gr9 3AL/2.5V titanium with a PVD color process and sandblasted finish that will never chip, fade, or corrode. 50mm+ tire clearance on 700c, UDH compatibility, and a frame weight of 1870g (size M).
Key Features
- Double-butted Gr9 3AL/2.5V titanium construction
- PVD color process + sandblasted finish (will not chip or corrode)
- 50mm+ tire clearance on 700c, 2.2"+ on 650b
- Universal Derailleur Hanger (UDH) compatibility
- Flat mount disc brake compatible
- Internal cable routing
- Frame weight: 1870g (size M)
Specifications
| Material | Gr9 3AL/2.5V Titanium |
|---|---|
| Weight | 1870g (Size M) |
| Finish | PVD Color Process + Sandblasting |
| Derailleur Hanger | Universal Derailleur Hanger (UDH) |
| Front Axle | Stealth Thru-Axle (included) |
| Rear Axle | Stealth Thru-Axle (included) |
| Tire Clearance (700c) | 50mm+ |
| Tire Clearance (650b) | 2.2"+ |
| Brake Mount | Flat Mount Disc |
| Cable Routing | Internal |
| Frame Weight (Size M) | 1870g |
Frequently Asked Questions
What sizes are available?
X-Small (5'1"-5'6"), Small (5'5"-5'9"), Medium (5'8"-5'11"), Large (5'10"-6'1"), X-Large (6'0"-6'4").
Is a fork included?
No. The frame ships without a fork. State Bicycle offers optional forks: Carbon "Black Label" Gravel Fork ($199.99), Carbon Monster Fork ($299.99), and All-Road Suspension Fork ($350.00).
What is the PVD finish?
PVD (Physical Vapor Deposition) is a coating process used in aerospace and high-end watches. It bonds color at the molecular level so it will not chip, peel, or fade like paint.
Will titanium rust or corrode?
No. Titanium is naturally corrosion-resistant. It does not rust, even without paint or coating. This frame will outlast you.
What's In The Box
- Titanium All-Road frame
- Stealth thru-axles (front and rear)
- Seat post clamp
- Rear derailleur hanger (UDH)
