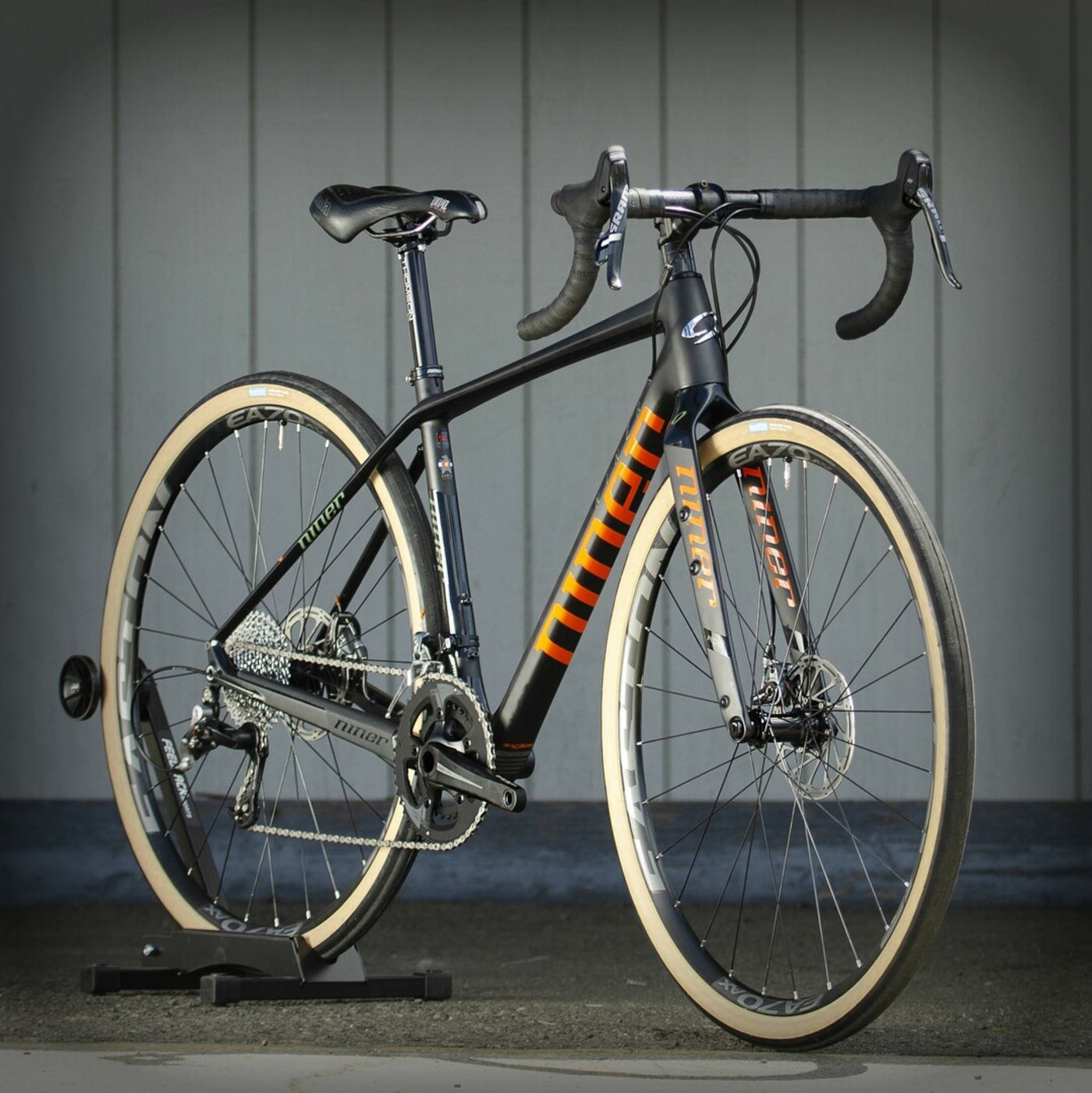

NINER BIKES RLT 9 RDO Gravel Bikes

Rather than designing a no-fun, no-frills, uber-light and too-stiff carbon chassis for our newest RLT 9 RDO, we built you a bike that you’ll want to ride all the time, to any place. With extra tire clearance, multiple fitments for accessories and cargo, plus slick frame features and a smooth ride, you can pedal it and be happy - anywhere and everywhere, not just on your Strava segments.

FEATURES:

Style for miles

You want to not just go the distance but do go there fast? The RLT 9 RDO is a gravel bike made to make the miles sail past. Do you want to explore? This bike encourages it. How about undertaking long and adventurous rides? Please do. Need a change of pace, a break from the routine? Go ahead. Give it a chance. If you can think it on two wheels, the RLT, a multi-tool of a bike, might just be the bike for you. From dirt trails to gravel to asphalt, this bike takes everything in stride, with you along for the ride.

Race Day Optimized carbon fiber construction

Carbon fiber gets all the credit these days. It’s light, it’s stiff, and it’s infinitely variable in terms of size, shape, material properties, and strength. Ask any bike freak about the world’s best bikes, and 9 times out of 10, they’ll foam over like a simmering saucepan, raving about exotic Italian carbon fiber dream machines.
But carbon fiber is like tomato sauce ndash; there’s more to it than the tomatoes and where they were grown. It matters more how you make it and what you put it on.
As lifelong gravel (and pasta) addicts, we’re experts at finding the ingredients to make carbon fiber ideal for every adventure we can envision. As such, we add a healthy dose of soul to our in-house RDO carbon fiber recipe.
To be clear, Niner’s RDO carbon fiber is light enough and stiff enough to satisfy the most selective gravel racers. We’re not afraid to brag that Niner riders have won a fair share of Unbound Gravels. But these days, “light, fast, strong, and stiff” is easy.
What takes more thought and care is maintaining a healthy dose of bump-absorbing compliance. RLT 9 RDO riders roll in comfort with tube shaping and carbon fiber layups made for a forgiving ride.

Fork it over

The RLT 9 RDO includes an all-new RDO carbon fiber fork. A Niner original, this exceptional component is made from Race Day Optimized carbon fiber, which is built with a unique process that optimizes complete compaction of the carbon layers under heat and pressure. By maximizing the carbon-to-resin ratio in the finished product, we keep this fork light and stiff while improving compliance over rough surfaces.
We paid mind to aesthetics and functionality in this fork. The brake hose is routed internally through a fully sleeved guide tube. Multiple rack, fender, and cargo mounts make light work of heavy loads, so go ahead, add another day of bikepacking on to your trip. The 12x100mm thru-axle and flat mount disc brake attachments are compatible with contemporary components. If you find yourself wanting to push the limits on a long-haul self-supported ride, we’ve got you covered. The new fork features internal wire routing and fitment for a hub dynamo powered light, so the only thing keeping you from riding into the night is your bedtime.

Tire sizes to satisfy any adventure

Get ready to swoon. With more tire clearance than ever before, the RLT 9 RDO can accommodate tires as wide as 700x50c. Does your next ride require more rubber on the road? Not to worry, swapping out wheels is easy. This bike can accommodate 650b wheels and fit tires as wide as 2.0. Go wild with wheel and tire combinations, just keep it rubber side down out there.

Frame features fit for going farther

Are you a carbon connoisseur, an adventure addict, weekend bikepacker, gear hoarder, over packer, grocery-getter or commuter extraordinaire? If you answered yes to any of these, the RLT 9 RDO was made for you. This dream build has 26 mounting points that give you the option to outfit your bike with as many bags, bottles, and racks as you need.
We’ve also designed custom bags for each frame size that mount directly to the frame. No more straps or buckles flying around. Just a cleanly designed frame ready for the next journey.
Cleanliness is next to godliness. Our full-sleeve internal cable routing keeps the frame looking tidy. Want an even sleeker bike? Single-speed calling your name? With our PF30 bottom bracket shell, it’s easy to fit a geared or single-speed drivetrain. More gears your thing? This bike is compatible with either mechanical or electronic shifting. Plan on getting rowdy on your ride? Throw a dropper post on, for safety.

5-STAR SRAM FORCE 1 XPLR AXS Specifications:

AVAILABLE FRAME SIZES	47CM, 50CM, 53CM, 56CM, 59CM, 62CM	AVAILABLE COLORS	AVALANCHE GREY/SLATE; BLOOD RED/SILVER
FRAME	NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE	FORK	NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE
SHOCK	N/A	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
RIMS/WHEELS	ZIPP 303 S WHEELS 303 S	HUBS	DBCL HUBS (XDR)
SPOKES	CX-SPRINT	FRONT TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700 X 45
REAR TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700 X 45	BRAKES	SRAM FORCE HRD FM
BRAKE LEVERS	SRAM FORCE 1 ETAP AXS	BRAKE ROTORS	SRAM PACELINE 160/160MM CENTERLOCK ROTORS
CHAIN	SRAM FORCE 12SP	FRONT SHIFTER	SRAM FORCE 1 XPLR ETAP AXS
REAR SHIFTER	SRAM FORCE 1 XPLR ETAP AXS	FRONT DERAILLEUR	N/A
REAR DERAILLEUR	SRAM FORCE 1 XPLR ETAP AXS	CASSETTE	SRAM XG 1271 12SP 10-44T
CRANKSET	SRAM FORCE 1 DUB 40T (47/50 - 170MM, 53/56 - 172.5MM, 59/62 - 175MM)	BOTTOM BRACKET	SRAM DUB PF30
SADDLE	NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC	SEATPOST	NINER RDO SEAT POST, 400MM, NINER GRAPHIC
HANDLEBAR	EASTON EC70 AX (47/50- 420MM, 53/56- 440MM, 59/62- 460MM)	STEM	NINER RDO STEM, NINER GRAPHIC (47/50- 80MM, 53/56- 90MM, 59/62- 100MM)
HEADSET	NINER INTEGRATED SHIS DESCRIPTION IS42/28.6\|IS52/40	GRIPS	NINER BAR TAPE
APPROXIMATE WEIGHT	19.9 LBS

RLT 9 RDO 5-STAR SHIMANO GRX 800 2X Specifications:

Our 5-star Shimano GRX800 2x parts kit meets our top of the line, grinding RLT 9 RDO frame. With Stan's NoTubes Grail CB7 carbon wheels, Schwalbe tires, and an Easton handlebar, the miles will roll on and on.

Shimano's top of the line GRX 800 gravel-specific drivetrain, 2-chainring
Stan's NoTubes Grail CB7 carbon wheels
Niner RDO carbon seatpost

AVAILABLE FRAME SIZES	47CM, 50CM, 53CM, 56CM, 59CM, 62CM	AVAILABLE COLORS	AVALANCHE GREY/SLATE; BLOOD RED/SILVER
FRAME	NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE	FORK	NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE
SHOCK	N/A	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
RIMS/WHEELS	ZIPP 303 S WHEELS 303 S	HUBS	DBCL HUBS (HG)
SPOKES	CX-SPRINT	FRONT TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700X45
REAR TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700X45	BRAKES	SHIMANO GRX800
BRAKE LEVERS	SHIMANO GRX800	BRAKE ROTORS	SHIMANO CL800 160/160MM CL ROTORS
CHAIN	SHIMANO HG 601 11SP	FRONT SHIFTER	SHIMANO GRX800 2SP
REAR SHIFTER	SHIMANO GRX800 11SP	FRONT DERAILLEUR	SHIMANO ULTEGRA R8000
REAR DERAILLEUR	SHIMANO GRX800 GS 11SP SHADOW PLUS	CASSETTE	SHIMANO ULTEGRA HG800 11SP 11-34T
CRANKSET	EASTON EC90 CARBON 47X32T (47/50 - 170MM, 53/56 - 172.5MM, 59/62 - 175MM)	BOTTOM BRACKET	EASTON PF30
SADDLE	NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC	SEATPOST	NINER RDO CARBON, 400MM
HANDLEBAR	EASTON EA50 AX	STEM	NINER RDO
HEADSET	NINER INTEGRATED SHIS DESCRIPTION IS42/28.6\|IS52/40	GRIPS	NINER BAR TAPE
APPROXIMATE WEIGHT	19.9 LBS

RLT 9 RDO 5-STAR SHIMANO GRX 800 1x Specifications:

Prefer a single ring on your Shimano setup? This 5-Star Shimano GRX 800 1x kit is for you. Combined with Stan's NoTubes Grail CB7 carbon wheels, Schwalbe tires, and an Easton carbon crankset, this is one of the best gravel-grinding packages available.

Shimano GRX 800 single-chainring drivetrain
Stan's NoTubes Grail CB7 carbon wheels
Niner RDO carbon seatpost

AVAILABLE FRAME SIZES	47CM, 50CM, 53CM, 56CM, 59CM, 62CM	AVAILABLE COLORS	AVALANCHE GREY/SLATE; BLOOD RED/SILVER
FRAME	NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE	FORK	NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE
SHOCK	N/A	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
RIMS/WHEELS	ZIPP 303 S WHEELS 303 S	HUBS	DBCL HUBS (HG)
SPOKES	CX-SPRINT	FRONT TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700X45
REAR TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700X45	BRAKES	SHIMANO GRX800
BRAKE LEVERS	SHIMANO GRX800	BRAKE ROTORS	SHIMANO CL800 160/160MM CL ROTORS
CHAIN	SHIMANO HG 601 11SP	FRONT SHIFTER	SHIMANO GRX800
REAR SHIFTER	SHIMANO GRX800 11SP	FRONT DERAILLEUR	N/A
REAR DERAILLEUR	SHIMANO GRX800 GS 11SP SHADOW PLUS	CASSETTE	SHIMANO XT M8000 11SP 11-42T
CRANKSET	EASTON EC90 CARBON, 40T	BOTTOM BRACKET	EASTON PF30
SADDLE	NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC	SEATPOST	NINER RDO CARBON, 400MM
HANDLEBAR	EASTON EA50 AX	STEM	NINER RDO
HEADSET	NINER INTEGRATED SHIS DESCRIPTION IS42/28.6\|IS52/40	GRIPS	NINER BAR TAPE
APPROXIMATE WEIGHT	19.9 LBS

RLT 9 RDO 4-STAR SHIMANO GRX 800 2X Specifications:

Our 4-Star Shimano GRX 800 2x kit brings Shimano performance to a more affordable price level. With DT Swiss G 1800 SPLINE 25 wheels, Schwalbe tires, and an Easton 2-chainring carbon crankset, this is one of the best gravel-grinding packages available.

Shimano GRX 800 two-chainring drivetrain
DT Swiss G 1800 SPLINE 25 wheels
Niner RDO carbon seatpost

AVAILABLE FRAME SIZES	47CM, 50CM, 53CM, 56CM, 59CM, 62CM	AVAILABLE COLORS	AVALANCHE GREY/SLATE; BLOOD RED/SILVER
FRAME	NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE	FORK	NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE
SHOCK	N/A	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
FRONT WHEEL	DT SWISS G 1800 SPLINE 25, CENTERLOCK, 100X12MM	REAR WHEEL	DT SWISS G 1800 SPLINE 25, CENTERLOCK, 142X12MM
FRONT TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700X45	REAR TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700X45
BRAKES	SHIMANO GRX800	BRAKE LEVERS	SHIMANO GRX800
BRAKE ROTORS	SHIMANO CL800 160/160MM CL ROTORS	CHAIN	SHIMANO HG 601 11SP
FRONT SHIFTER	SHIMANO GRX800 2SP	REAR SHIFTER	SHIMANO GRX800 11SP
FRONT DERAILLEUR	SHIMANO ULTEGRA R8000	REAR DERAILLEUR	SHIMANO GRX800 GS 11SP SHADOW PLUS
CASSETTE	SHIMANO ULTEGRA HG800 11SP 11-34T	CRANKSET	EASTON EC90 CARBON, 47X32T
BOTTOM BRACKET	EASTON PF30	SADDLE	NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC
SEATPOST	NINER RDO CARBON, 400MM	HANDLEBAR	EASTON EA50 AX
STEM	NINER RDO	HEADSET	NINER INTEGRATED SHIS DESCRIPTION IS42/28.6\|IS52/40
GRIPS	NINER BAR TAPE	APPROXIMATE WEIGHT	21.6 LBS

RLT 9 RDO 4-STAR SHIMANO GRX 800 1X Specifications:

Our 4-Star Shimano GRX 800 1x kit brings Shimano single-ring performance to a more affordable price level. With DT Swiss G 1800 SPLINE 25 wheels, Schwalbe tires, and an Easton 1-chainring carbon crankset, this is one of the best gravel-grinding packages available.

Shimano GRX 800 1-chainring drivetrain
DT Swiss G 1800 SPLINE 25 wheels
Niner RDO carbon seatpost

AVAILABLE FRAME SIZES	47CM, 50CM, 53CM, 56CM, 59CM, 62CM	AVAILABLE COLORS	AVALANCHE GREY/SLATE; BLOOD RED/SILVER
FRAME	NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE	FORK	NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE
SHOCK	N/A	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
FRONT WHEEL	DT SWISS G 1800 SPLINE 25, CENTERLOCK, 100X12MM	REAR WHEEL	DT SWISS G 1800 SPLINE 25, CENTERLOCK, 142X12MM
FRONT TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700X45	REAR TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700X45
BRAKES	SHIMANO GRX800	BRAKE LEVERS	SHIMANO GRX800
BRAKE ROTORS	SHIMANO CL800 160/160MM CL ROTORS	CHAIN	SHIMANO HG 601 11SP
FRONT SHIFTER	SHIMANO GRX800	REAR SHIFTER	SHIMANO GRX800 11SP
FRONT DERAILLEUR	N/A	REAR DERAILLEUR	SHIMANO GRX800 GS 11SP SHADOW PLUS
CASSETTE	SHIMANO XT M8000 11SP 11-42T	CRANKSET	EASTON EC90 CARBON, 40T
BOTTOM BRACKET	EASTON PF30	SADDLE	NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC
SEATPOST	NINER RDO CARBON, 400MM	HANDLEBAR	EASTON EA50 AX
STEM	NINER RDO	HEADSET	NINER INTEGRATED SHIS DESCRIPTION IS42/28.6\|IS52/40
GRIPS	NINER BAR TAPE	APPROXIMATE WEIGHT	21.3 LBS

3-STAR SRAM RIVAL 1 XPLR AXS Specifications:

AVAILABLE FRAME SIZES	47CM, 50CM, 53CM, 56CM, 59CM, 62CM	AVAILABLE COLORS	AVALANCHE GREY/SLATE; BLOOD RED/SILVER
FRAME	NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE	FORK	NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE
SHOCK	N/A	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
RIMS/WHEELS	STANS NOTUBES CREST S2, 32 HOLE, ALUMINUM CLINCHER, 700C	HUBS	CL 12X100MM FRONT HUB, CL 12 X 142 REAR HUB XDR
SPOKES		FRONT TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700 X 45
REAR TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700 X 45	BRAKES	SRAM RIVAL 1 HRD FM
BRAKE LEVERS	SRAM RIVAL 1 ETAP AXS	BRAKE ROTORS	SRAM CENTERLINE 160/160MM CL ROTORS
CHAIN	SRAM RIVAL 12SP	FRONT SHIFTER	SRAM RIVAL 1 XPLR ETAP AXS
REAR SHIFTER	SRAM RIVAL 1 XPLR ETAP AXS	FRONT DERAILLEUR	N/A
REAR DERAILLEUR	SRAM RIVAL 1 XPLR ETAP AXS	CASSETTE	SRAM XG 1251 12SP 10-44T
CRANKSET	SRAM RIVAL 1 DUB 40T (47/50 - 170MM, 53/56 - 172.5MM, 59/62 - 175MM)	BOTTOM BRACKET	SRAM DUB PF30
SADDLE	NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC	SEATPOST	NINER CARBON SEAT POST, 400MM, NINER GRAPHIC
HANDLEBAR	EASTON EA50 AX (47/50- 420MM, 53/56- 440MM, 59/62- 460MM)	STEM	NINER ALLOY STEM, NINER GRAPHIC (47/50- 80MM, 53/56- 90MM, 59/62- 100MM)
HEADSET	NINER INTEGRATED SHIS DESCRIPTION IS42/28.6\|IS52/40	GRIPS	NINER BAR TAPE
APPROXIMATE WEIGHT	22.2 LBS

RLT 9 RDO 3-STAR SRAM RIVAL 1 Specifications:

Our standout 3-Star SRAM Rival 1 parts kit mates a single-chainring SRAM drivetrain with DT Swiss wheels and a gravel-specific Easton handlebar to complete a high performing, outstanding value package.

SRAM Rival 1x shifting
DT Swiss G 1800 spline 25 wheels
Niner carbon seatpost and alloy stem

AVAILABLE FRAME SIZES	47CM, 50CM, 53CM, 56CM, 59CM, 62CM	AVAILABLE COLORS	AVALANCHE GREY/SLATE; BLOOD RED/SILVER
FRAME	NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE	FORK	NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE
SHOCK	N/A	TUBES / SEALANT	STANS NO TUBES SEALANT (2 X 2OZ BOTTLES)
RIMS/WHEELS	NINER ALLOY, 700C ALUMINUM CLINCHER, 22.5MM INTERNAL	HUBS	NINER ALLOY
SPOKES		FRONT TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700 X 45
REAR TIRE	SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700 X 45	BRAKES	SRAM RIVAL 1 HRD FM
BRAKE LEVERS	SRAM RIVAL 1 HRD	BRAKE ROTORS	SRAM CENTERLINE 160/160MM CL ROTORS
CHAIN	SRAM PC 1130 11SP	FRONT SHIFTER	SRAM RIVAL 1 HRD
REAR SHIFTER	SRAM RIVAL 1 HRD 11SP	FRONT DERAILLEUR	N/A
REAR DERAILLEUR	SRAM RIVAL 1 LONG CAGE	CASSETTE	SRAM PG 1130 11SP 11-42T
CRANKSET	EASTON EA90 40T (47/50 - 170MM, 53/56 - 172.5MM, 59/62 - 175MM)	BOTTOM BRACKET	EASTON PF30
SADDLE	NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC	SEATPOST	NINER CARBON SEAT POST, 400MM, NINER GRAPHIC
HANDLEBAR	EASTON EA50 AX (47/50- 420MM, 53/56- 440MM, 59/62- 460MM)	STEM	NINER ALLOY STEM, NINER GRAPHIC (47/50- 80MM, 53/56- 90MM, 59/62- 100MM)
HEADSET	NINER INTEGRATED SHIS DESCRIPTION IS42/28.6\|IS52/40	GRIPS	NINER BAR TAPE
APPROXIMATE WEIGHT	22.2 LBS

RLT 9 RDO 2-STAR SRAM APEX 1 Specifications:

Grind the gravel roads on a budget with a 2-Star SRAM Apex 1 build kit. All the performance of our top end frameset without a hit to your wallet, thanks to a single-chainring SRAM Apex drivetrain.

SRAM Apex 1 single-chainring drivetrain
Niner alloy wheels
Niner alloy seatpost and stem

AVAILABLE FRAME SIZES	47CM, 50CM, 53CM, 56CM, 59CM, 62CM	AVAILABLE COLORS	AVALANCHE GREY/SLATE; BLOOD RED/SILVER
FRAME	NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE	FORK	NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE
SHOCK	N/A	TUBES / SEALANT	STANS NOTUBES SEALANT (2X 2OZ BOTTLES)
FRONT WHEEL	NINER ALLOY, 22.5MM INTERNAL WIDTH, CENTERLOCK, 100 X12MM	REAR WHEEL	NINER ALLOY, 22.5MM INTERNAL WIDTH, CENTERLOCK, 142 X12MM
FRONT TIRE	SCHWALBE G-ONE ALLROUND PERFORMANCE RACEGUARD TLE, 700 X 40	REAR TIRE	SCHWALBE G-ONE ALLROUND PERFORMANCE RACEGUARD TLE, 700 X 40
BRAKES	SRAM APEX 1 HRD FM	BRAKE LEVERS	SRAM APEX 1 HRD
BRAKE ROTORS	SRAM CENTERLINE 160/160MM CL	CHAIN	SRAM PC 1130 11SP
FRONT SHIFTER	SRAM APEX 1	REAR SHIFTER	SRAM APEX 1 11SP
FRONT DERAILLEUR	N/A	REAR DERAILLEUR	SRAM APEX 1 LONG CAGE
CASSETTE	SRAM PG 1130 11SP 11-42T	CRANKSET	SRAM APEX 1 40T
BOTTOM BRACKET	PRESTINE PF30 THREAD TOGETHER	SADDLE	NINER CUSTOM WITH CHRO-MO RAILS, EMBOSSED NINER GRAPHIC
SEATPOST	NINER ALLOY	HANDLEBAR	EASTON EA50 AX
STEM	NINER ALLOY	HEADSET	NINER INTEGRATED SHIS DESCRIPTION IS42/28.6\|IS52/40
GRIPS	NINER BAR TAPE	APPROXIMATE WEIGHT	22.3 LBS

TECHNICAL SPECIFICATIONS:

FRAME MOUNTS AND FITTINGS	2 INNER TRIANGLE BOTTLE MOUNTS, RACK AND FENDER MOUNTS, ACCESSORY MOUNTS ON FORK.	REAR SUSPENSION TRAVEL	N/A
MAXIMUM FRONT SUSPENSION	N/A	FORK RAKE	45MM
SHOCK SIZE	N/A	SHOCK MOUNTING HARDWARE	N/A
SUGGESTED SHOCK SAG	N/A	SEATPOST SIZE	27.2MM
SEAT COLLAR SIZE	31.8MM	CABLE ROUTING	FULL SLEEVE INTERNAL, DI2 COMPATIBLE
FRONT DERAILLEUR TYPE		HEADSET SIZE	1.125" X 1.5" TAPERED INTEGRATED (CAMPY STYLE) HEAD TUBE, HEADSET INCLUDED, CANE CREEK DESCRIPTION: IS42/28.6 \| IS52/40
PIVOT BEARING SPECS	N/A	CHAINRING COMPATIBILITY	COMPATIBLE WITH STANDARD 1X AND 2X SYSTEMS
MAXIMUM CHAINRING SIZE	1X - 48T; 2X - 50/34T	Q-FACTOR	168MM
ISCG COMPATIBILITY	NO	BOTTOM BRACKET TYPE	68MM PF30 BB SHELL (ADAPTORS REQUIRED FOR BSA TYPE BBS)
BIOCENTRIC 30 COMPATIBILITY	YES	BRAKE MOUNT TYPE	FLAT MOUNT (30MM REAR)
MAXIMUM REAR ROTOR SIZE	160MM	REAR WHEEL SPACING	12X142MM
REAR WHEEL THROUGH-AXLE SPEC	M12 X 1.75P X 174L	FRONT WHEEL AXLE SPACING	12X 100MM THRU AXLE
FRONT WHEEL THROUGH-AXLE SPEC	M12 X 1.5P X 125L	MAX TIRE SIZE	700X50C OR 650B X 2.0 (TIRES VARY BY BRAND, SOME BRANDS MAY NOT FIT)

We make every effort to publish accurate build specs, however Niner Bikes reserves the right to make substitutions or changes to bike assembly specification at any time without notice or warning. Product images may not reflect actual specification. Minor variance in color may be visible including fork decal color. Published approximate weights are for size medium (53cm) and may vary by +/- 15% due to manufacturing tolerances.
