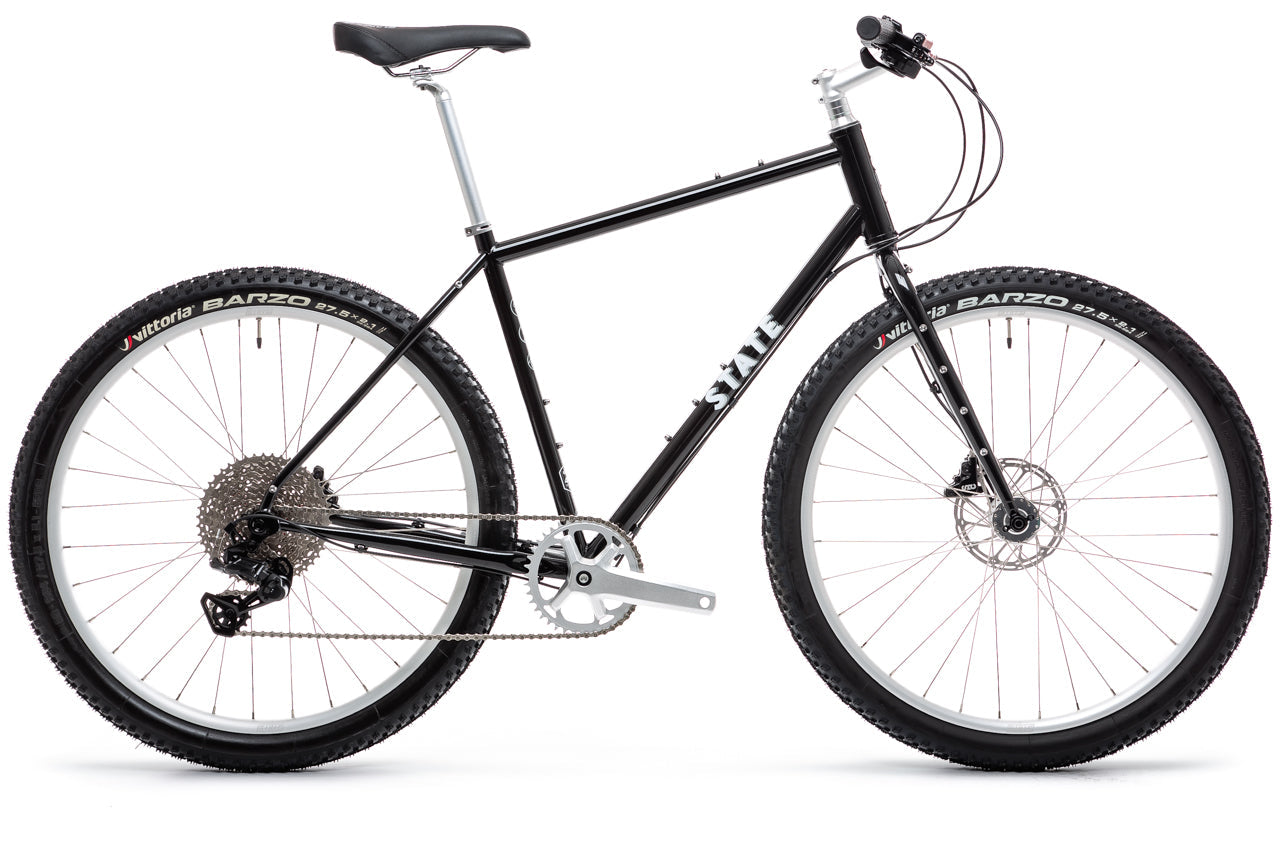

State Bicycle Co. 4130 All-Road Flat Bar in Black Stone, a steel flat bar gravel bike, drive side profile

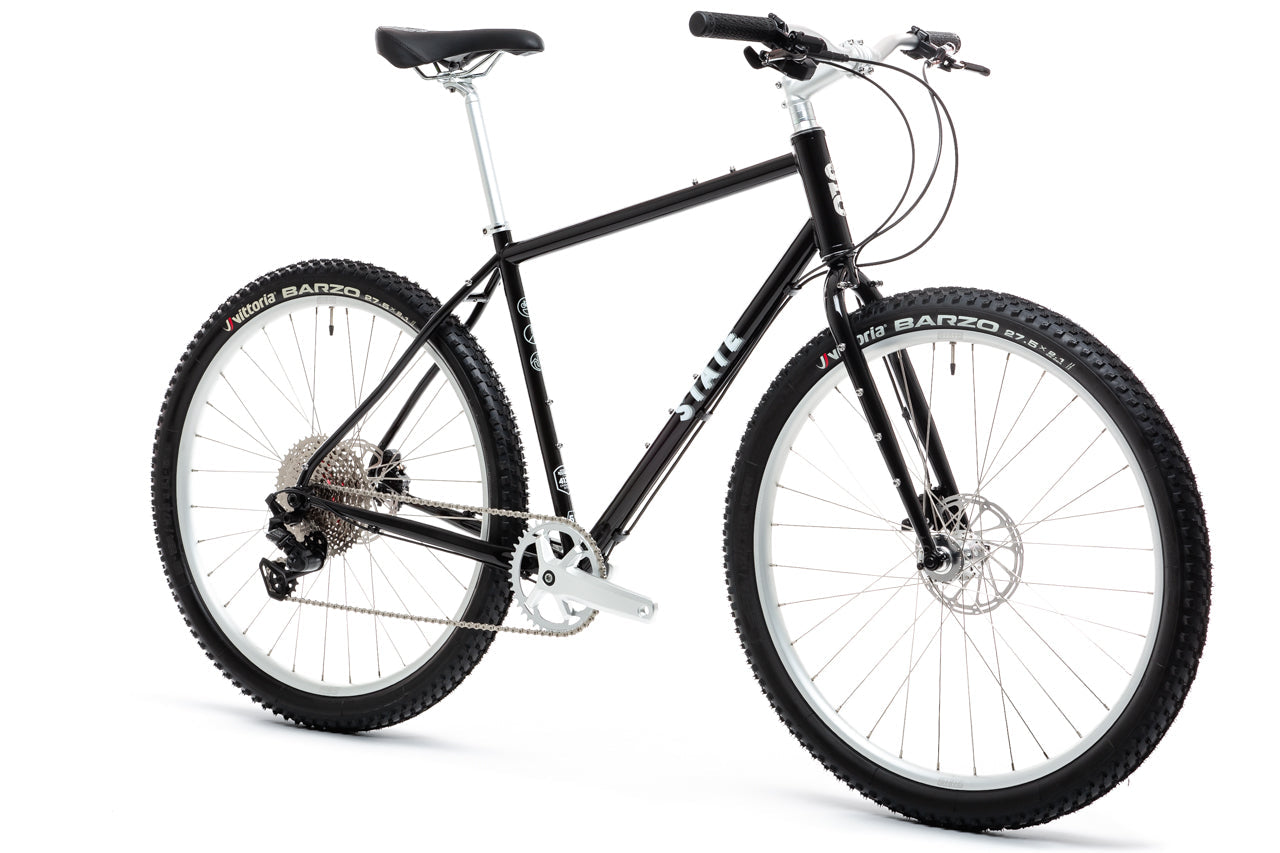

State 4130 All-Road Flat Bar gravel bike in Black Stone, front three quarter view

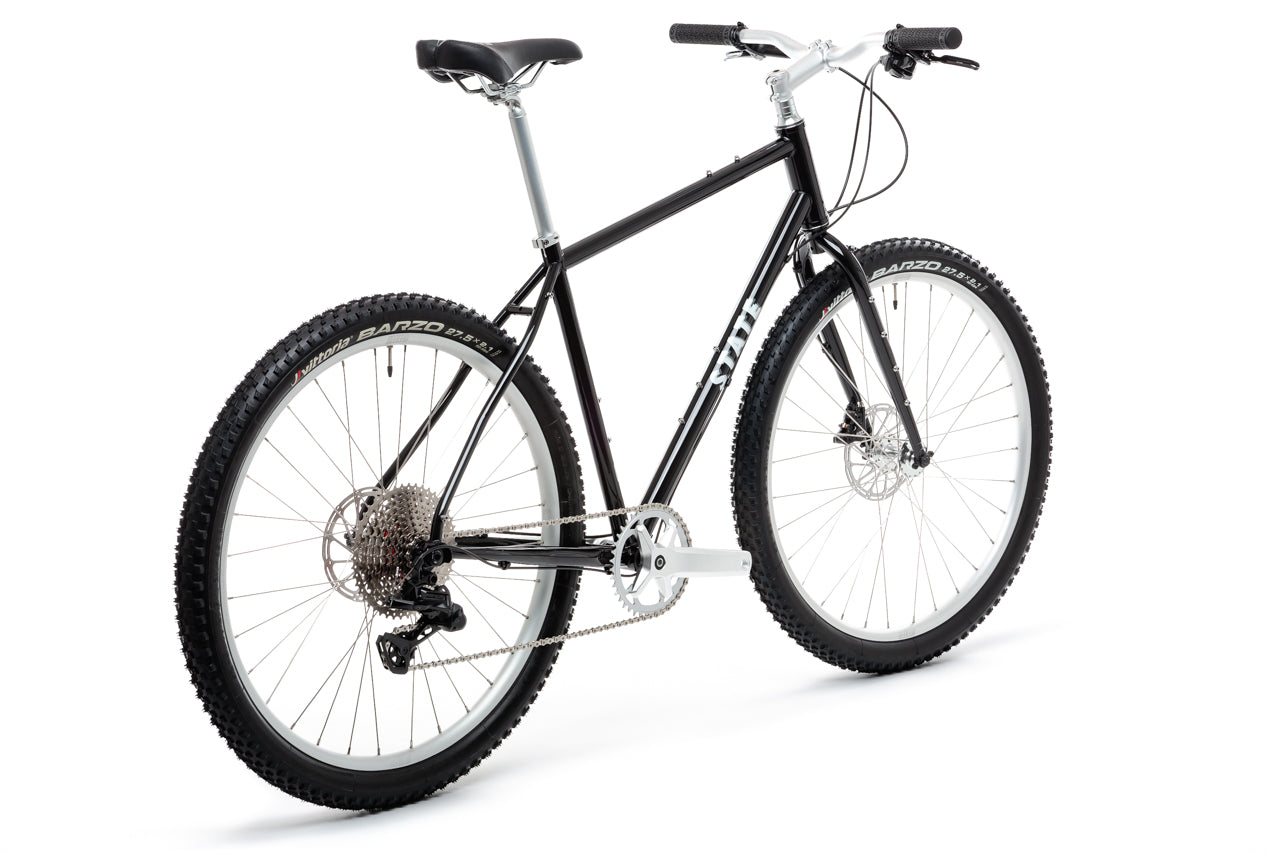

State 4130 All-Road Flat Bar gravel bike in Black Stone, rear three quarter view

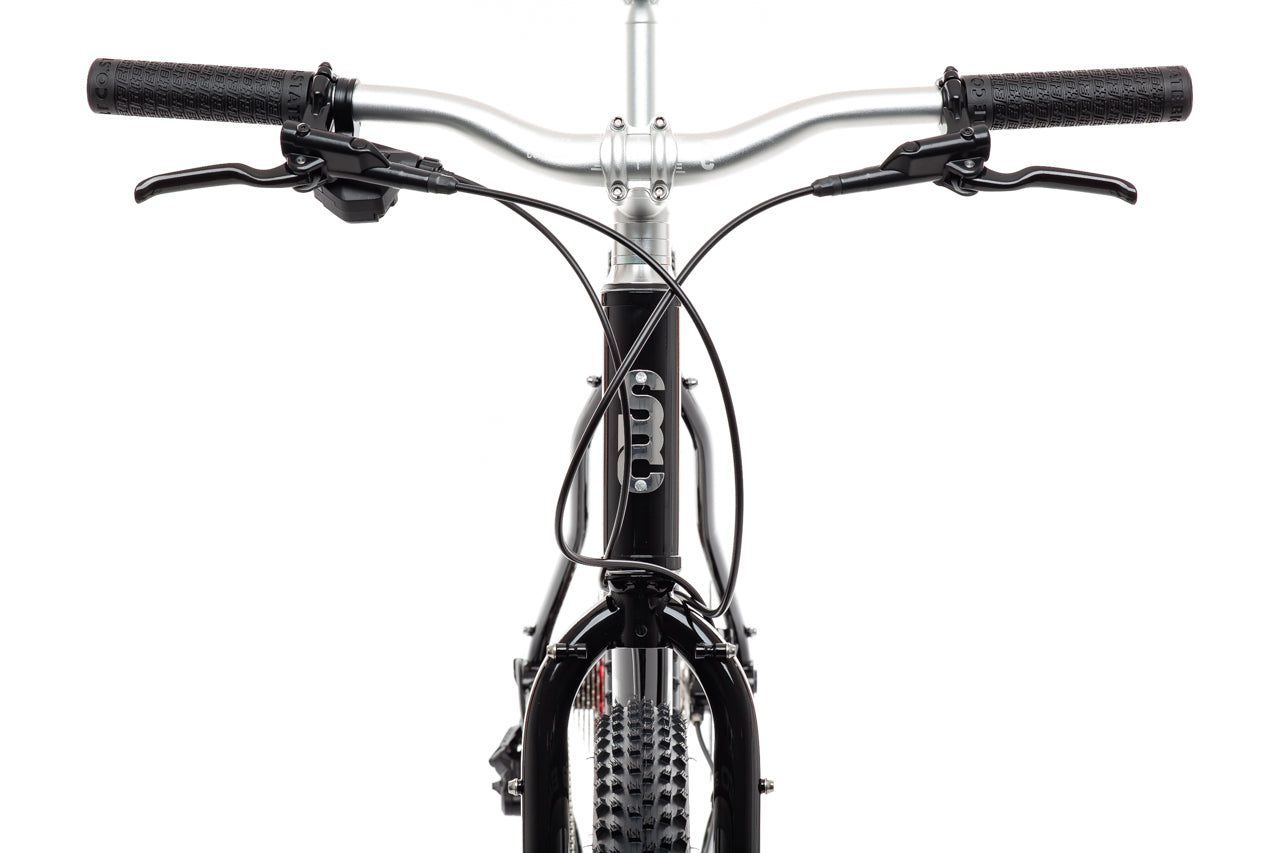

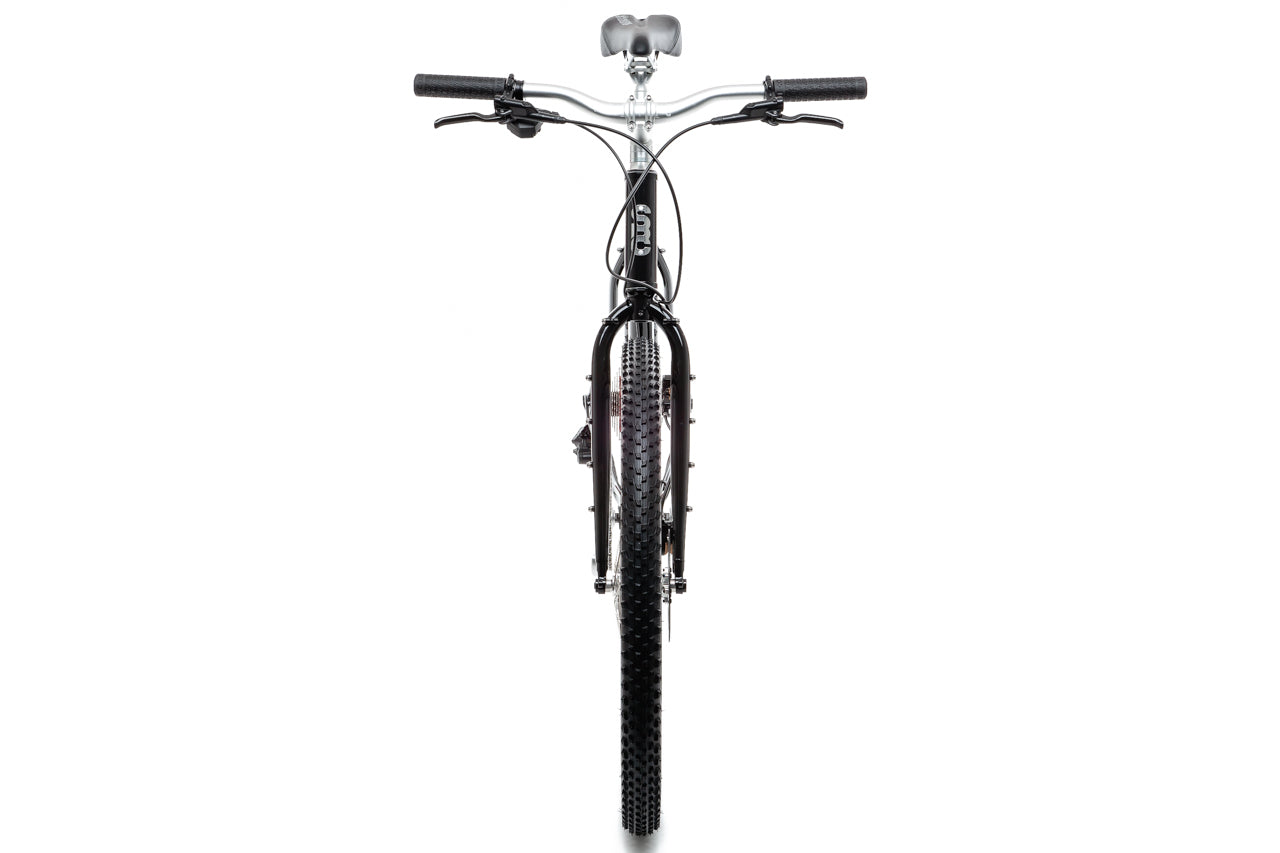

Black Stone State 4130 All-Road Flat Bar seen head on, showing the 630mm flat bar
630mm low rise flat bar, grips and hydraulic brake levers on the black State 4130 All-Road Flat Bar gravel bike

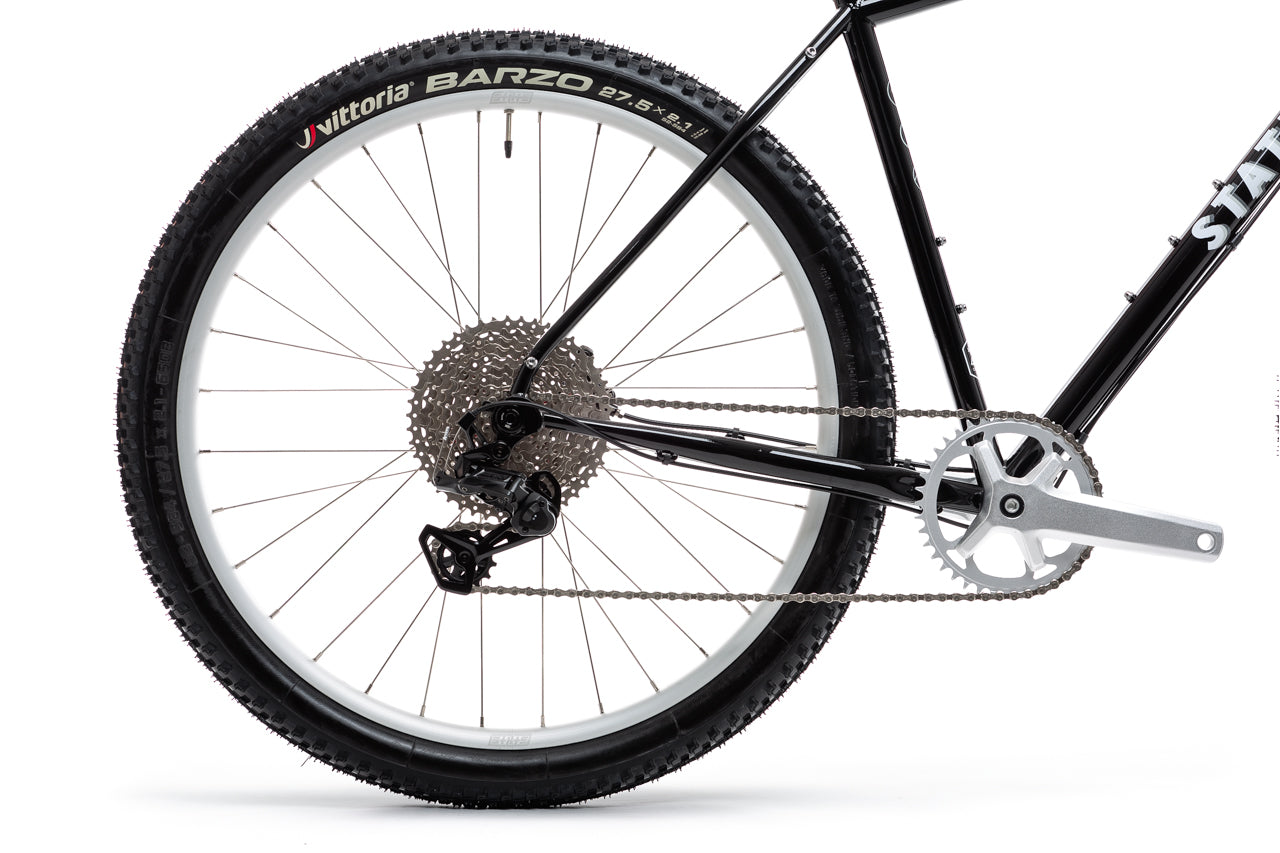

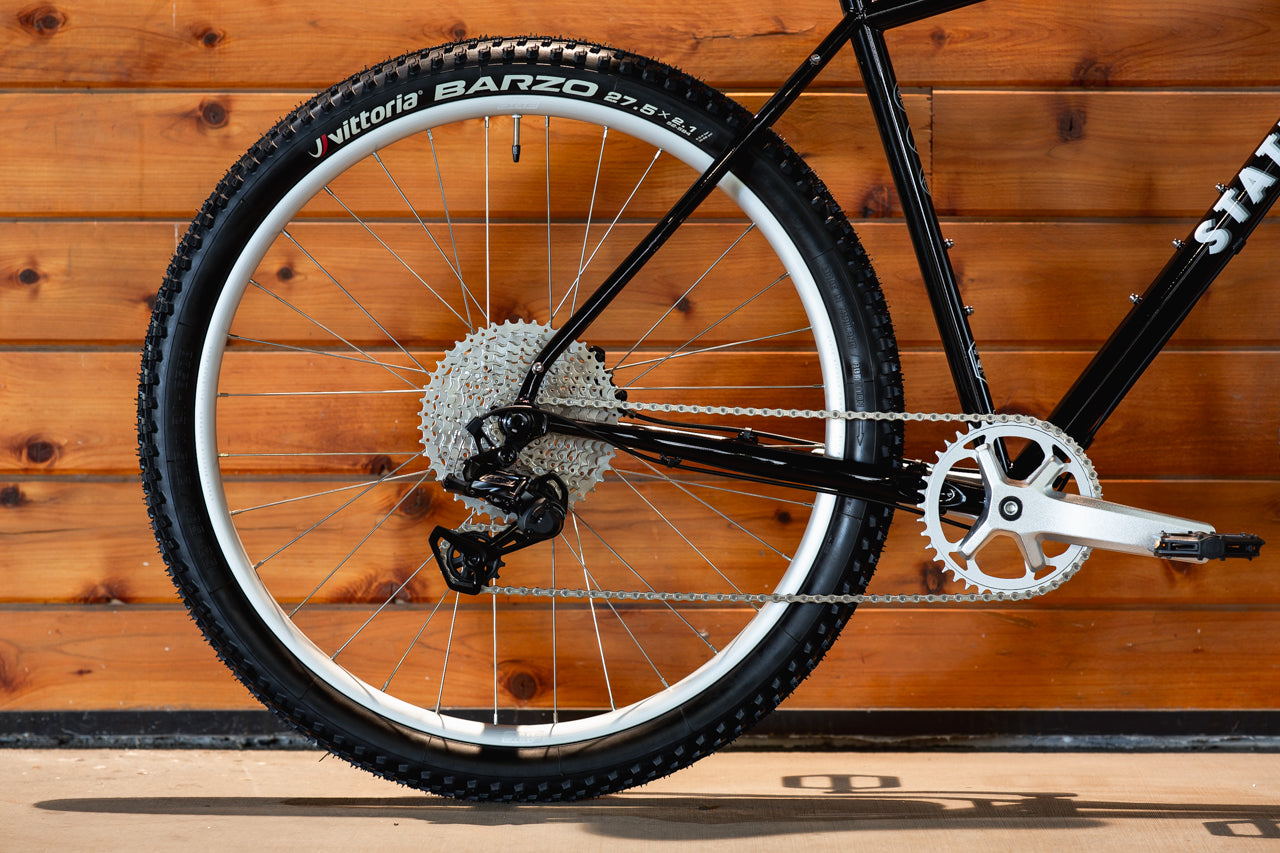

MicroShift Advent X 1x10 derailleur, 11 to 46T cassette and 40T crank on the Black Stone State 4130 All-Road Flat Bar

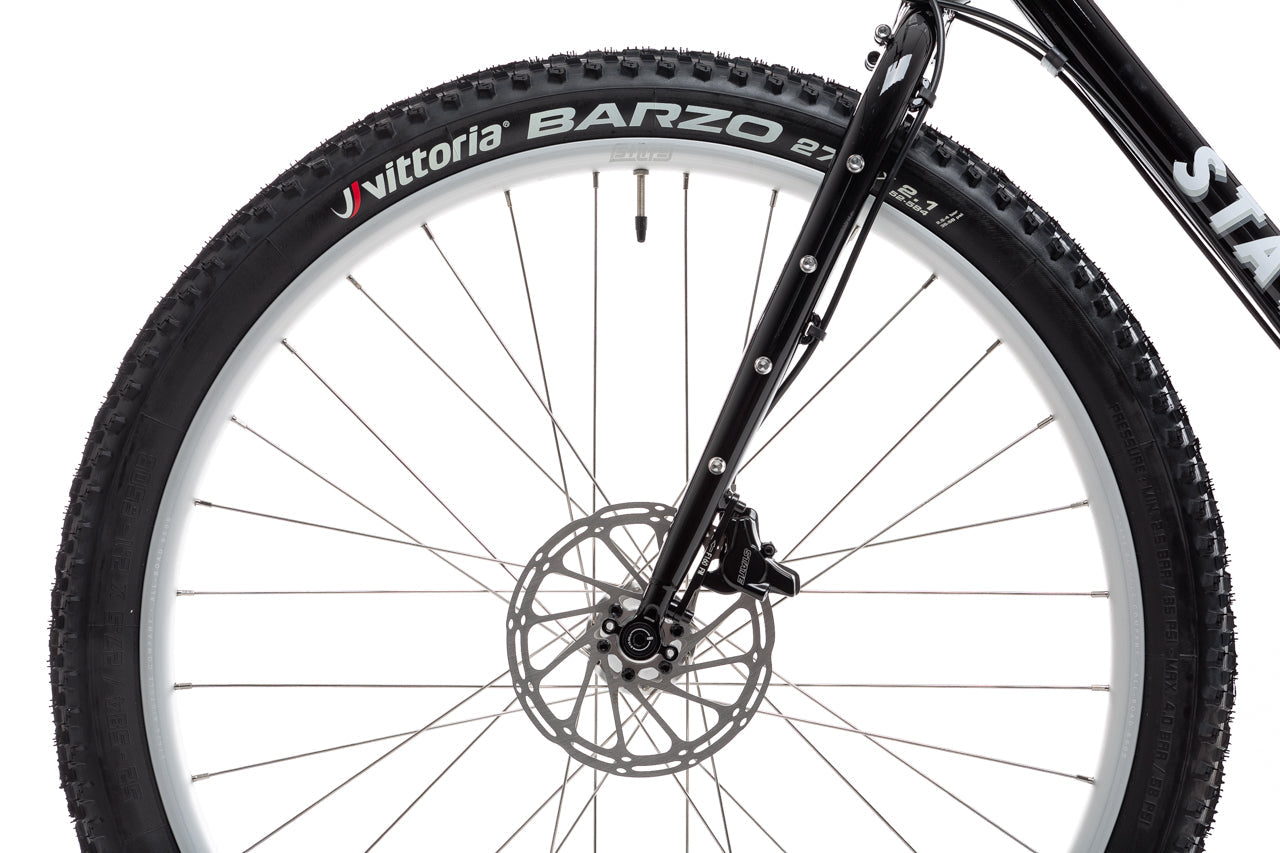

Vittoria Barzo 650b x 2.1 inch tire and 160mm hydraulic disc brake on the black State 4130 All-Road Flat Bar gravel bike

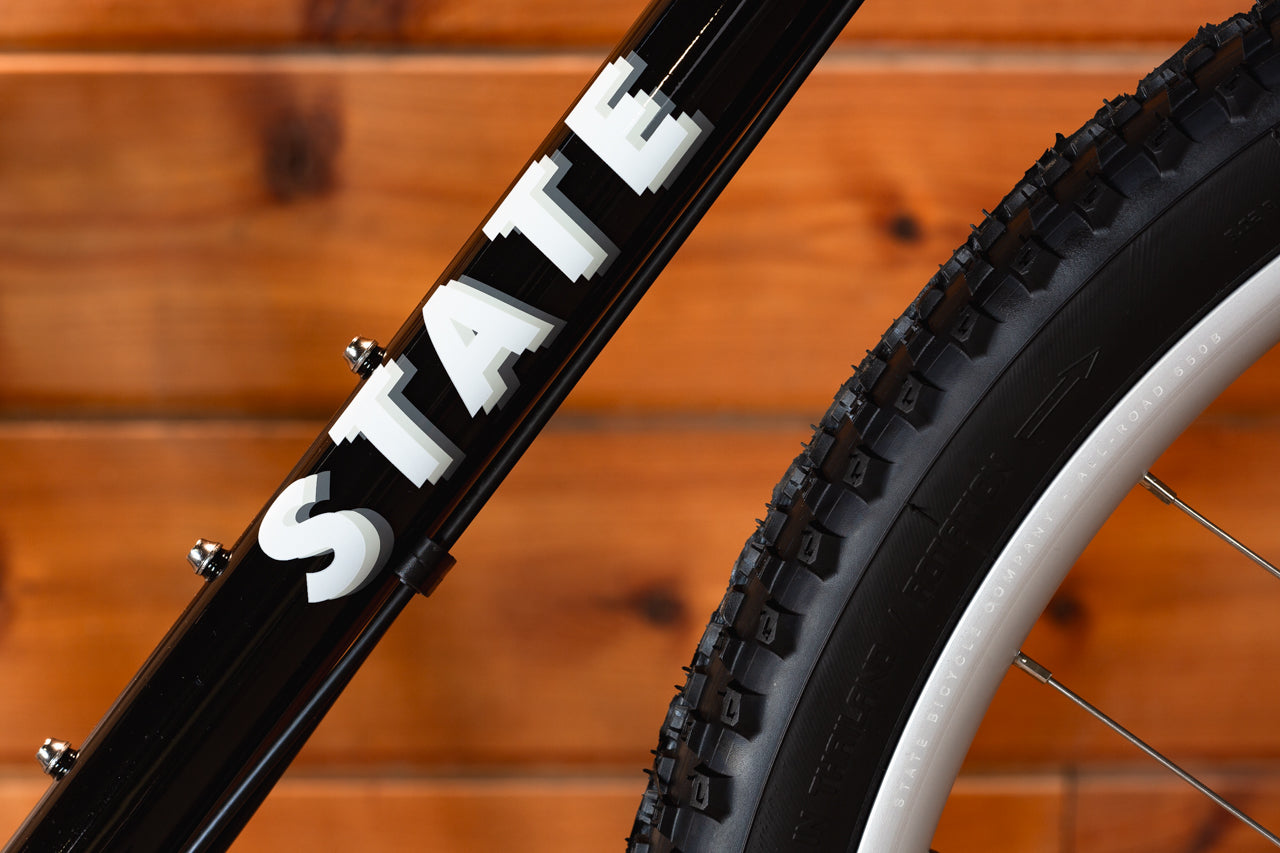

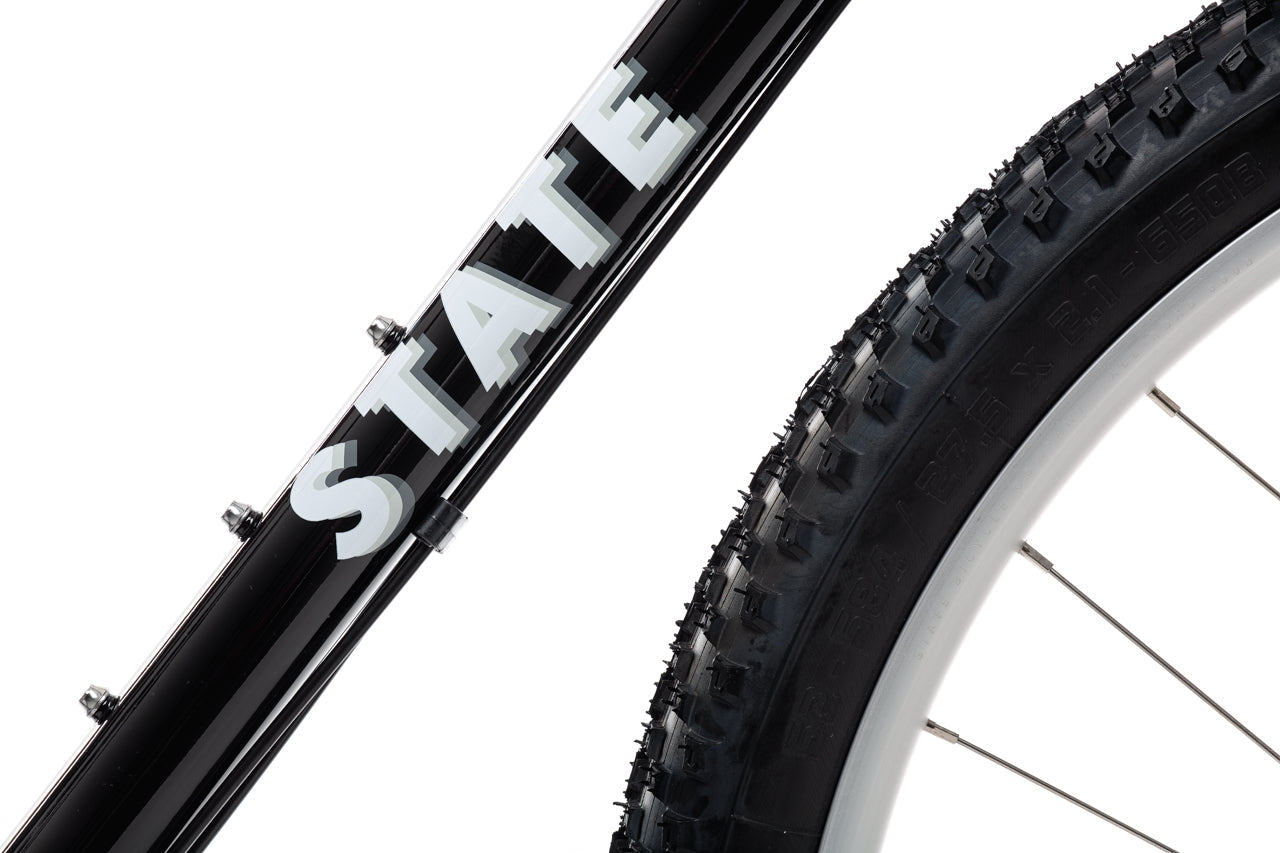

State Bicycle Co. logo on the black 4130 chromoly down tube beside the 650b Vittoria Barzo tire

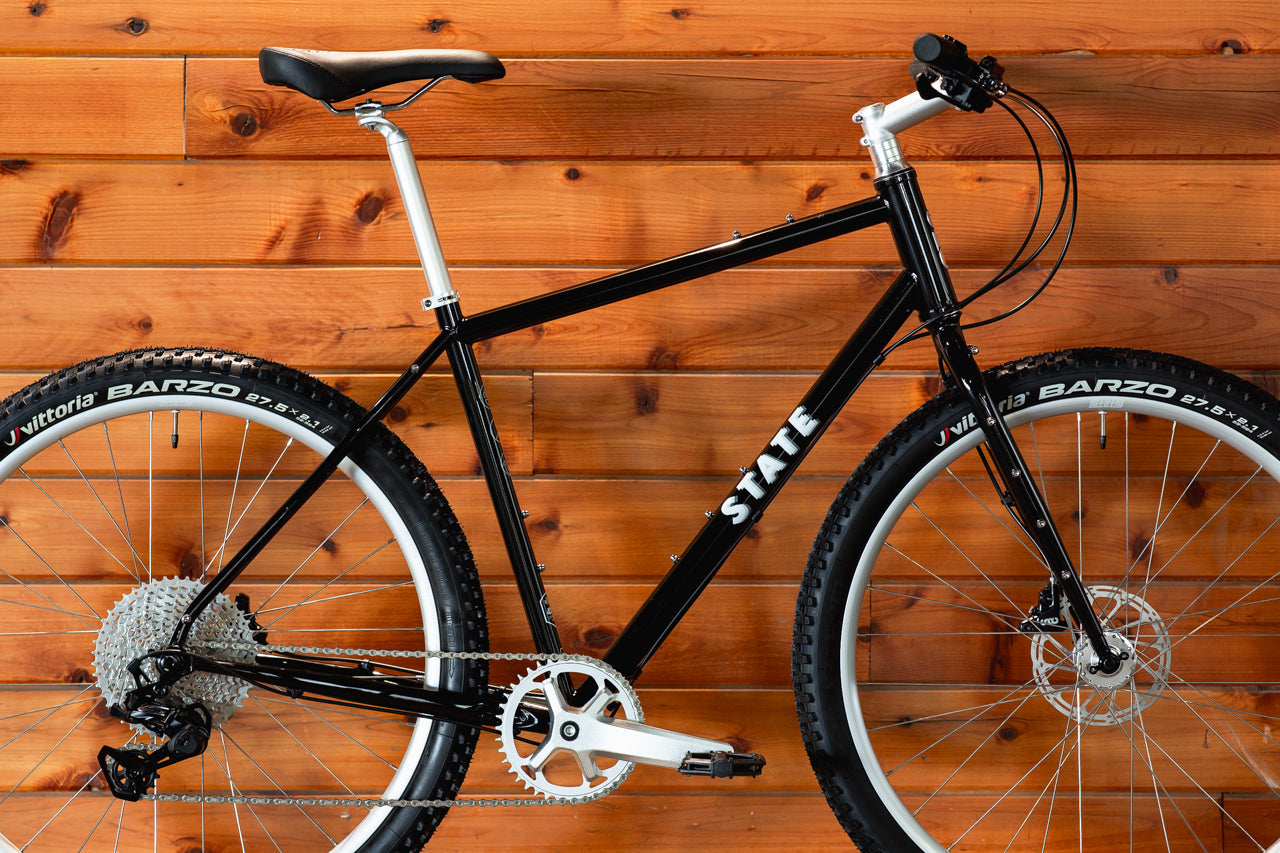

Black Stone State Bicycle Co. 4130 All-Road Flat Bar steel gravel bike against a wooden plank wall, wide view
Black Stone State Bicycle Co. 4130 All-Road Flat Bar steel gravel bike by a wooden plank wall, front three quarter view
Black Stone State Bicycle Co. 4130 All-Road Flat Bar steel gravel bike against a wooden plank wall, drive side
Black Stone State Bicycle Co. 4130 All-Road Flat Bar steel gravel bike close up against a wooden plank wall
Black Stone State Bicycle Co. 4130 All-Road Flat Bar steel gravel bike leaning on a wooden plank wall, rear three quarter view

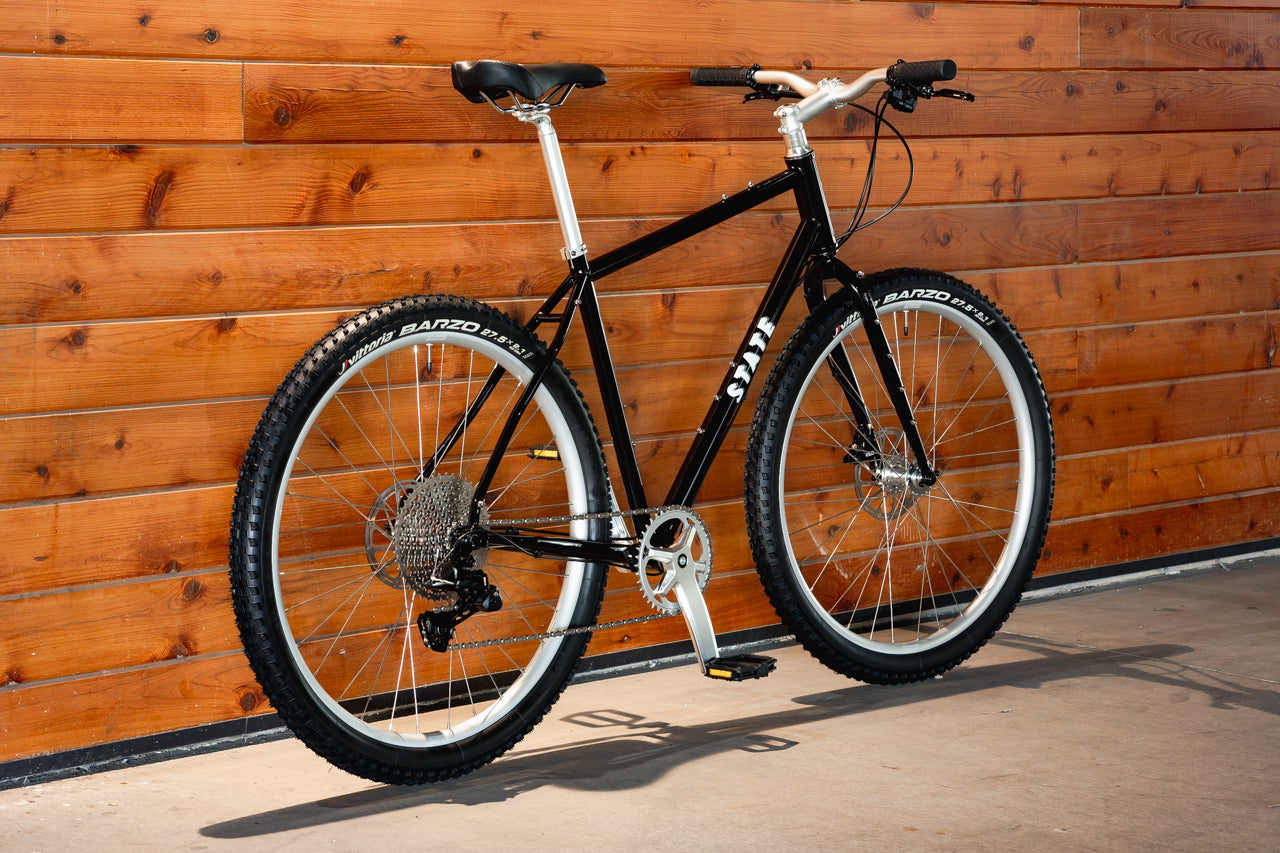

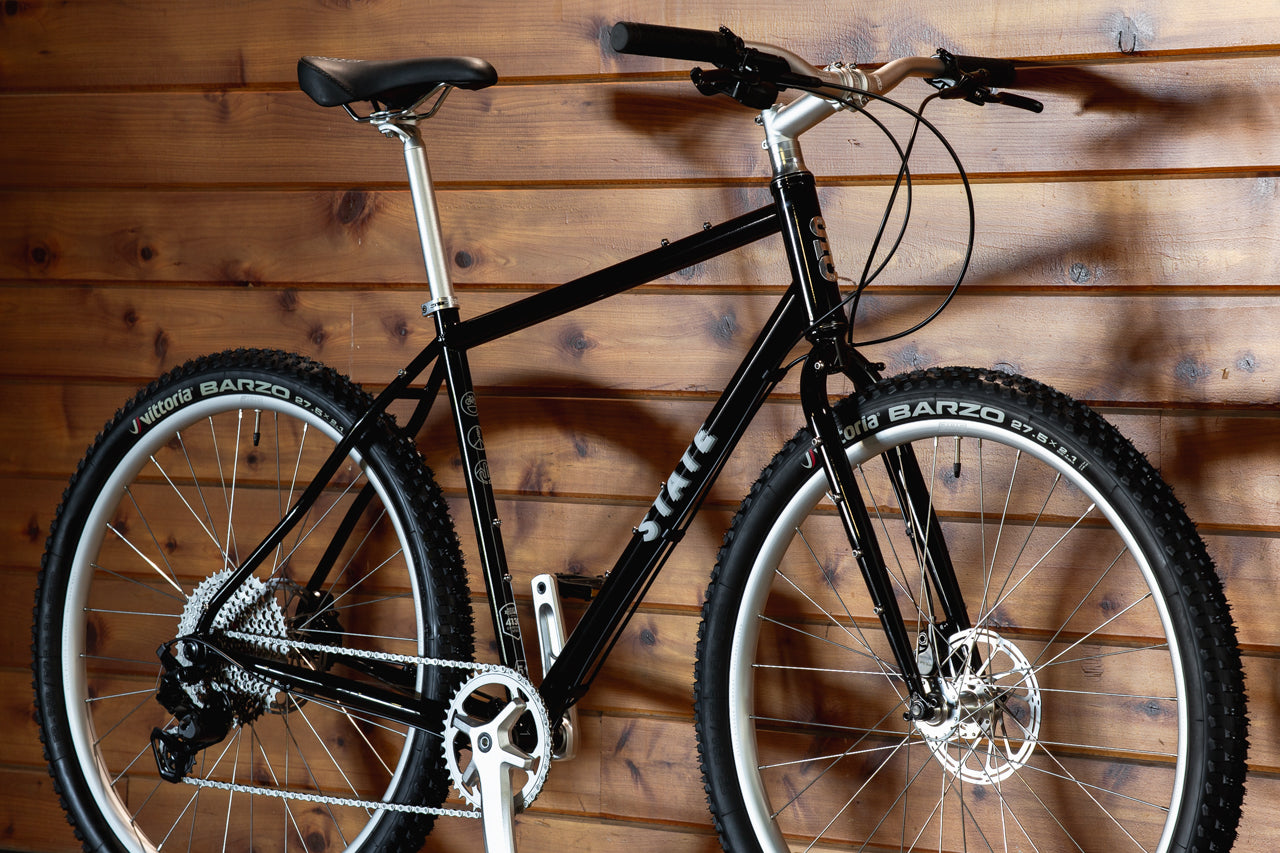

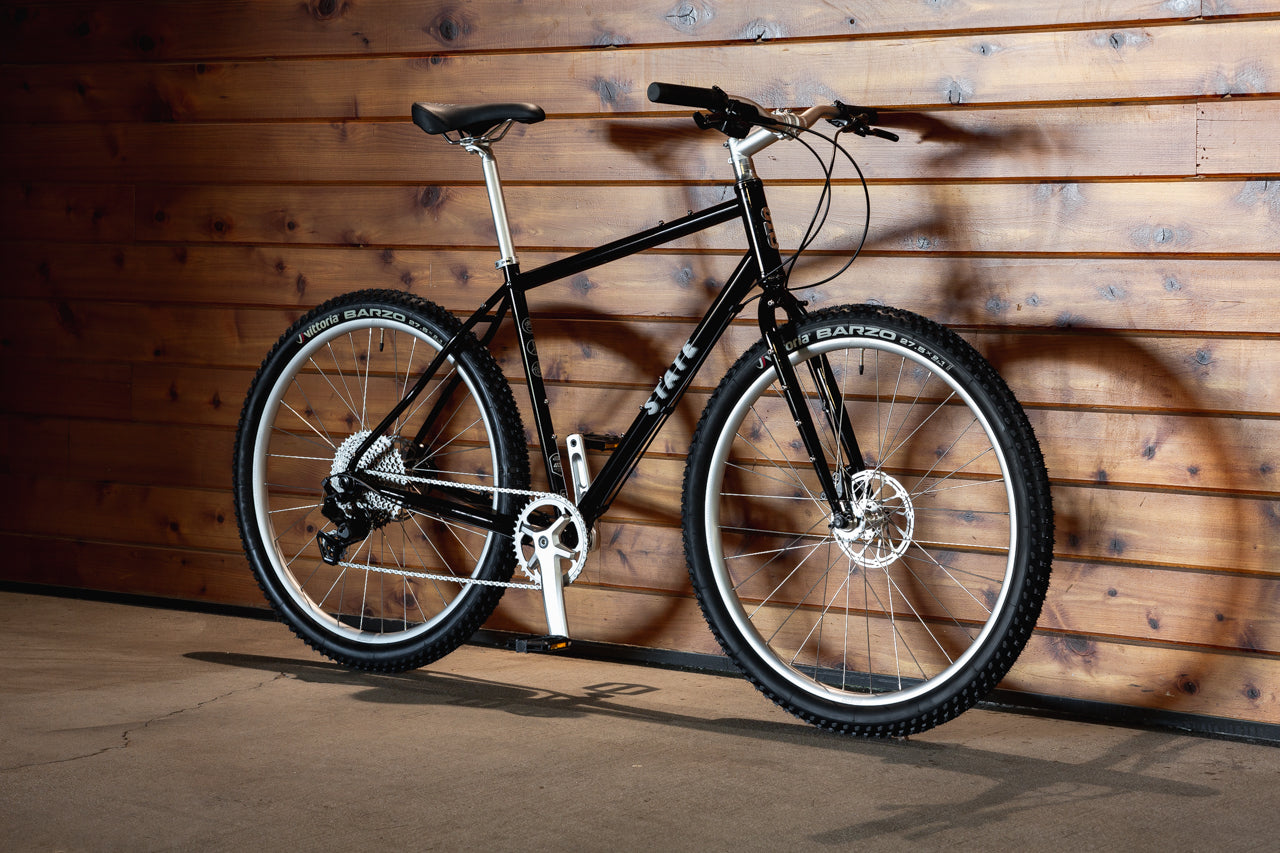

Low front three quarter view of the Black Stone State 4130 All-Road Flat Bar steel gravel bike at a wooden plank wall
Silver low rise flat bar, stem and saddle of the Black Stone State 4130 All-Road Flat Bar

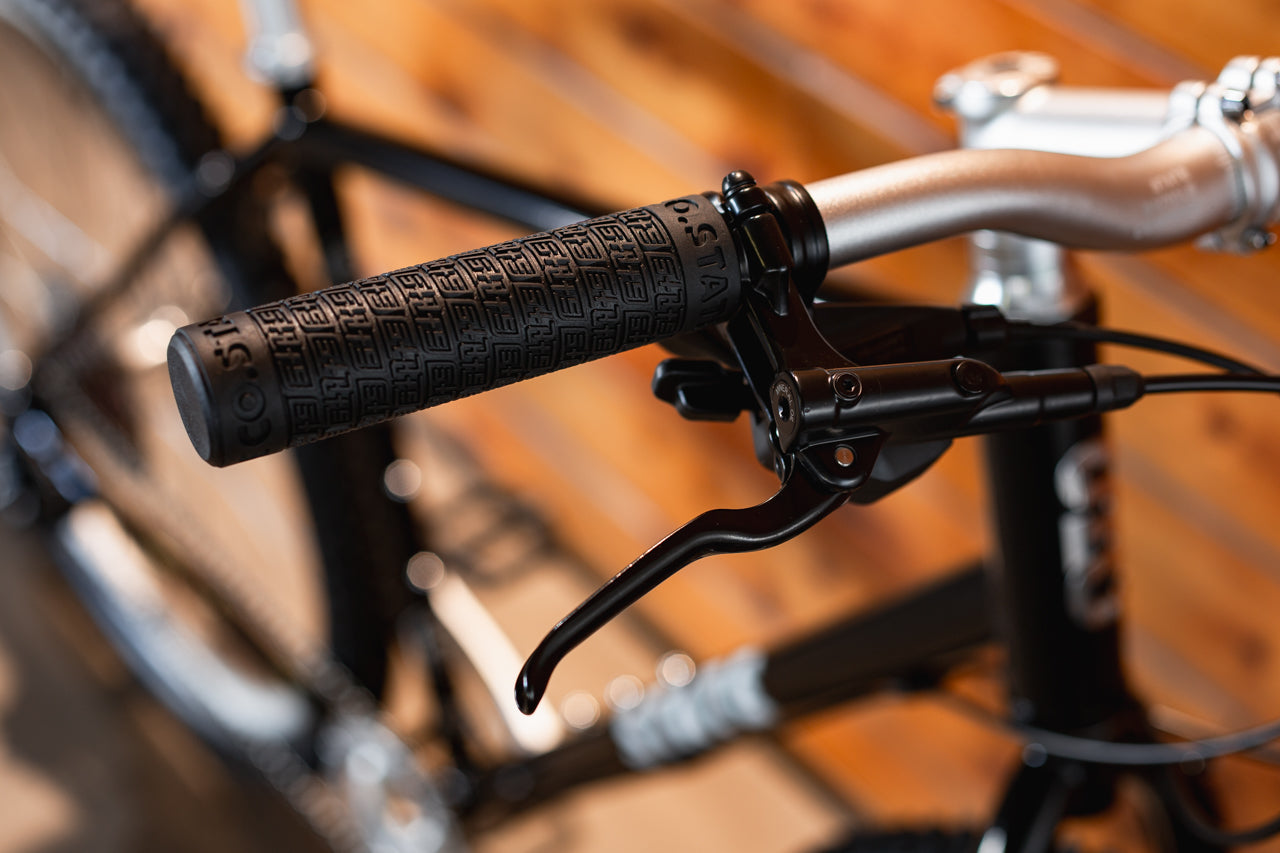

Grip and hydraulic brake lever on the flat bar of the black State 4130 All-Road gravel bike

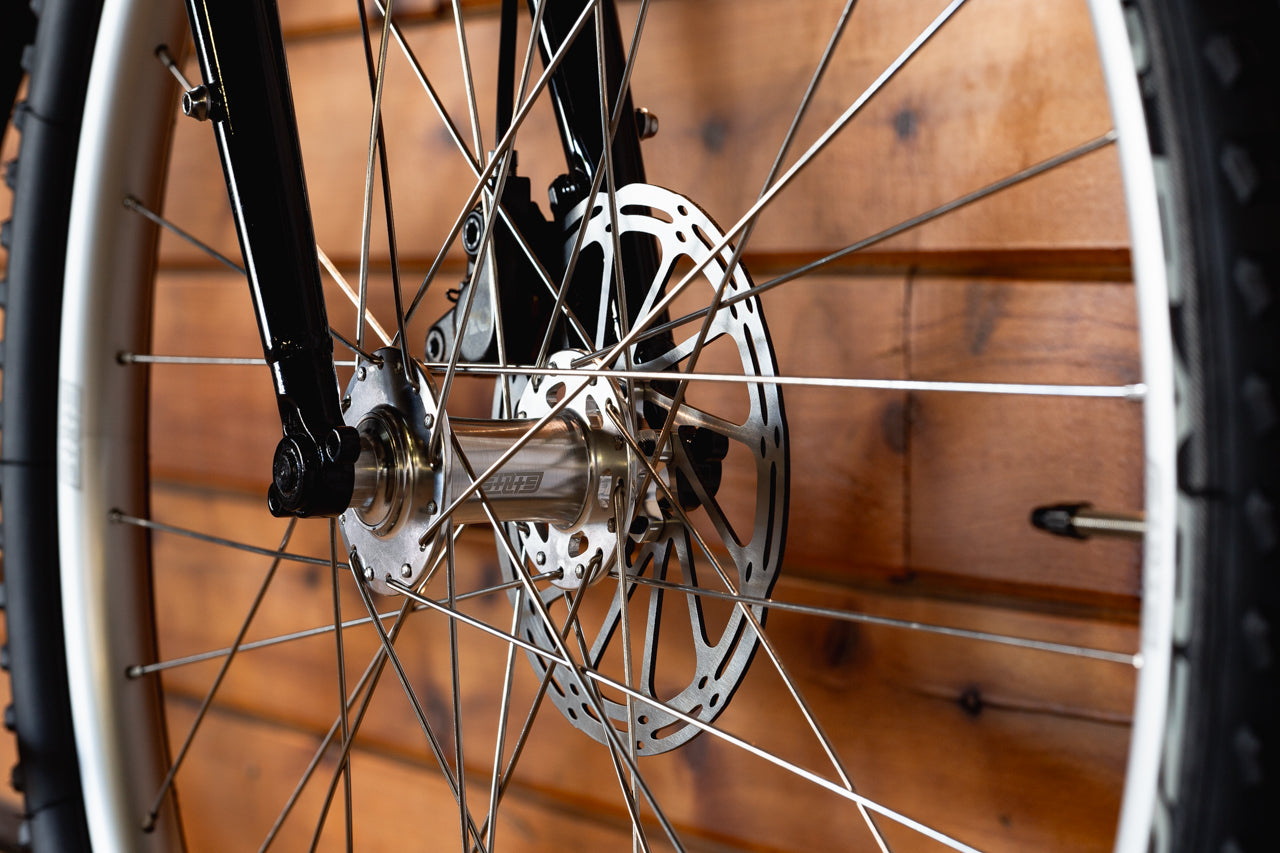

12mm thru axle front hub and disc rotor on the chromoly fork of the black State 4130 All-Road Flat Bar
10 speed cassette and derailleur on the Black Stone State 4130 All-Road Flat Bar steel gravel bike
State Bicycle Co. logo on the black 4130 chromoly down tube beside the knobby front tire

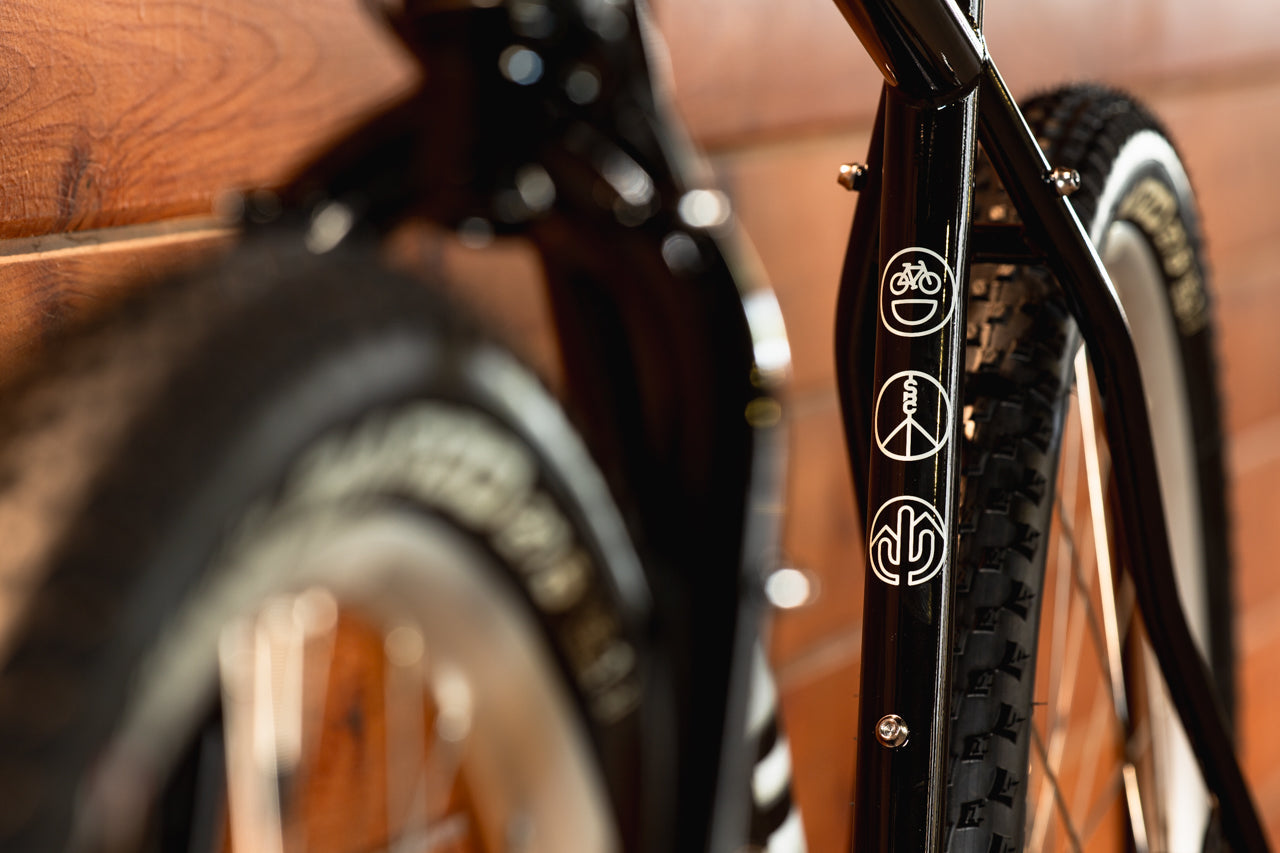

Seat tube artwork and frame mounts on the Black Stone State Bicycle Co. 4130 All-Road Flat Bar
State Bicycle Co. 4130 All-Road Flat Bar in Black Stone, a steel flat bar gravel bike, drive side profile
State 4130 All-Road Flat Bar gravel bike in Black Stone, front three quarter view
State 4130 All-Road Flat Bar gravel bike in Black Stone, rear three quarter view
Black Stone State 4130 All-Road Flat Bar seen head on, showing the 630mm flat bar
630mm low rise flat bar, grips and hydraulic brake levers on the black State 4130 All-Road Flat Bar gravel bike
MicroShift Advent X 1x10 derailleur, 11 to 46T cassette and 40T crank on the Black Stone State 4130 All-Road Flat Bar
Vittoria Barzo 650b x 2.1 inch tire and 160mm hydraulic disc brake on the black State 4130 All-Road Flat Bar gravel bike
State Bicycle Co. logo on the black 4130 chromoly down tube beside the 650b Vittoria Barzo tire
Black Stone State Bicycle Co. 4130 All-Road Flat Bar steel gravel bike against a wooden plank wall, wide view
Black Stone State Bicycle Co. 4130 All-Road Flat Bar steel gravel bike by a wooden plank wall, front three quarter view
Black Stone State Bicycle Co. 4130 All-Road Flat Bar steel gravel bike against a wooden plank wall, drive side
Black Stone State Bicycle Co. 4130 All-Road Flat Bar steel gravel bike close up against a wooden plank wall
Black Stone State Bicycle Co. 4130 All-Road Flat Bar steel gravel bike leaning on a wooden plank wall, rear three quarter view
Low front three quarter view of the Black Stone State 4130 All-Road Flat Bar steel gravel bike at a wooden plank wall
Silver low rise flat bar, stem and saddle of the Black Stone State 4130 All-Road Flat Bar
Grip and hydraulic brake lever on the flat bar of the black State 4130 All-Road gravel bike
12mm thru axle front hub and disc rotor on the chromoly fork of the black State 4130 All-Road Flat Bar
10 speed cassette and derailleur on the Black Stone State 4130 All-Road Flat Bar steel gravel bike
State Bicycle Co. logo on the black 4130 chromoly down tube beside the knobby front tire
Seat tube artwork and frame mounts on the Black Stone State Bicycle Co. 4130 All-Road Flat Bar
State Bicycle Co.

State Bicycle Co. 4130 All-Road Flat Bar, Black Stone | 10 Speed Steel Gravel Bike

Authorized Retailer Section - Header Only
Authorized Retailer
Authorized Retailer Section - Trust List & Modal
Fast & Free Shipping Contiguous U.S. Only (Excludes HI, AK, PR)
Easy Returns
Price Match Guarantee
No Sales Tax Outside NY
Flexible Financing Shop Pay
Pay over time. No impact to your credit score to apply.

Shop Pay How Financing Works

Get your bike now and pay over time. At checkout, simply select Shop Pay to split your total into smaller, manageable payments.

Flexible Plans Choose between 4 interest-free payments (every 2 weeks) or monthly installments up to 12 months.
No Credit Impact to Apply Checking your eligibility uses a "soft pull" and will not affect your credit score.
No Hidden Fees What you see at checkout is what you pay. No late fees or prepayment penalties.

Legal Disclaimer: Belcopia is an authorized retailer, but we are not a financing company. We do not issue credit, manage loans, or make approval decisions. All financing, eligibility checks, and payment plans are provided entirely and independently by Shop Pay and their lending partners (Affirm).

Authorized Retailer Section - Phone Section Only
Call Or Text A Specialist: 718.808.6415Text Mon - Fri, 9AM to 5PM EST
$899.99
/
Free Shipping For Order $200+
  • Ready to ship
  • Inventory on the way
Size
Protected Payment Logos
Secure Payment Processors

30 days to decide

Every State bike can come back within 30 days of purchase. It needs to be like new, unridden, and in its original packaging.

Not sure on size?

Call or text before you order and we will walk you through the fit chart. It is the question we get asked most.

Call 718.808.6415 Text us

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Shipping

Belcopia is committed to deliver the product in perfect condition at the address indicated by the customer in the checkout page. In order to optimize delivery, we thank the customer for indicating an address in which the order can be delivered within normal business hours.

Returns

Your money means nothing to us if you are unhappy with your purchase with us. Customer satisfaction with our products is important to us, which is why we do returns and refunds, if the customer is not satisfied with our products. Simply send us an email, contact us on live chat, or if it can’t wait, call us and we’ll make things right.

Return windows and terms are set by each brand. Most purchases made on our website can be returned after delivery — see our Brand Return Terms for the window and conditions that apply to your bike. In most cases the buyer is responsible for the cost of returning the product.

If you have any questions, please view our Shipping Policy page or Return Policy page.

Give us a call at (718) 808-6415, or email: support@belcopia.com.

We'll Match or BEAT that price!

Prepare the link to the same exact product on their store that you want on our store and give us a call (718) 808-6415

Full Manufacturer Backing: State Bicycle Co.
Every bike we sell carries State Bicycle Co.’s own Limited Warranty against manufacturing defects, from the date you receive it. It covers the original purchaser and is not transferable.

Standard coverage, on every bike:

  • 5 years, frame and fork: steel, aluminium and titanium frames and forks.
  • 1 year, carbon frame and fork: extended to 2 years under ProBuild, below.
  • 1 year, components: non-consumable parts — crankset, pedals, bars, stem, seatpost, wheels, hubs and carbon forks.
  • 18 months, eBike system: motor, electronics and battery.

ProBuild: optional, free, and worth doing
ProBuild is not something you buy and it is not required for your warranty to be valid. It is an upgraded tier State unlocks when any professional bike shop assembles the bike and you register it with State within 30 days of delivery. Your local shop counts.

  • Carbon frames and forks go from 1 year to 2 years.
  • Priority claim review, ahead of unregistered bikes.
  • Free or discounted shipping on approved warranty parts.
  • Discounted replacement pricing for up to 5 years, even when the damage is a crash rather than a defect.

What is not covered
Normal wear and tear on any bike: tires, tubes, chains, brake pads, grips, bar tape, saddles, spokes, and paint or cosmetic finish. Nor is crash and impact damage, improper assembly or adjustment, lack of maintenance, modifications, or incompatible parts. Shop labour is the rider’s responsibility under either tier. RAW finish steel frames are not covered against rust — that is the finish behaving as intended.

Hassle-free registration
Don’t sweat the paperwork. Email your proof of assembly and order details to support@belcopia.com and our team will handle the registration with State for you, so the ProBuild tier is active before you need it. You will need your serial number, which is engraved on the underside of the bottom bracket shell.

FrameDouble butted 4130 chromoly steel gravel frame with thru axles, a UDH hanger and fully external cable routing.
GearingMicroShift Advent X 1x10, a 40T narrow wide ring against an 11 to 46T cassette.
Tires650b wheels on 2.1 inch Vittoria Barzo knobbies, with room for up to 2.4 inch.
BrakesHydraulic disc brakes on 160mm rotors, front and rear.
SizesFour sizes, XS to L, for riders from 5'1" to 6'5". Full fit chart below.
CompareFit & sizeSpecificationWhat's in the Box

Fit

Find your size

Sizes overlap on purpose. Between two, the smaller rides more nimble and upright and the larger stretches you out. Every size shares a 450mm chain stay, a 75mm bottom bracket drop and a 45mm fork offset, so handling stays the same across the range.

Geometry
4130 All-Road Flat Bar

4130 All-Road Flat Bar Overview

The State Bicycle Co. 4130 All-Road Flat Bar in Black Stone is a steel flat bar gravel bike, and the simple way into the 4130 All-Road. A double butted chromoly frame, a 630mm flat bar with 25mm of rise, 650b wheels on 2.1 inch Vittoria Barzo knobbies, and a 10 speed drivetrain with nothing to charge and nothing to pair.

Every choice points the same way: fewer things to go wrong, fewer things to pay for. The cables run fully outside the frame, the bottom bracket is a threaded 68mm BSA with square taper cranks, and the hanger is UDH, so parts are easy to find and easy to fit. It is as happy in weekday traffic as it is on a dirt road you have never ridden.

Want drop bars instead? The drop bar State 4130 All-Road gravel bike runs a 12 speed drivetrain and your choice of 700c or 650b wheels.

Standards you can fix anywhere

A 68mm BSA threaded bottom bracket, square taper cranks, a 27.2mm seatpost and a 31.8mm bar clamp. Standards with decades of parts behind them, serviceable by any shop.

Thru axles front and rear, 12x100 and 12x142, on sealed bearing hubs. A UDH derailleur hanger, so a replacement after a crash is a part almost any shop can order. And every cable runs outside the frame, where you can see it, adjust it and replace it.

LONG, LOW AND SLACK

The chain stays are 450mm on every size. That long rear end puts your weight further forward between the wheels, so the bike tracks straight on loose surfaces and stays planted when it carries bags.

Up front, a 70.5 to 71.5 degree head angle lets the front wheel lead rather than dart, a 75mm bottom bracket drop sits your weight below the axles, and a 45mm fork offset on every size keeps the steering the same from XS to L. The result is a calm bike on a fire road descent.

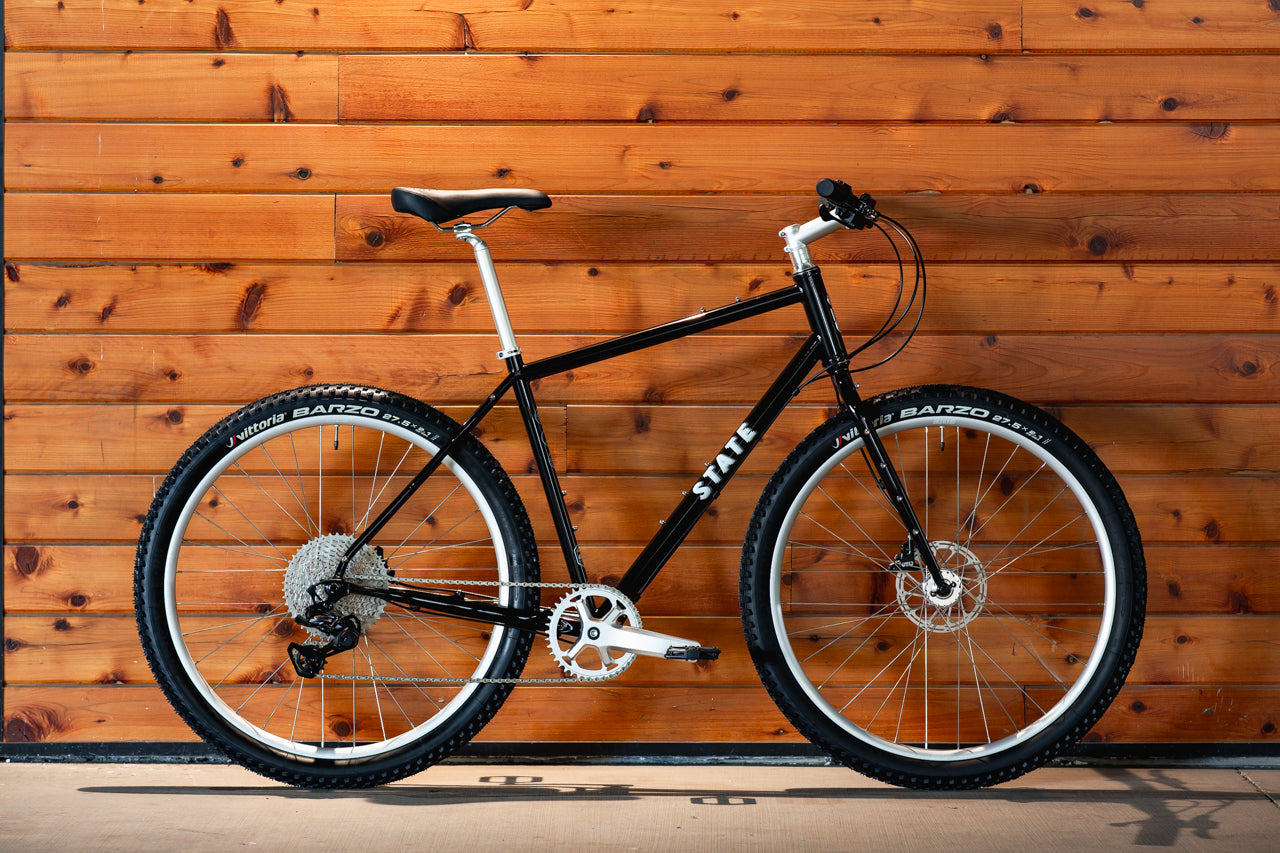

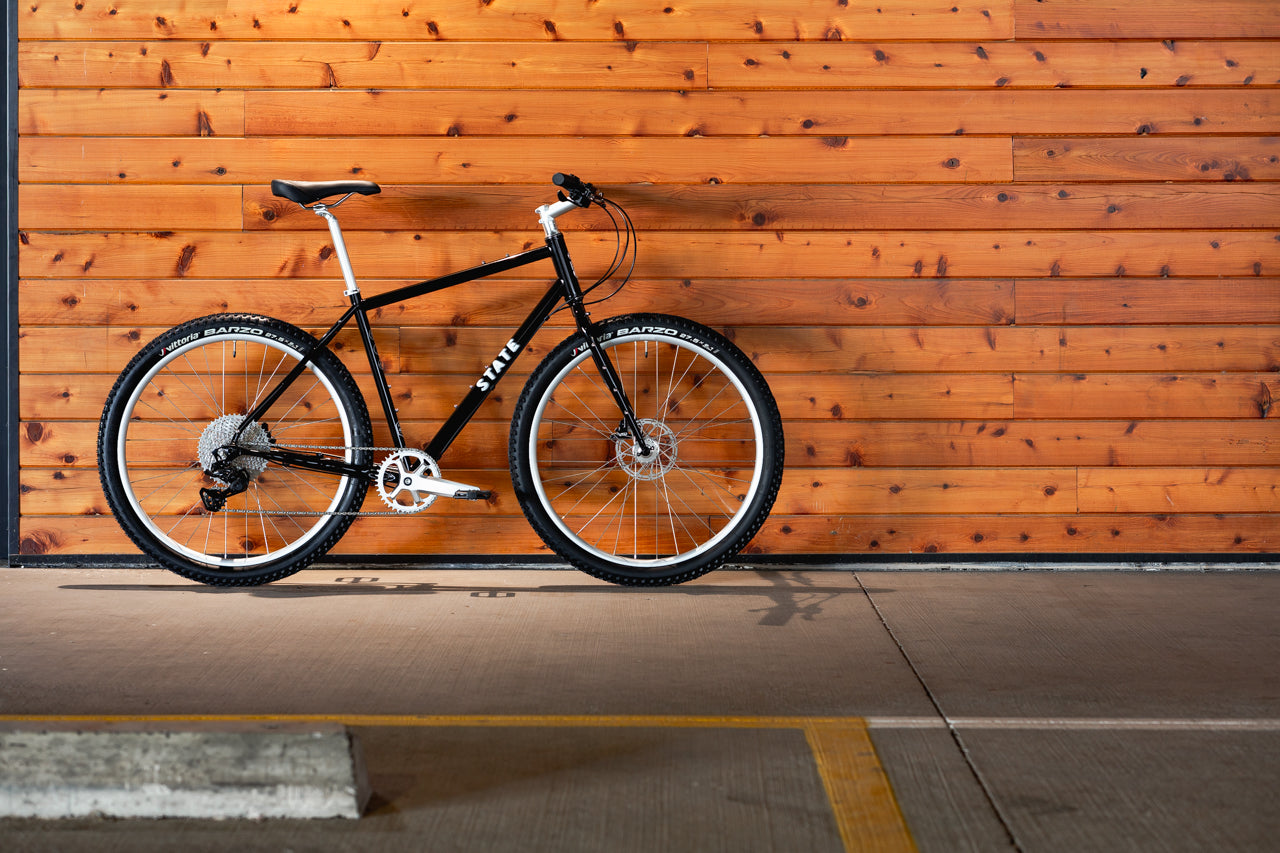

Black Stone State Bicycle Co. 4130 All-Road Flat Bar steel gravel bike against a wooden plank wall, drive sideLow front three quarter view of the Black Stone State 4130 All-Road Flat Bar steel gravel bike at a wooden plank wall

WHY A FLAT BAR GRAVEL BIKE

The bar is 630mm wide with 25mm of rise on a 31.8mm clamp. Width gives you leverage over the front wheel on loose ground, and the rise brings your hands up, which opens your back and takes weight off your wrists on a long day.

It also lets you see. Sitting upright in traffic, on a canal path or down a dirt road you have never ridden is worth more than the aerodynamics you give up.

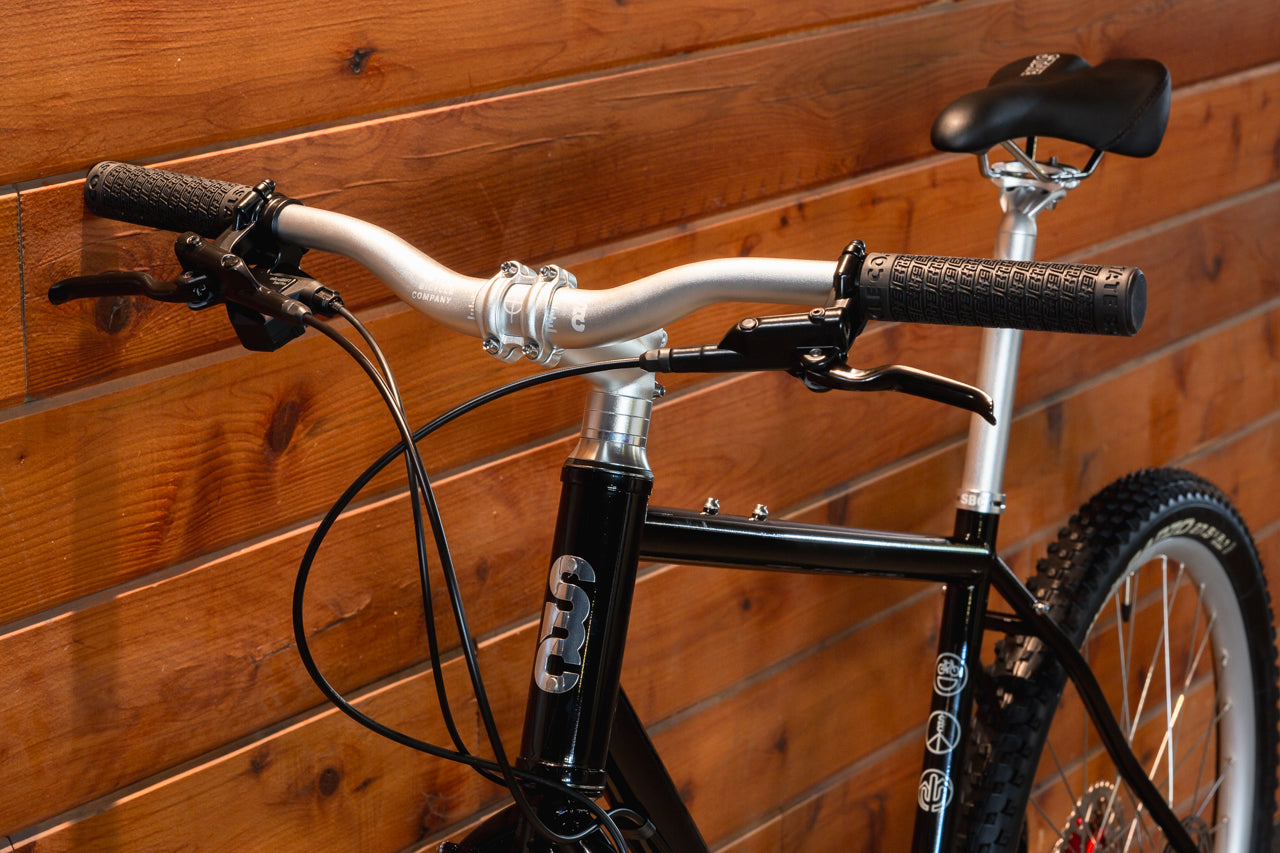

Silver low rise flat bar, stem and saddle of the Black Stone State 4130 All-Road Flat Bar630mm low rise flat bar, grips and hydraulic brake levers on the black State 4130 All-Road Flat Bar gravel bike
MicroShift Advent X 1x10

MicroShift Advent X 1x10

An 11 to 46T cassette gives 418% of range. The clutch keeps the chain quiet on rough ground, and the narrow wide 40T ring holds it on without a guide.

Hydraulic Discs, Thru Axles

Hydraulic Discs, Thru Axles

Sealed hydraulic brakes on 160mm rotors front and rear, with 12mm thru axles and sealed bearing hubs.

Vittoria Barzo 2.1 Inch

Vittoria Barzo 2.1 Inch

Real off road tread on 650b wheels, with room for up to 2.4 inch, or 2.25 inch on a separate 700c wheelset.

Double Butted 4130 Chromoly

Double Butted 4130 Chromoly

Thicker tube walls at the welded ends where stress concentrates, thinner through the middle. Strength where it matters, weight shed everywhere else.

Frame Double butted 4130 chromoly steel, UDH dropouts, 12x142mm thru axle
Fork 4130 chromoly steel, 12x100mm thru axle
Cable routing Fully external
Bottom bracket 68mm BSA threaded
Headset SBC 1 1/8 inch threadless, steel
Shifter MicroShift Advent X, 1x10
Rear derailleur MicroShift Advent X, 10 speed
Cassette 11 to 46T, 10 speed
Crankset SBC 40T narrow wide, aluminum, square taper
Chain 10 speed
Brakes Hydraulic disc, flat mount, 160mm rotors front and rear
Rims 650b double wall, 32 hole
Spokes Stainless steel, 14 gauge
Hubs Sealed bearing, 12x100mm front and 12x142mm rear thru axle
Tires Vittoria Barzo, 650b x 2.1 inch. Not rated tubeless
Tire clearance 650b up to 2.4 inch (60mm). 700c up to 2.25 inch (57mm), on a separate wheelset
Handlebar SBC low rise aluminum, 630mm wide, 25mm rise, 31.8mm clamp
Stem SBC 3D forged alloy, 31.8mm clamp
Grips 135mm TPE
Seatpost SBC aluminum, 27.2mm x 350mm
Saddle PU pad with microfiber cover and steel rails
Pedals Nylon flat pedals, included
— Frame geometry — XS / S / M / L
Chain Stay 450mm / 450mm / 450mm / 450mm
Effective Top Tube 510mm / 535mm / 550mm / 575mm
Fork Offset 45mm / 45mm / 45mm / 45mm
Head Tube 125mm / 145mm / 165mm / 185mm
Head Tube Angle 70.5° / 71° / 71.5° / 71.5°
Seat Tube 430mm / 470mm / 510mm / 550mm
Seat Tube Angle 75° / 74.5° / 73.5° / 73°
— Rider height — 5'1" - 5'6" / 5'5" - 5'10" / 5'9" - 6'2" / 6'1" - 6'5"

WHAT'S IN THE BOX

4130 All-Road Flat Bar

The complete bike on 650b wheels, with the 2.1 inch Vittoria Barzo tires already fitted.

Flat Pedals

Nylon flat pedals come in the box, so there is nothing extra to buy before the first ride.

Belcopia Support

We are an authorized State Bicycle Co. dealer, so the warranty is the real one and we can get you parts.

Questions before buying

Why a flat bar gravel bike instead of drop bars?

Flat bars give you leverage and an upright position. This one is 630mm wide with 25mm of rise, so you get more control over the front wheel on loose ground and less weight on your wrists. If you want drops, the drop bar State 4130 All-Road gravel bike runs a 12 speed drivetrain and a choice of 700c or 650b wheels.

Is 10 speed enough?

For range, yes. The 11 to 46T cassette gives 418% of range: a climbing gear for loaded dirt and enough at the top for a fast flat section. More speeds would give smaller steps between gears, not more range, and they cost more every time you replace a chain or cassette.

Are the tires tubeless?

The Vittoria Barzo tires are not rated tubeless. It may be possible to set them up that way, but State cannot guarantee it and recommends professional assembly for any tubeless setup.

Can I fit bigger tires or 700c wheels?

Yes. The frame clears 650b tires up to 2.4 inch (60mm), more than the 2.1 inch it ships on. It also takes 700c tires up to 2.25 inch (57mm), though that needs a separate wheelset.

Which size State 4130 All-Road Flat Bar should I choose?

XS fits riders 5'1" to 5'6", S 5'5" to 5'10", M 5'9" to 6'2" and L 6'1" to 6'5". The sizes overlap on purpose. Between two, the smaller one rides more nimble and upright, and the larger one stretches you out. Reach, stack and standover for every size are in the fit chart.

What does UDH mean?

Universal Derailleur Hanger. It is a shared standard, so a replacement hanger is available at almost any shop, with no proprietary part to track down after a crash on a trip. It also leaves a clear path to newer drivetrains later.
