The Cyrusher Ranger 2.0 is a full suspension fat tire electric mountain bike with a step over frame: a 52V 750W Bafang hub motor in the rear wheel, a torque sensor that matches the assist to how hard you pedal, and a 52V 20Ah battery of LG cells, 1040Wh, sealed inside the down tube. Cyrusher rates it at 28 MPH and up to 75 miles.
A four bar rear linkage with a DNM air shock and a dual crown fork with 60mm of travel carry it over roots, rocks and sand on 26 x 4 Chaoyang puncture resistant tires. Tektro four piston hydraulic brakes stop it, and a Shimano 9 speed covers the climbs. It weighs 87 lb and carries 350 lb.
The step over frame gives a 28 inch standover and a 19.3 inch reach, and one size fits riders 5'7" to 6'6". Want the same bike with a frame you step through? That is the Trax 2.0.
Built to be lived with
A 6061 aluminium step over frame with the battery inside, a four bar rear linkage on a DNM air shock, a dual crown fork with lockout, a 170mm 52T forged crank on a KMC chain and 12 gauge stainless spokes. Chaoyang 26 x 4 tires on alloy rims.
A 3.7 inch colour display, throttle, LED headlight with horn, kickstand and sport saddle on a 33.9mm post all come on the bike. Certified to UL 2849 and UL 2271. Frame, motor and controller are covered for two years, battery and parts for one.

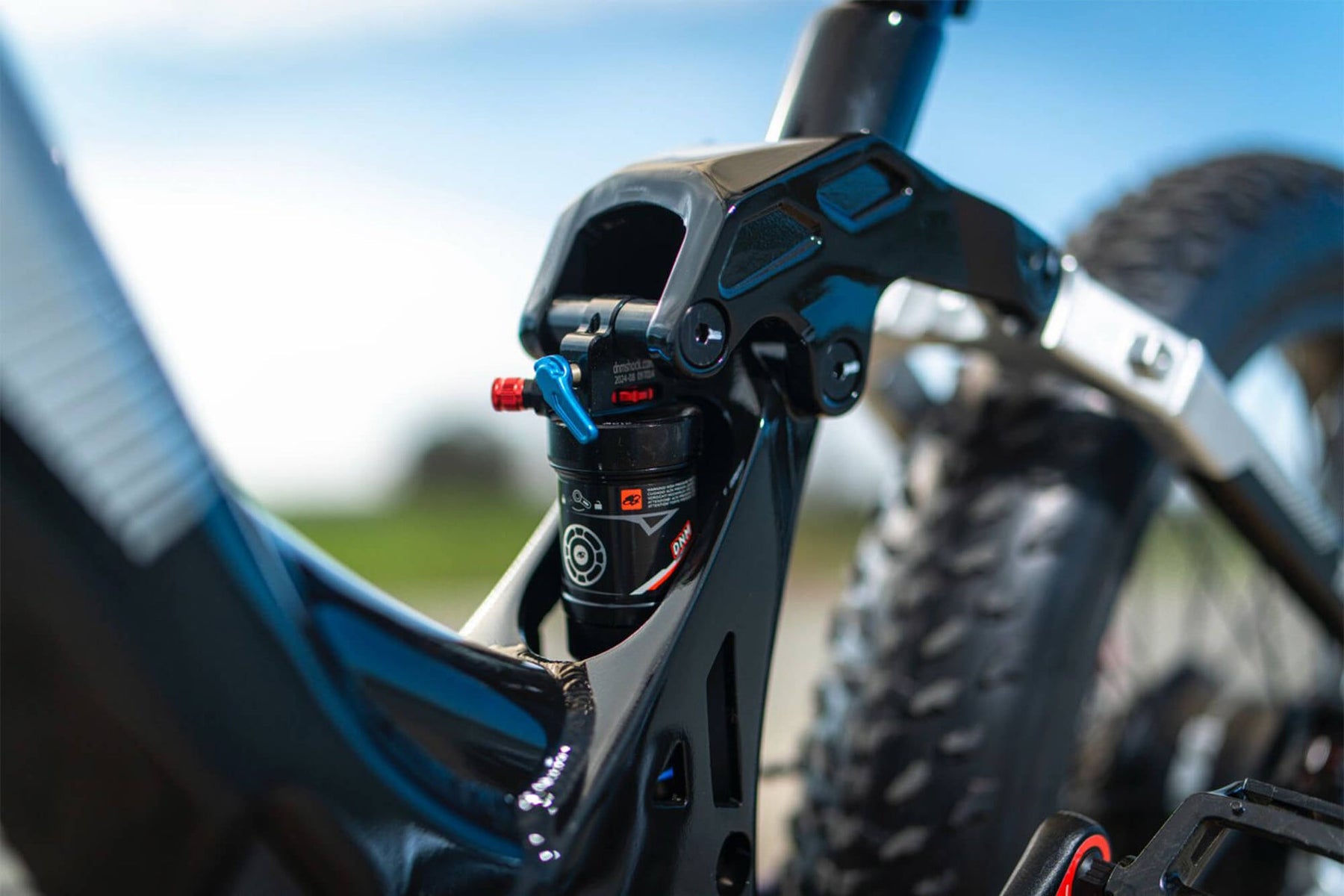

The Ranger 2.0 hangs its rear wheel on a four bar linkage with a DNM air shock under the seat. Up front is a hydraulic dual crown fork with 60mm of travel and a lockout for pavement. Together they keep both 26 x 4 Chaoyang tires planted over roots, rocks and sand instead of bouncing you off the saddle.
The frame is 6061 aluminium with the 52V battery inside the down tube, a 28 inch standover and a 19.3 inch reach. Cyrusher fits it to riders from 5'7" to 6'6" on one size, with the saddle adjusting from 34 to 39 inches. The whole bike is rated to carry 350 lb.

The rear hub is a 52V 750W Bafang. A torque sensor reads how hard you press on the pedals and adds power in proportion, so the bike feels like your own legs on a good day instead of a switch that is either on or off. A throttle is there when you want to stop pedalling.
Pedal assist level 5 reaches 28 MPH. The 52V 20Ah battery charges in 5 to 7 hours on the 52V 3A charger and is rated for 800 cycles. Cyrusher sells it as Class 2 or 3, so where you can ride at the top end depends on your local rules.

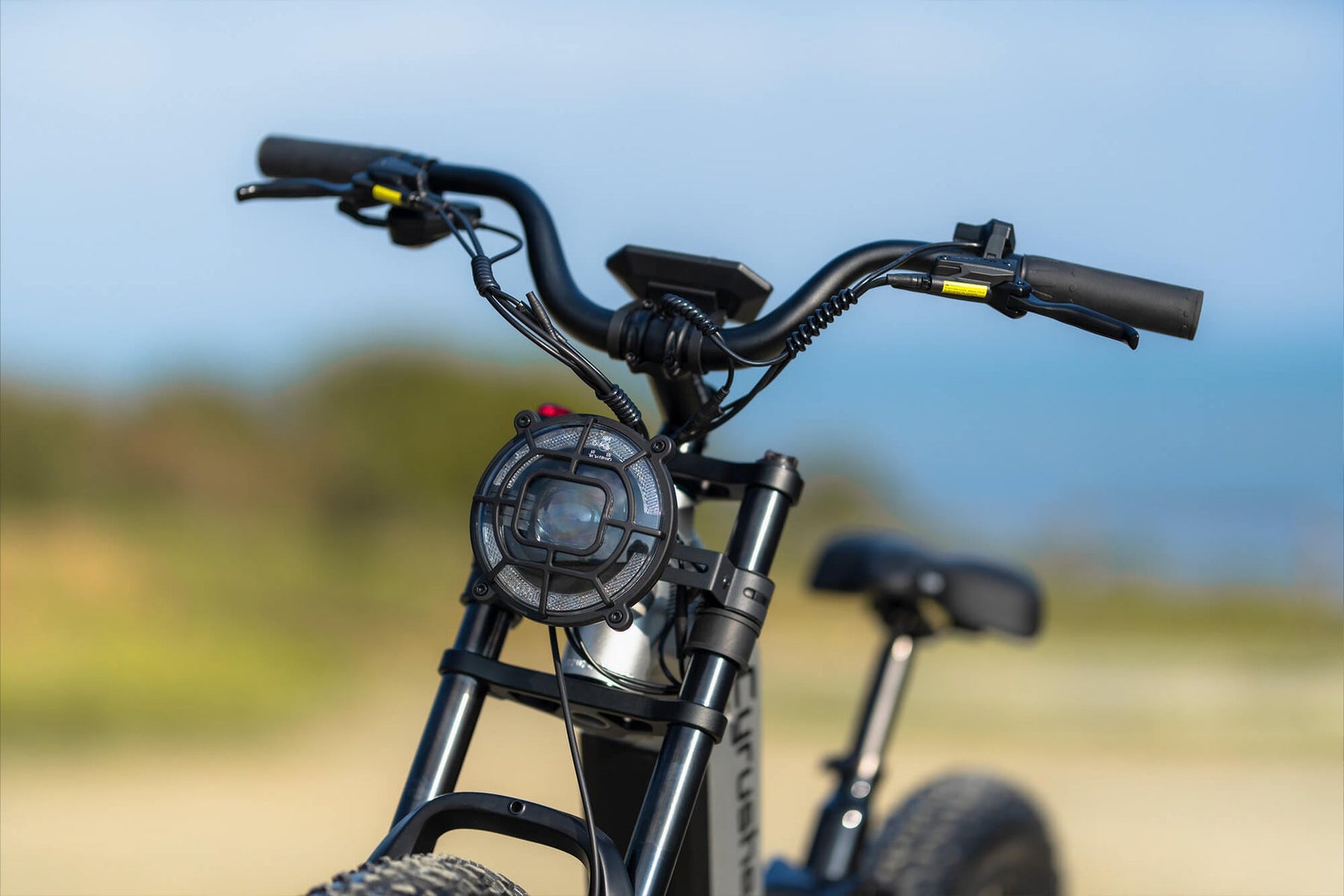

Motorcycle style LED headlight, 1000 lumens by Cyrusher, with a horn built in for traffic and dark trails.

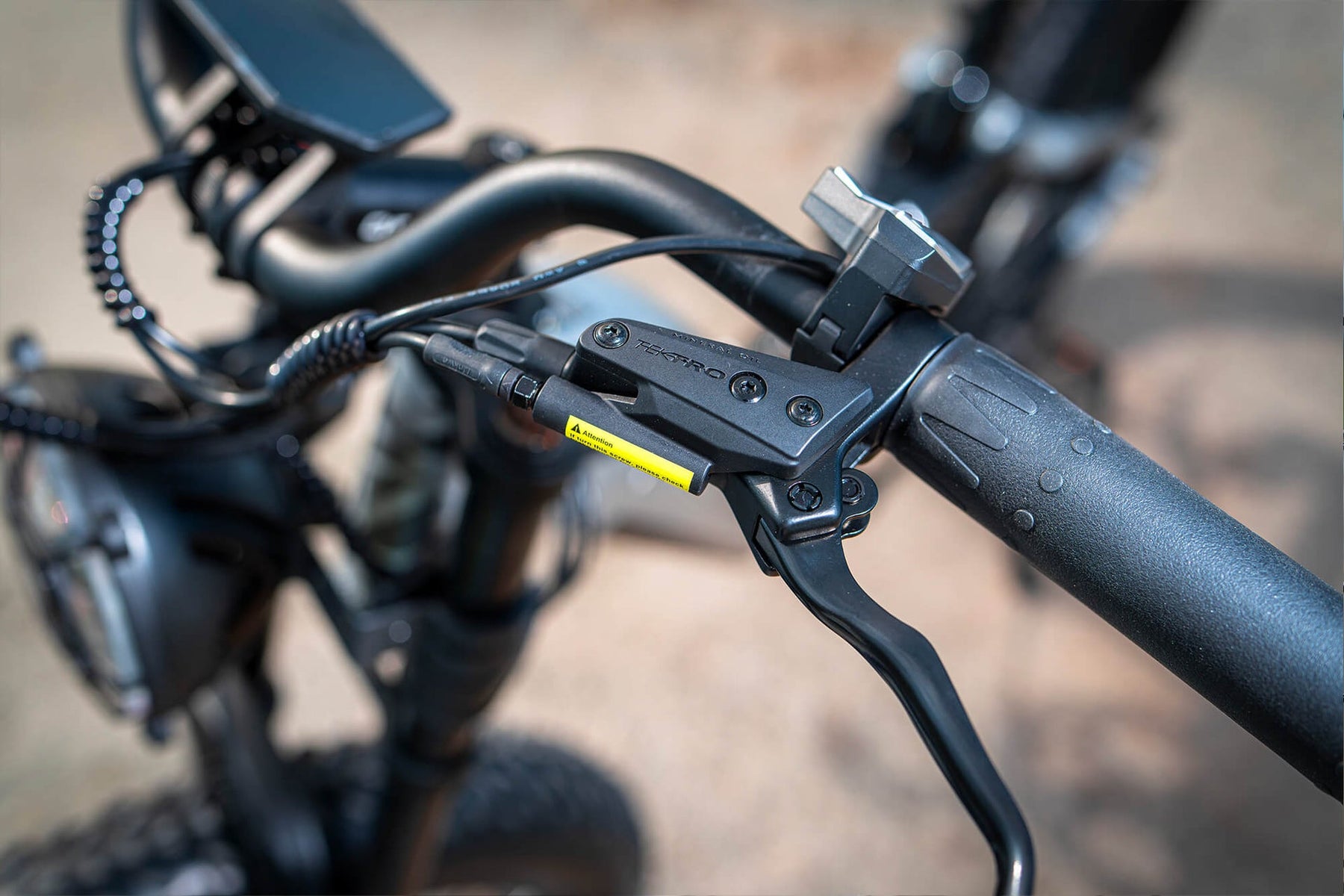

Tektro HD-E3940 four piston hydraulic discs front and rear, with the stopping power an 87 lb bike needs on a descent.

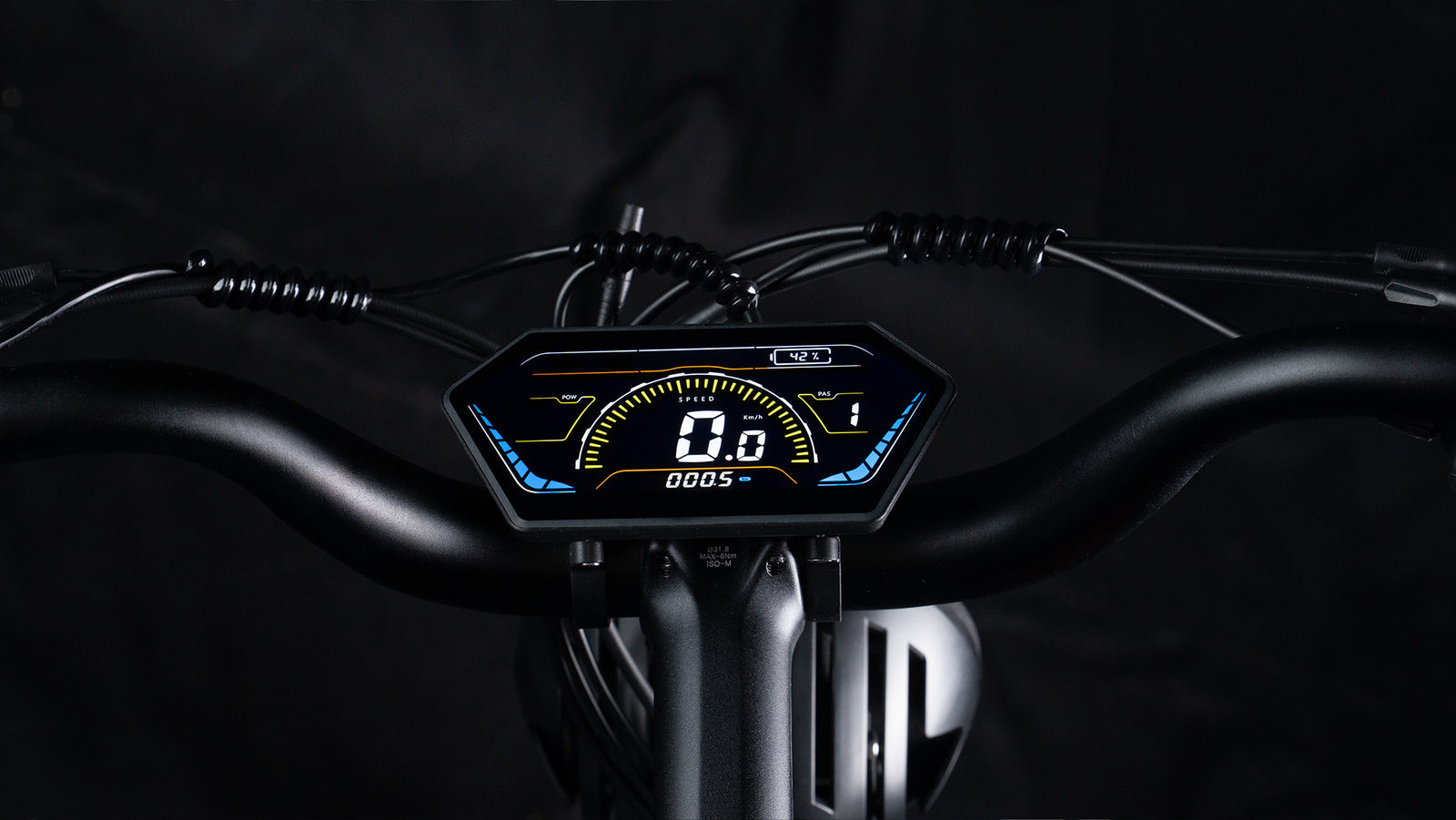

Gear, speed, assist level and battery on a 3.7 inch colour screen, readable at a glance on fast rides.

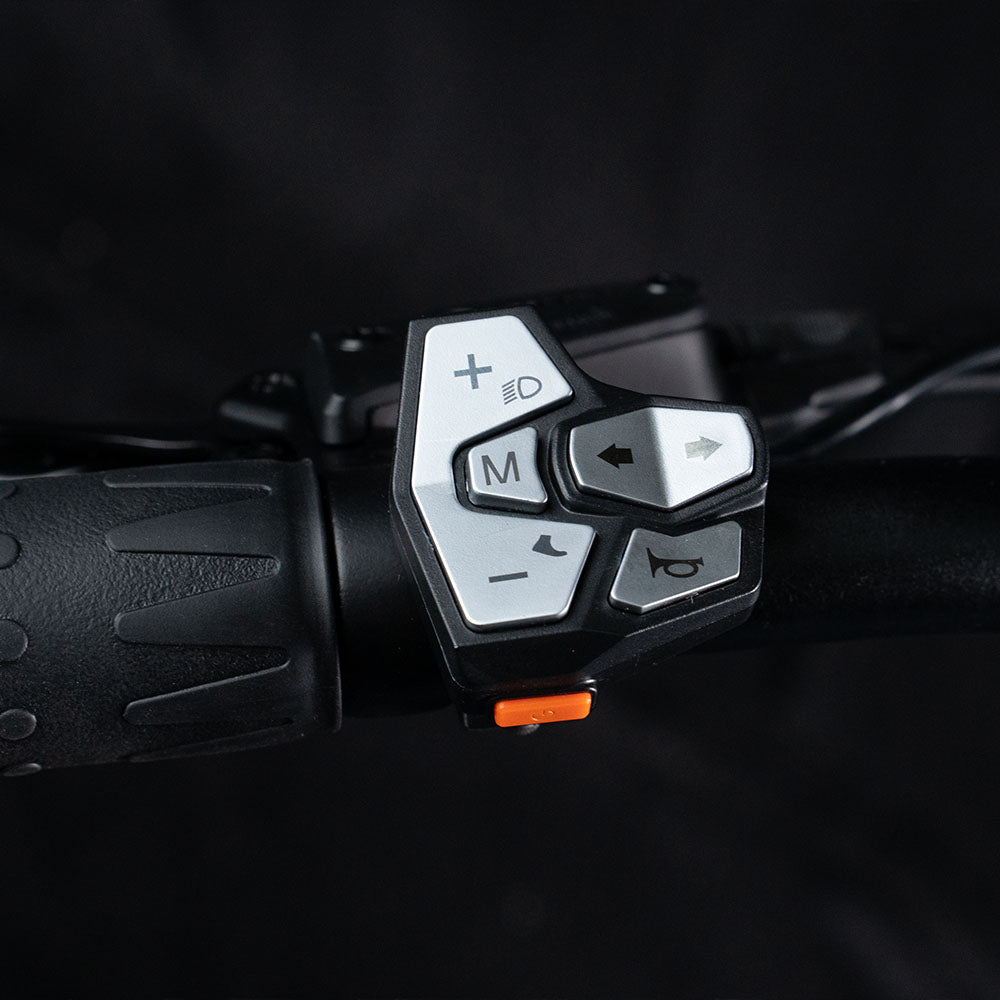

Assist level, lights and the horn on one pad by your left thumb, with the throttle beside it.
| Motor | 52V 750W Bafang brushless rear hub |
|---|---|
| Battery | 52V 20Ah LG cells, 1040Wh, inside the frame; UL 2849 and UL 2271 certified |
| Range | Up to 75 miles, Cyrusher estimate |
| Top speed | 28 MPH in pedal assist level 5; Class 2 or 3 by Cyrusher |
| Modes | Throttle, pedal assist, pedal only |
| Sensor | Torque sensor (Cyrusher also lists cadence) |
| Display | 3.7 inch colour LCD |
| Charger | 52V 3A, 5 to 7 hours |
| Battery life | 800 cycles by Cyrusher |
| Frame | 6061 aluminium step over with internal battery, four bar rear linkage |
| Rider height | 5'7" to 6'6" |
| Reach | 19.3 in |
| Saddle height | 34 to 39 in |
| Handlebar height | 46 in |
| Wheelbase | 49.4 in |
| Overall length | 78 in |
| Front suspension | Hydraulic dual crown fork, 60mm travel, lockout |
| Rear suspension | DNM AO-38RC air shock |
| Brakes | Tektro HD-E3940 four piston hydraulic disc, front and rear |
| Drivetrain | Shimano 9 speed |
| Crankset | Forged aluminium, 170mm, 52T |
| Chain | KMC stainless |
| Tires | Chaoyang 26 x 4 puncture resistant fat |
| Rims and spokes | Aluminium alloy rims, 12 gauge stainless spokes |
| Saddle | Sport cushion saddle on a 33.9mm adjustable post |
| Lights | LED headlight with horn, 1000 lumens by Cyrusher |
| Kickstand | 6061 aluminium |
| Payload | 350 lb |
| Weight | 87 lb with battery, 72.8 lb without, by Cyrusher |
| Colours | Green, Black, White |
| Warranty | 2 years frame, motor and controller; 1 year battery and parts, by Cyrusher |
| Not included | Fenders and rear rack, sold separately by Cyrusher |
Cyrusher quotes up to 75 miles from the 52V 20Ah, 1040Wh battery, and that is a best case pedal assist figure. Rider weight, hills, headwind, cold weather, tire pressure and how much throttle you use all bring it down. Cyrusher suggests a low assist level while you learn the bike and your routes.
Cyrusher lists the Ranger 2.0 as Class 2 or 3, with 28 MPH reached in pedal assist level 5. In most US states that is legal on roads and many bike lanes, but paths and trails set their own limits. Check your state and local rules, especially where Class 3 bikes are kept off multi use paths.
They are the same bike in two frames. The Ranger 2.0 is the step over with a 28 inch standover, for riders 5'7" to 6'6". The Trax 2.0 is the step thru at 20.5 inches on the same 750W Bafang motor, 52V 20Ah battery, Tektro brakes and Shimano 9 speed. Both weigh 87 lb and carry 350 lb.
One size. Cyrusher fits it to riders from 5'7" to 6'6". The saddle sets from 34 to 39 inches off the ground, the handlebar sits 46 inches up, the wheelbase is 49.4 inches and the bike is 78 inches long.
Mostly. You fit the front wheel and tighten its axle, thread the left and right pedals on with a 15mm wrench, set the handlebar in the stem and drop the saddle into its quick release post, then check every bolt. Cyrusher recommends a bike mechanic checks your work. Fenders and a rear rack are not included.
Cyrusher covers the frame, motor and controller for two years and the battery and other parts for one year against manufacturing defects, for the original owner, one replacement per part. Crashes, stunt riding, water damage, modifications and normal wear are excluded. We are an authorized dealer, so it applies.
