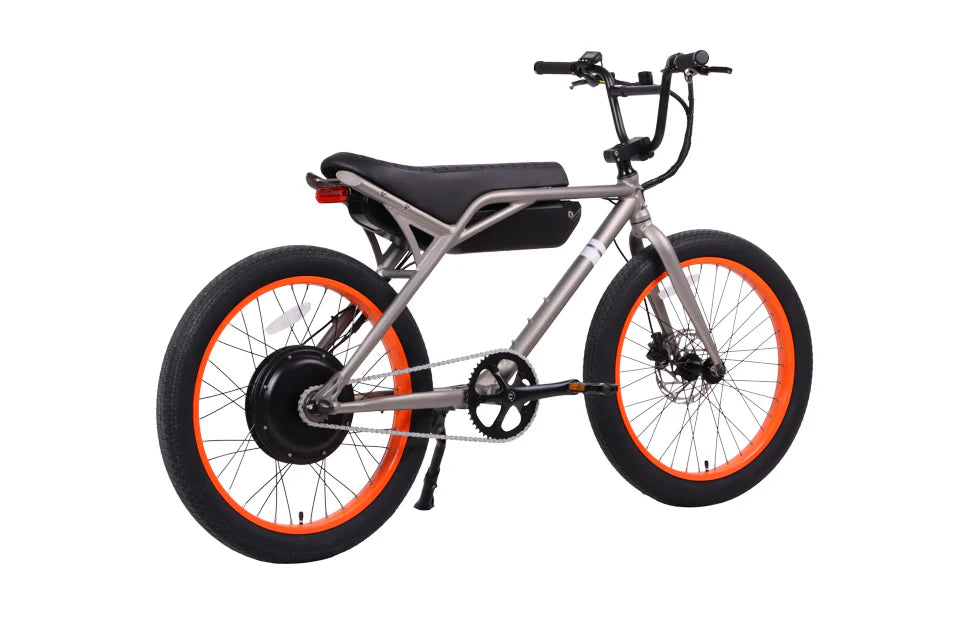

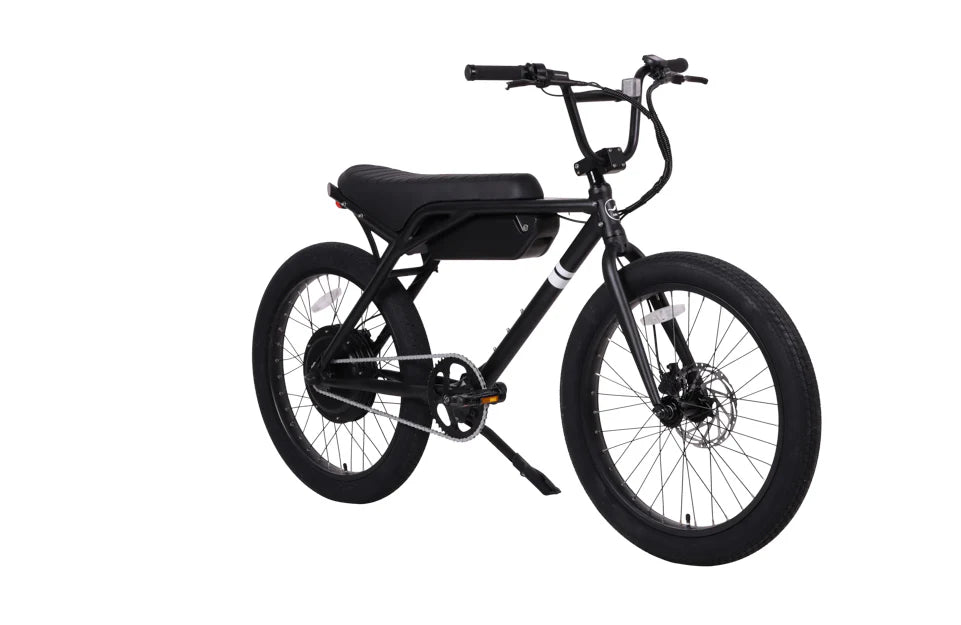

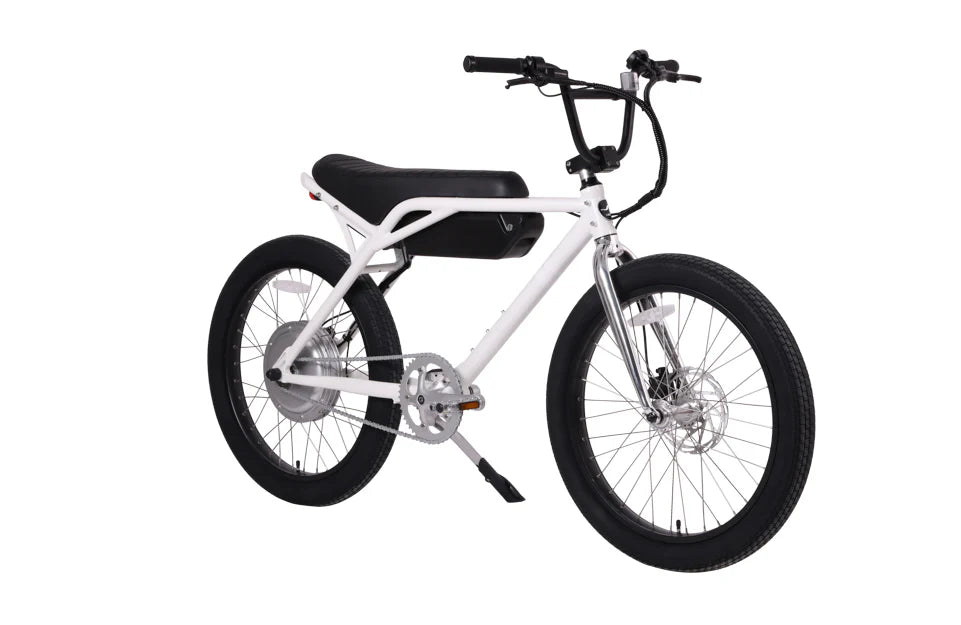

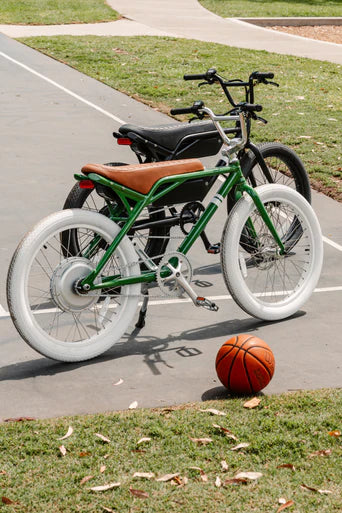

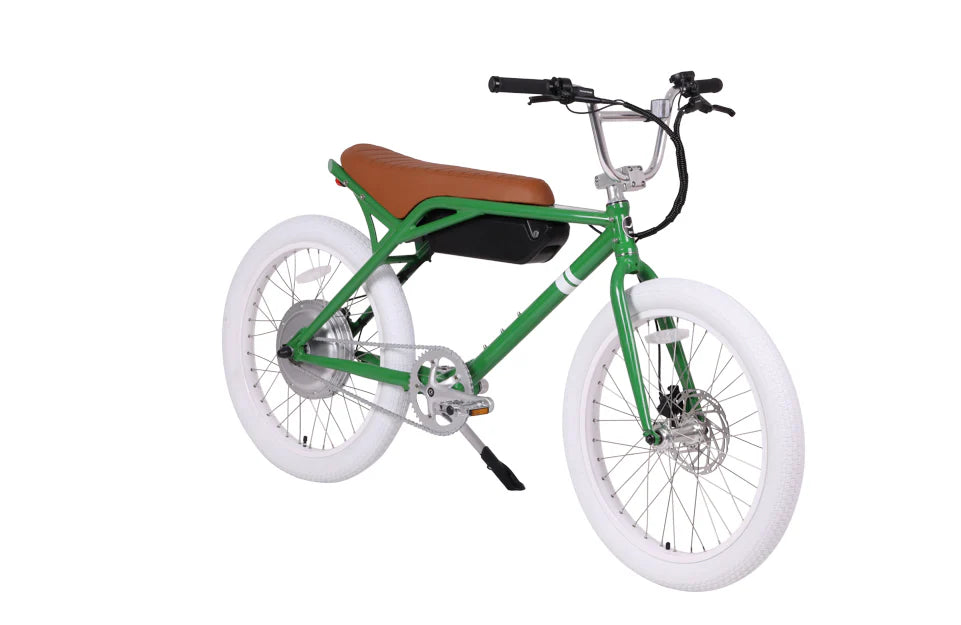

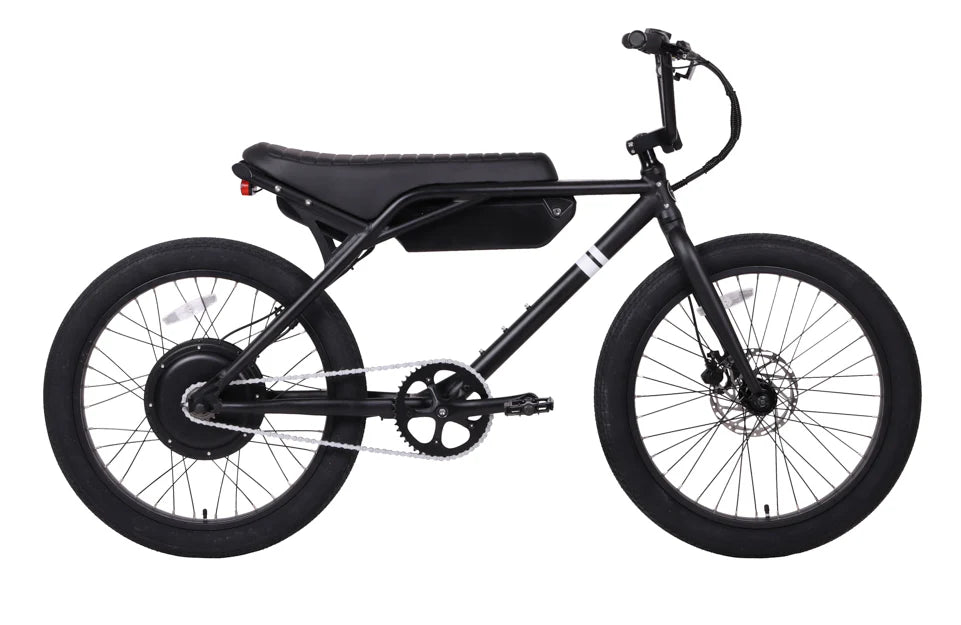

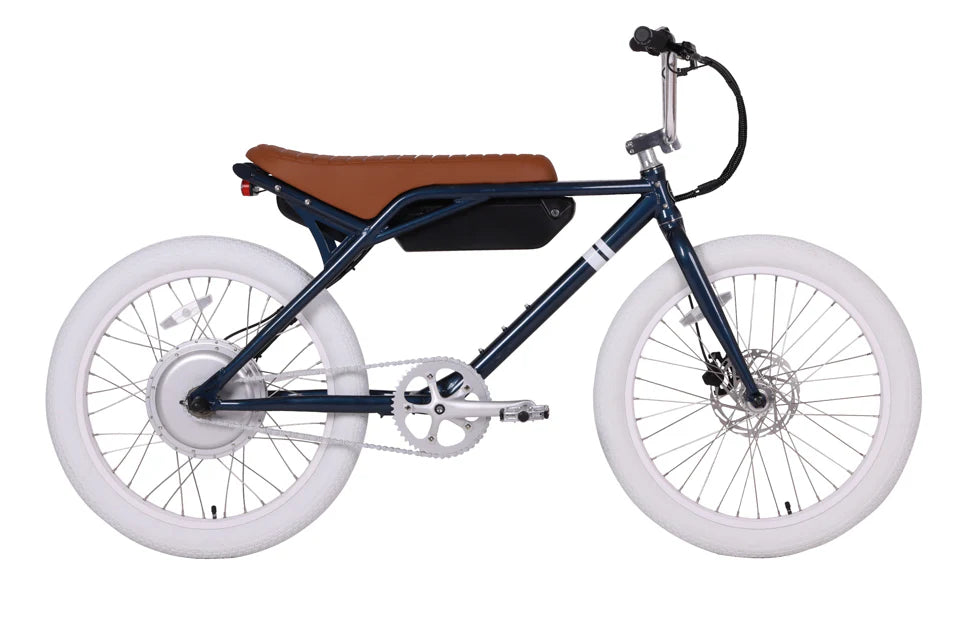

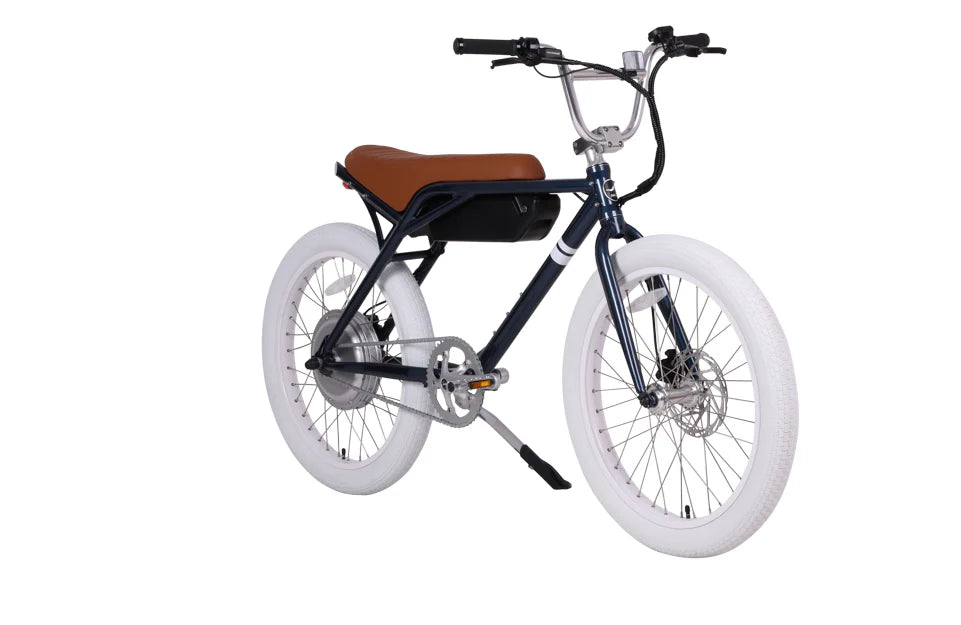

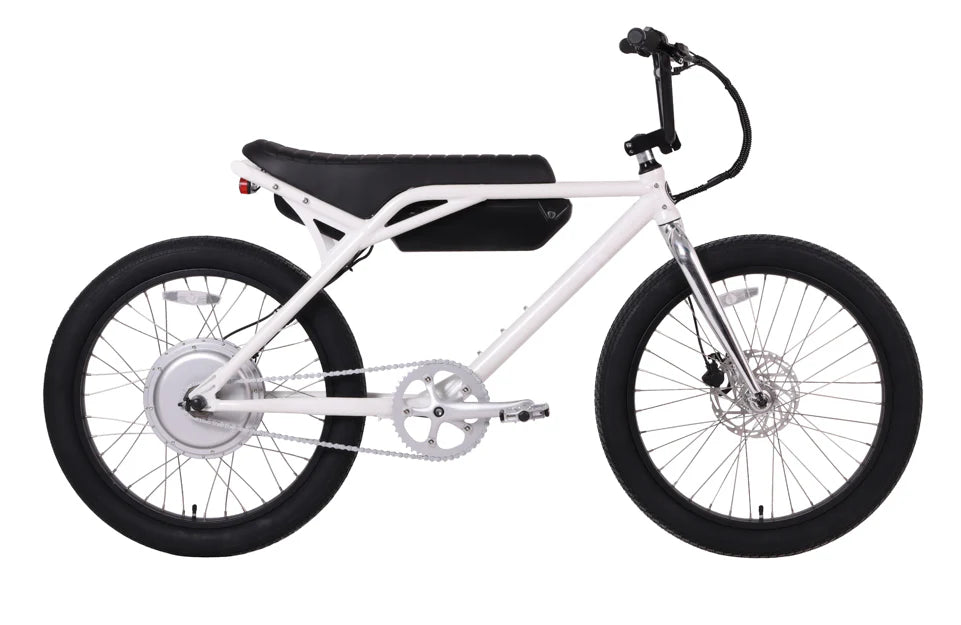

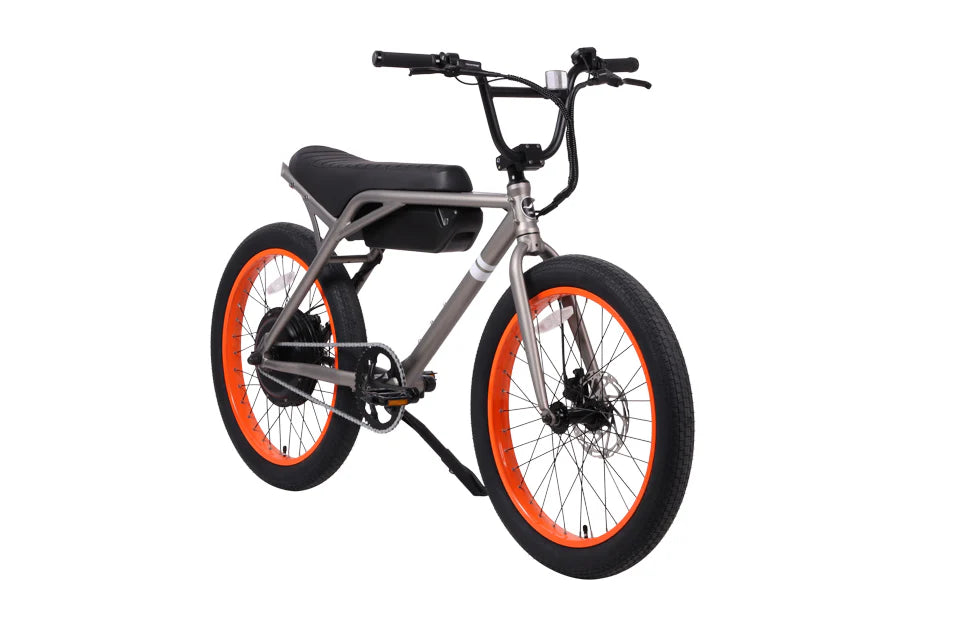

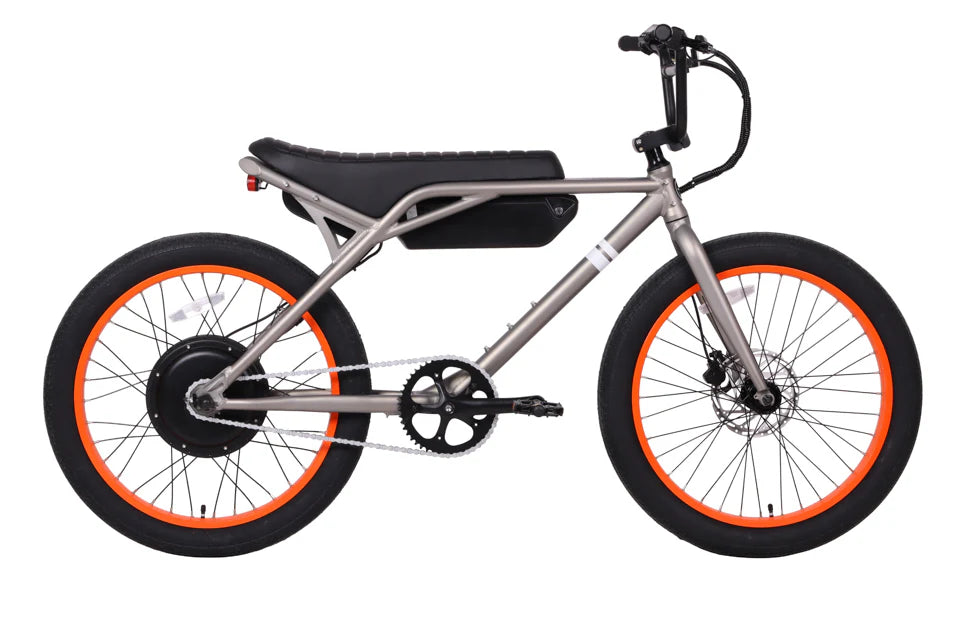

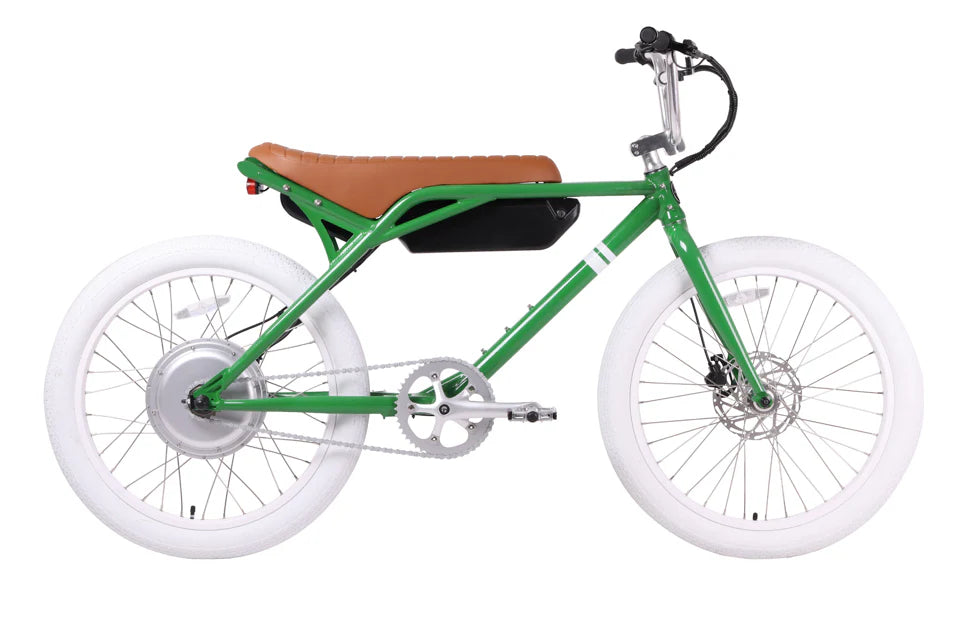

SOLE BICYCLES E(24) Built to Withstand, Various Terrains a Lightweight and Sturdy Ride
The e-24 electric bike can reach top speeds of up to 28 mph with a range of 25 to 40 miles, and is equipped with 24” rims and 3” tires. Whether for daily commuters, beachgoers, or recreational riders, the e-24 collection is set to revolutionize urban commuting and leisure riding through its powerful performance and innovative design.
FEATURES:
DURABLE ALLOY FRAME
- Built to withstand the demands of various terrains while providing a lightweight and sturdy ride. An e-bike at only 55 lbs!
TOP SPEED: 28 MPH
- Can reach top speeds of up to 28 mph with a range of 25 to 40 miles
QUICK TO CHARGE
- Charging Time: 4+/- hours from empty
POWER/MOTOR
- 48v 750W
MULTI-CLASS OPTIONS
- Three-Class e-bike system. Riders have the option to use classes 1, 2, 3
24” RIMS AND 3” TIRES
- Keep it balanced, comfortable, and stable with fat tires
SPECIFICATIONS:
Frameset
- FRAME: Aluminum
- FORK: Aluminum
Contact Points

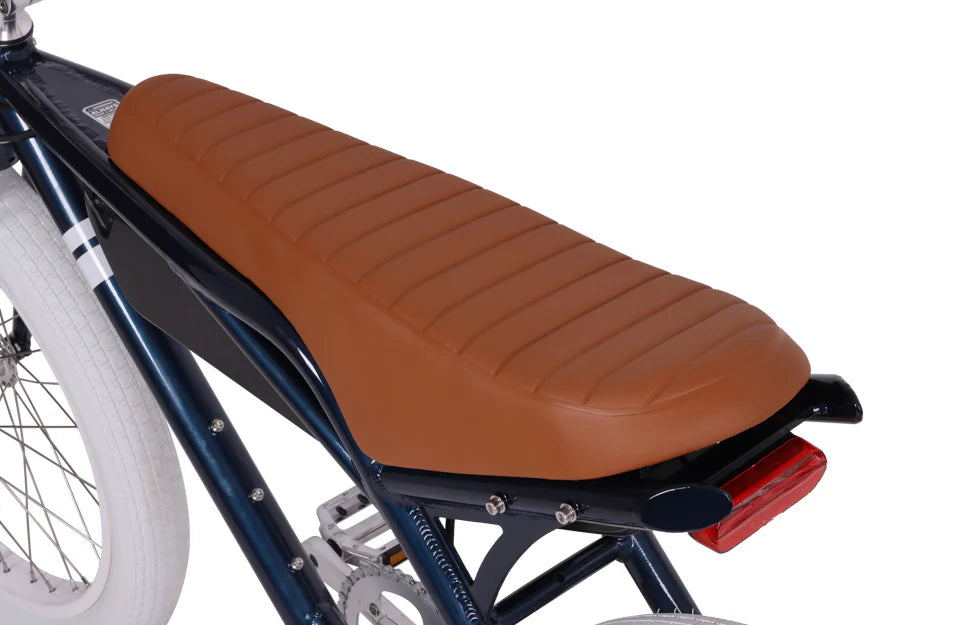

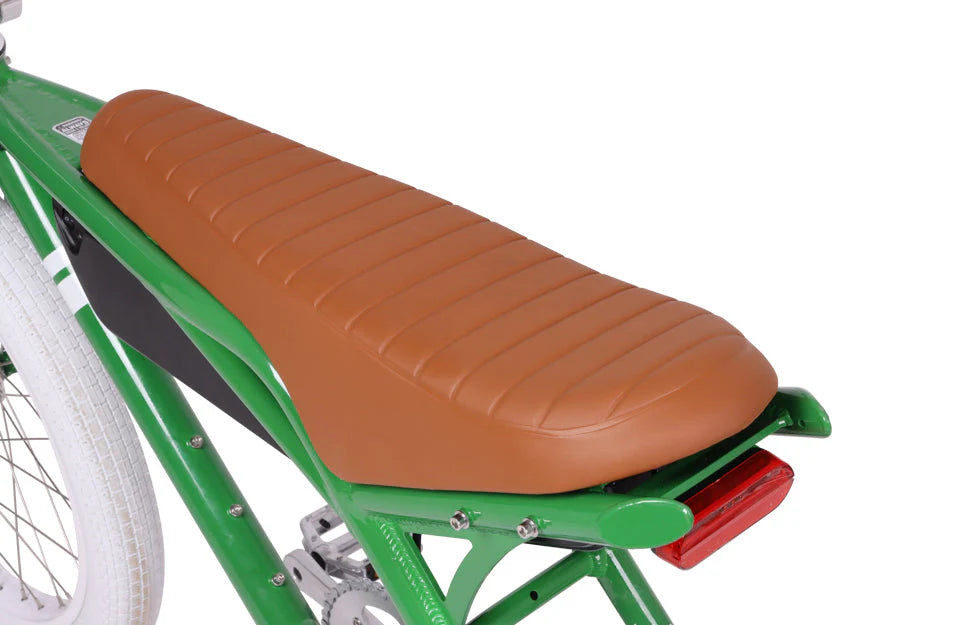

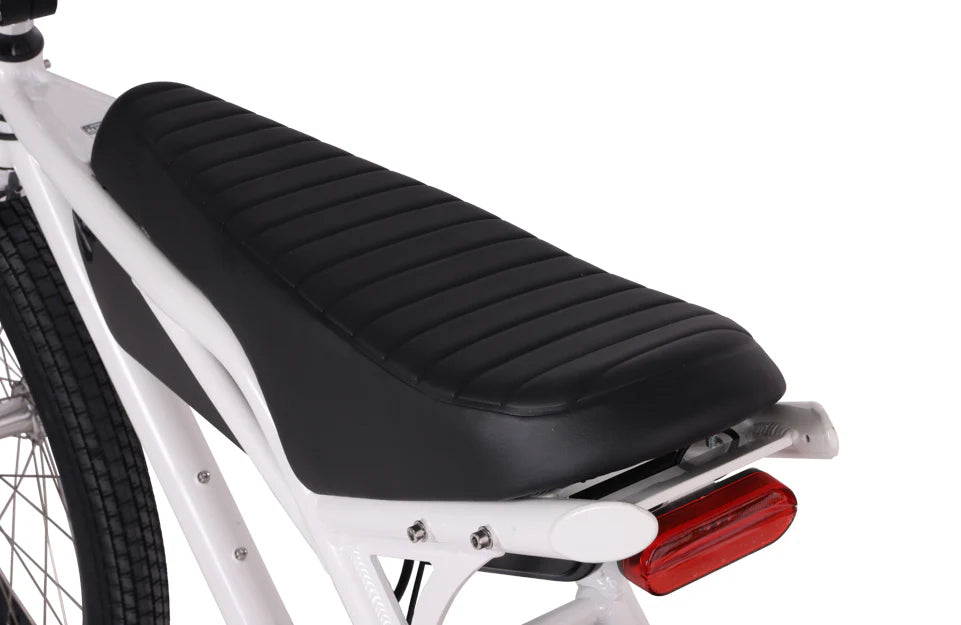

- SADDLE: Custom Solé Moto Saddle
- GRIPS: Rubber Solé Grippy Masters

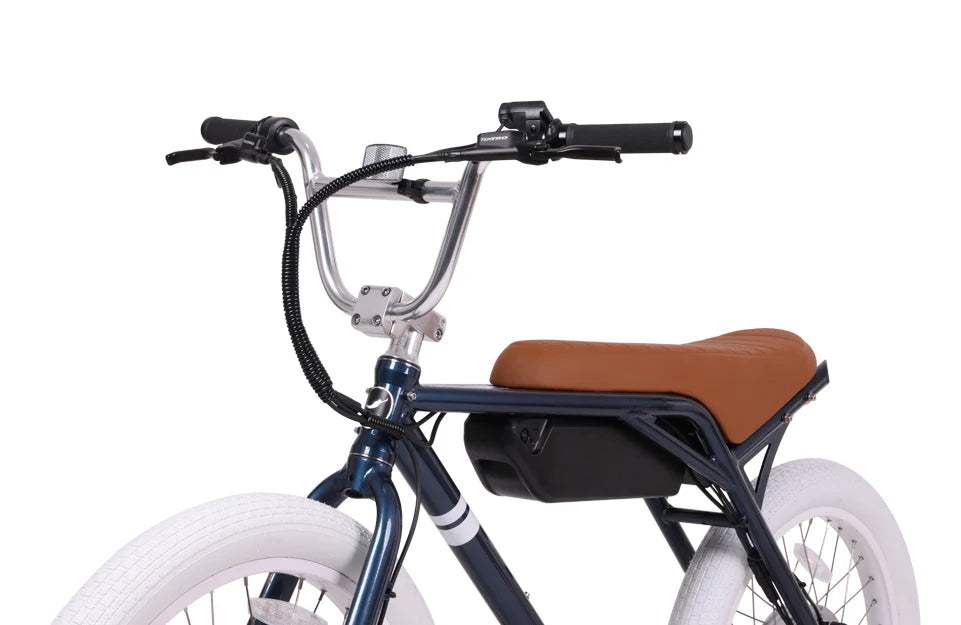

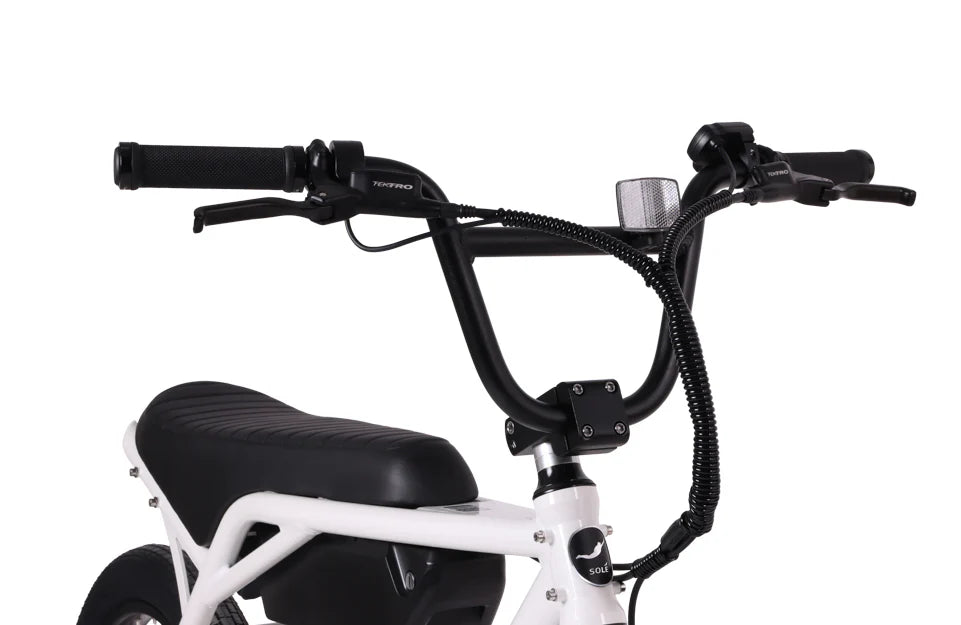

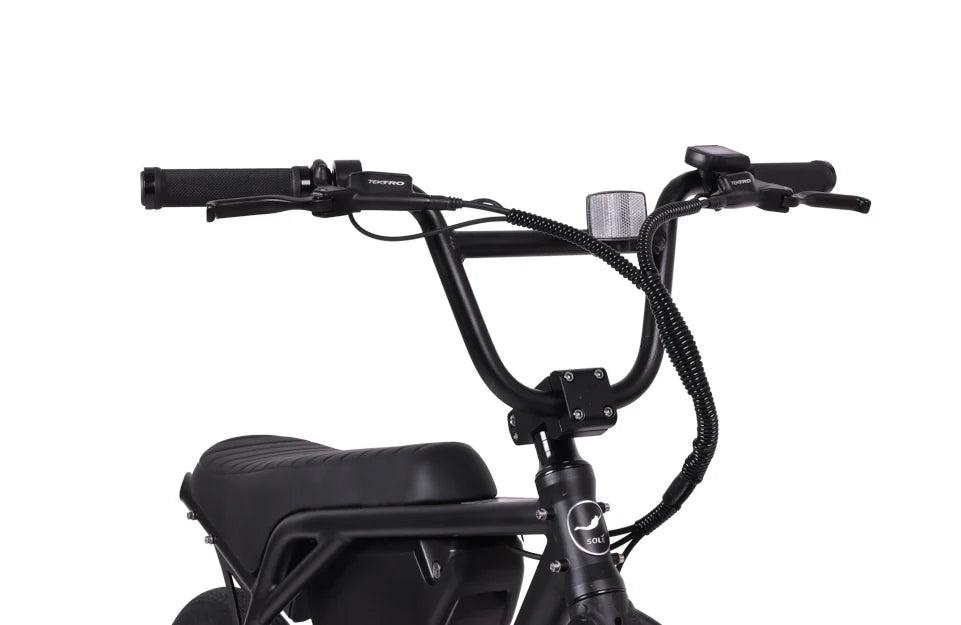

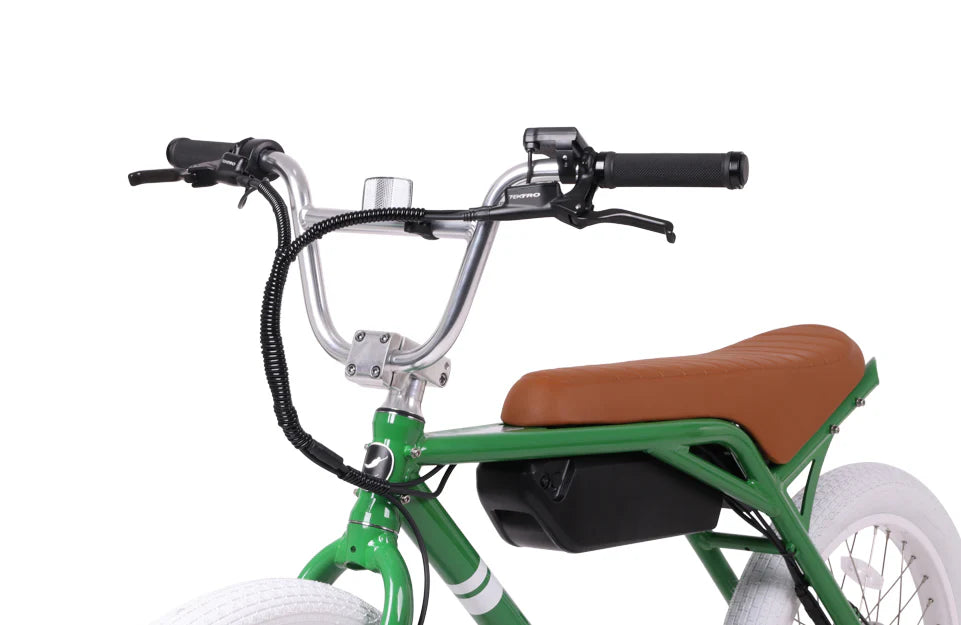

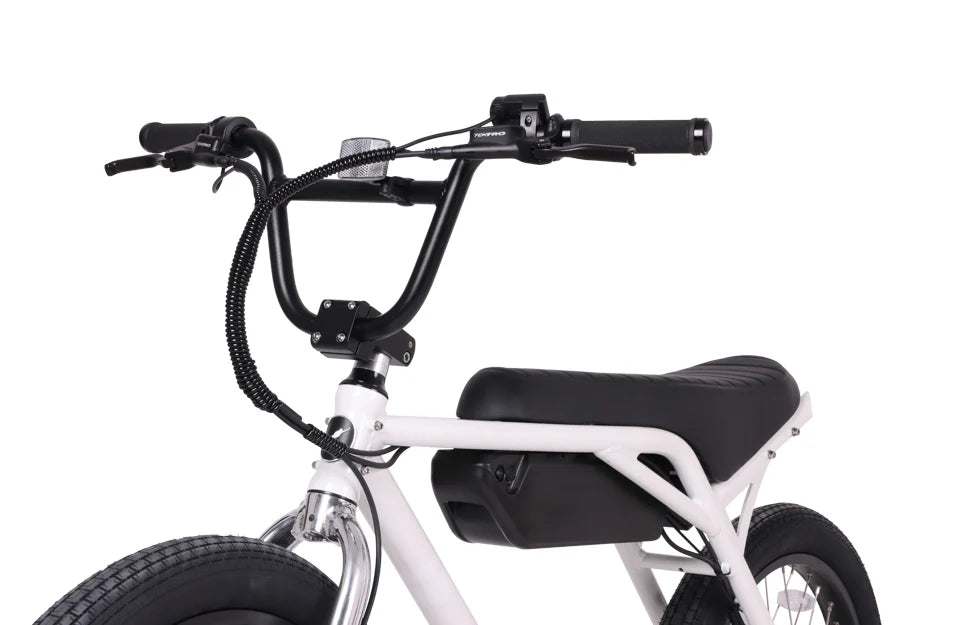

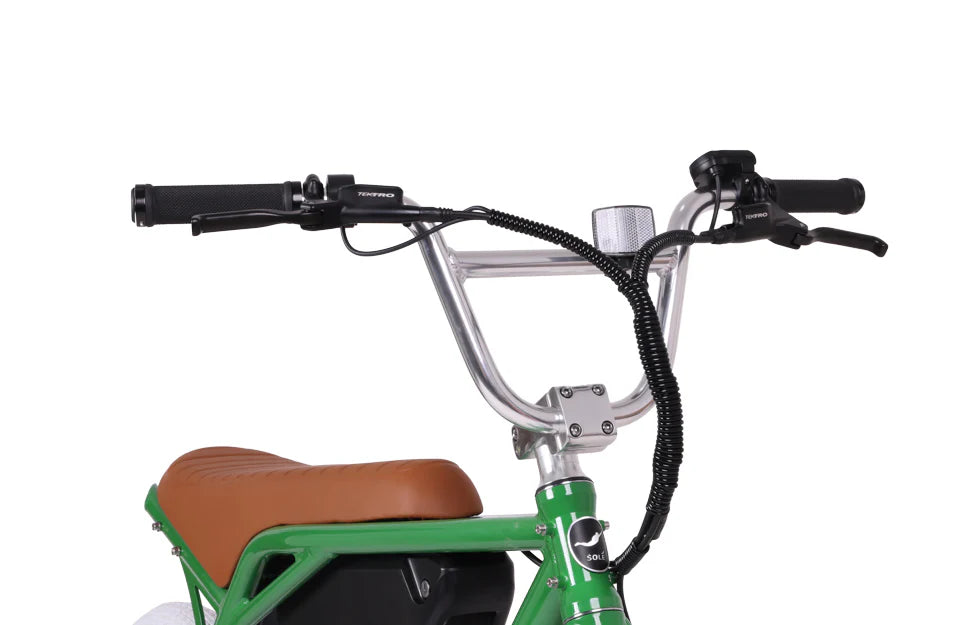

- HANDLE BARS: Aluminum Riser/ BMX Solé e24 Handlebar
Drivetrain & Brakes
- CRANKSET: Aluminum 46T
- GEAR RATIO: 46/18
- BRAKES: Tektro Hydraulic Disk Brake
- BOTTOM BRACKET: Sealed Steel Neco
Wheels & Tires
- HUB: Aluminum
- CHAIN: KMC Rust Buster
- RIM: Aluminum 24”
- TIRES: Innova 24” x 3”
- VALVES: Schrader
Electric Components
- TOP SPEED: 28mph
- RANGE: 25-40 miles
- BATTERY INFO: 48v 15AH
- CHARGING TIME: 4+/- hours from empty
- POWER/MOTOR: 48v 750W
- GEAR: Single Speed
Other
- TOTAL WEIGHT: 57 LBS
BICYCLE SIZING
FRAME SIZE | RIDER HEIGHT RANGE | RIDER MINIMUM INSEAM | TOP TUBE HEIGHT |
---|---|---|---|
24" - One Size | 5’4” - 6’4” // 163 - 193 cm | 28” // 71 cm | 31.5” // 80 cm |
Measurement Notes
- MINIMUM INSEAM: Inseam range is the primary means of selecting the correct frame size. This is more important than height.
- INSEAM MEASUREMENT: Perpendicular measurement from the floor to your groin, also known as your “Stand Over Hight”. Please note that you will want at least 1 inch or more of clearance over the top bar, when straddling the bike with your feet flat on the floor.
- TOP TUBE HEIGHT: This is the hight of the top bar that you would straddle when standing on the ground.
- If you are under 5’ 4” (162 cm) we HIGHLY recommend you size yourself up at a bicycle shop before purchasing!
- If you are on the cusp of a size range, we always suggest going with the smaller size.
- Suggested weight capacity of our bicycles is 275 lbs
