Fit
Find your size
Sizes overlap on purpose. Between two, the smaller rides more upright and the larger stretches you out. Every size shares a 415mm chain stay, a 45mm fork offset and a 170mm crank, so the handling stays consistent across the range. State also publish an inseam range per size, from 26.5 to 28 inches on the 49cm up to 34 to 36 inches on the 61cm.

Titanium Track Overview

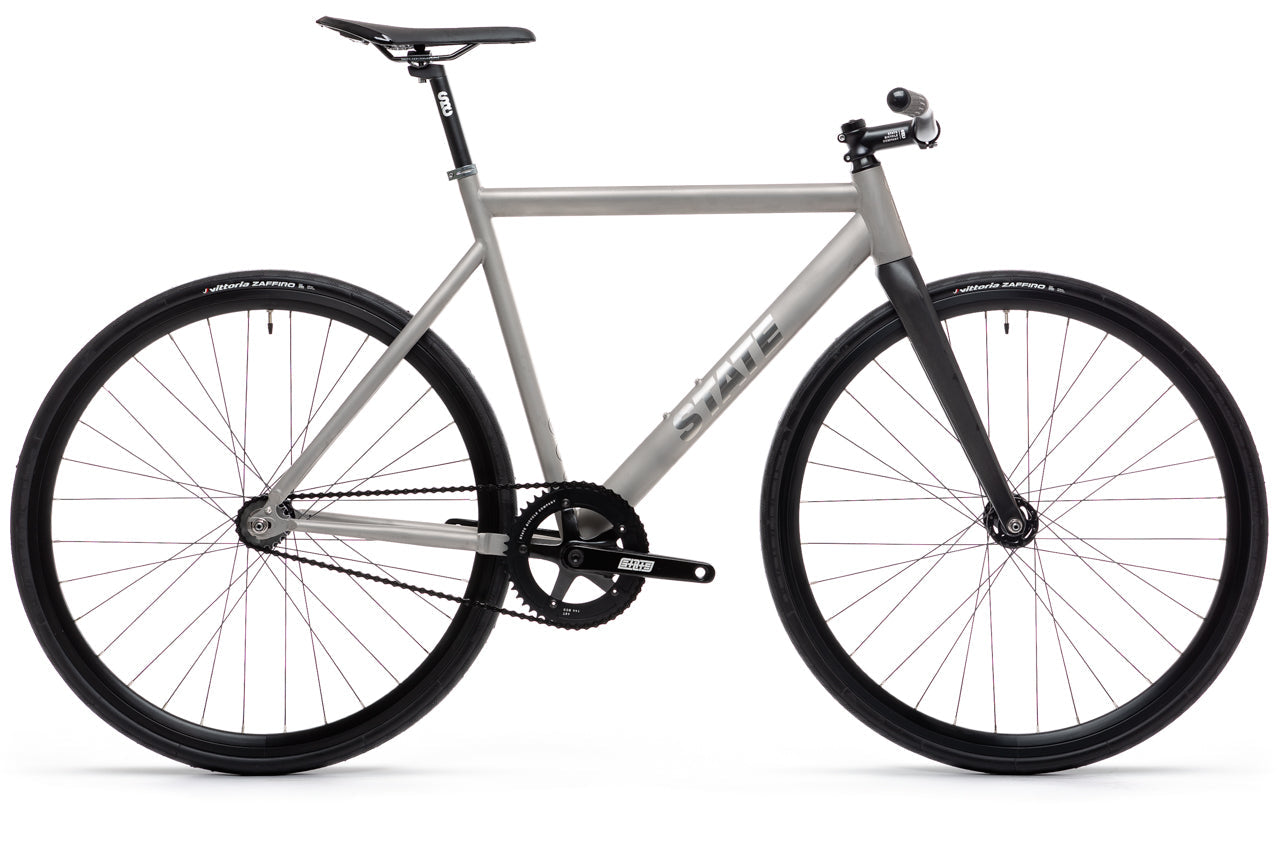

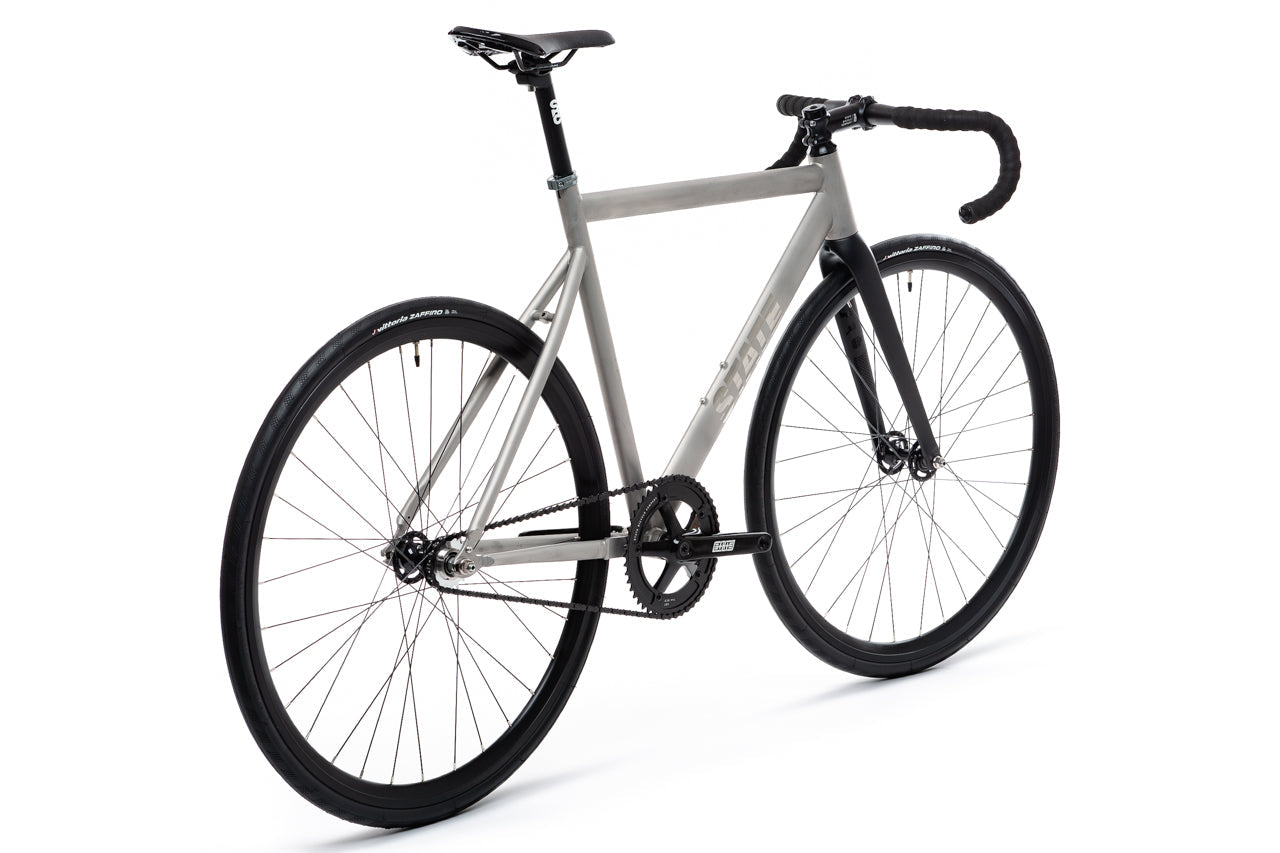

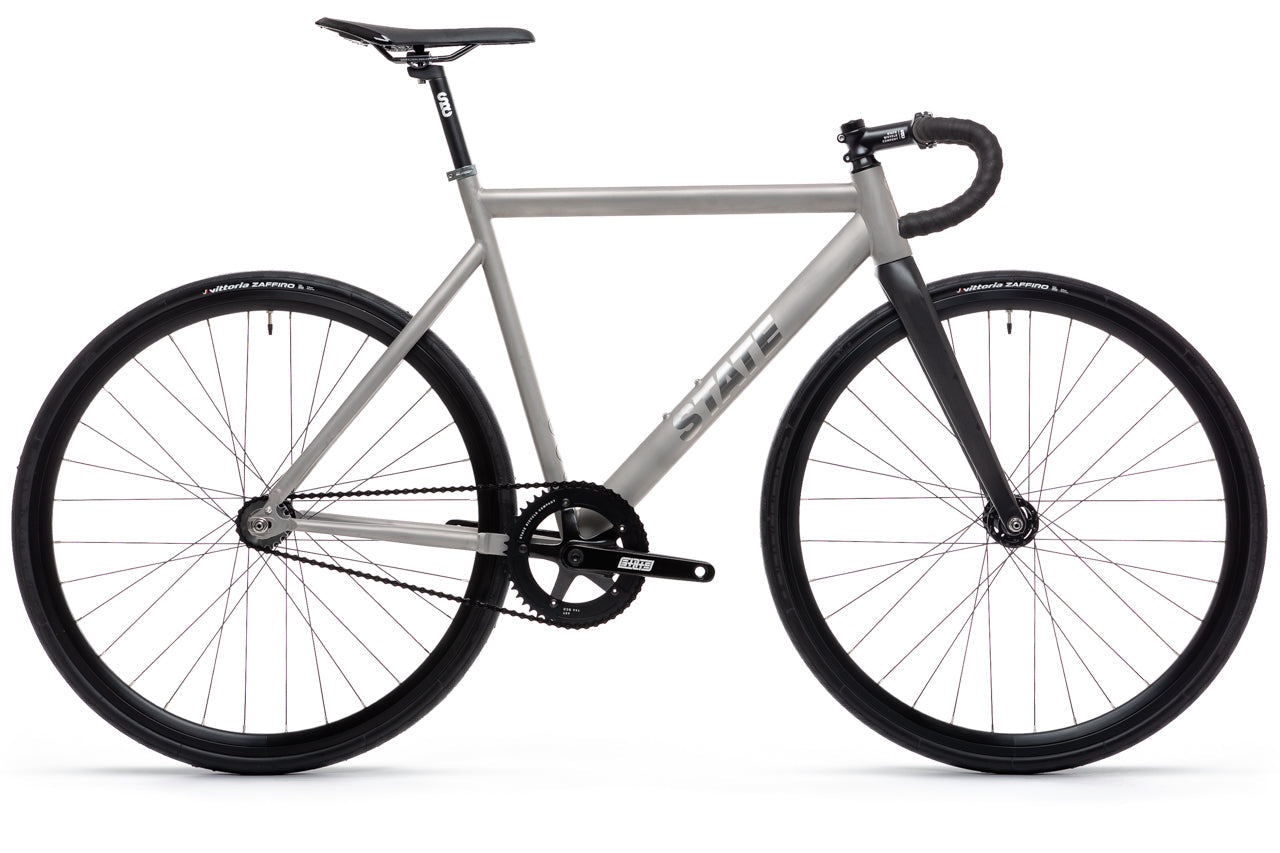

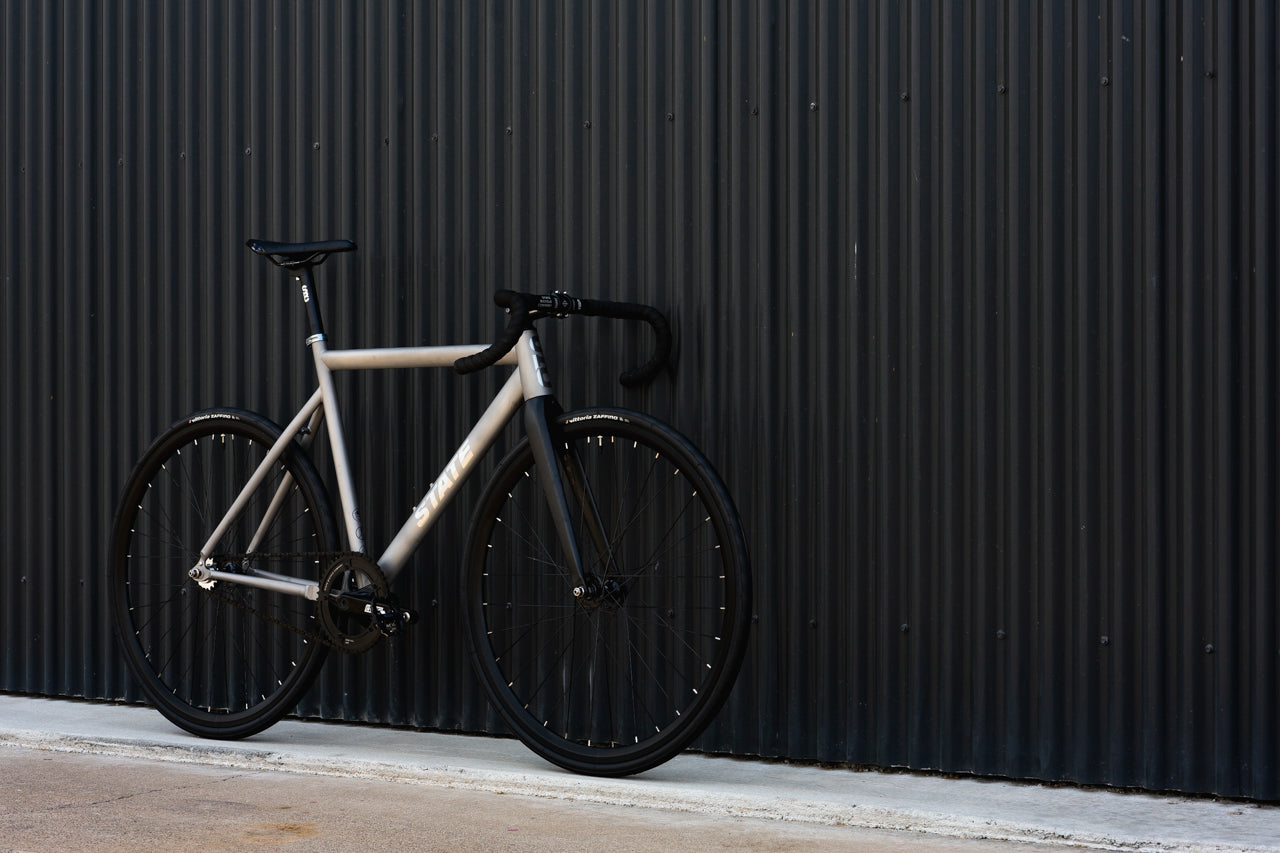

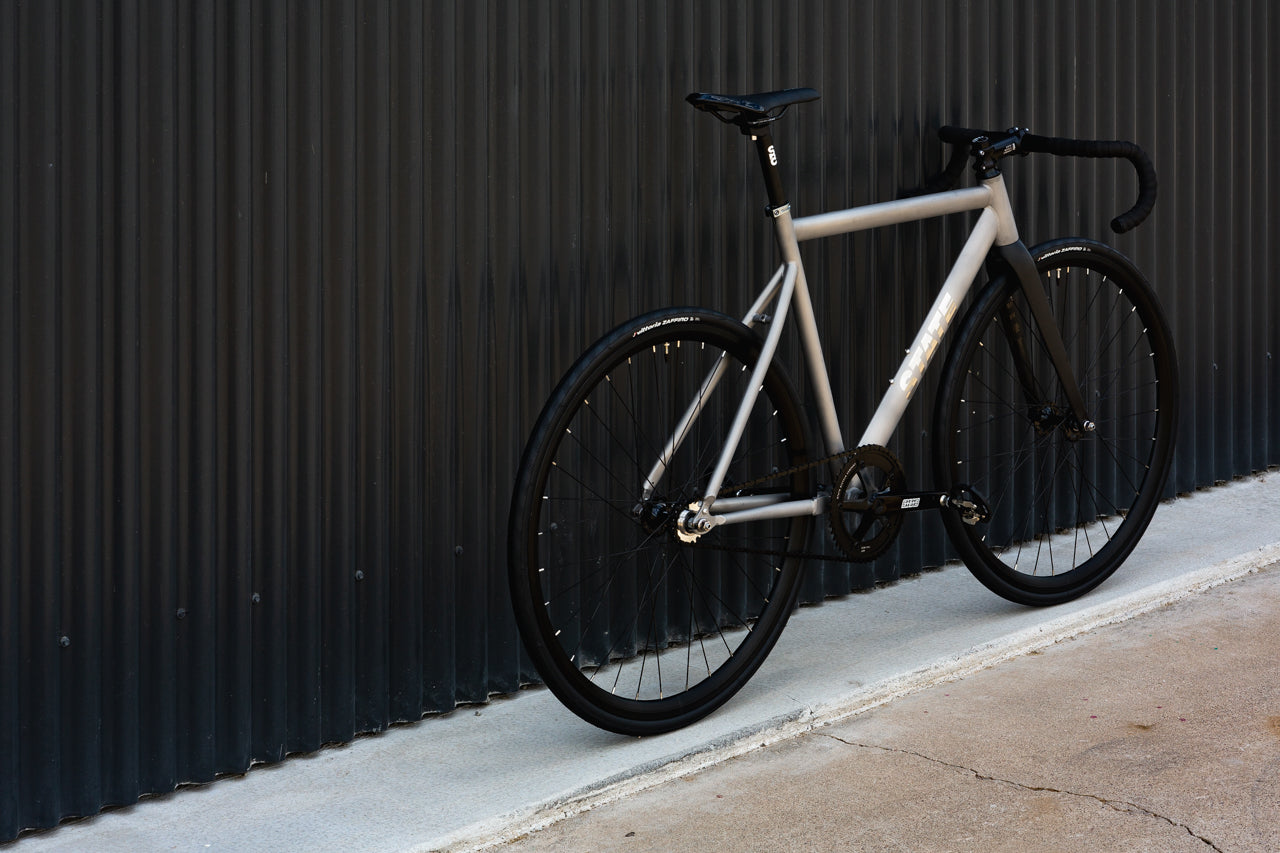

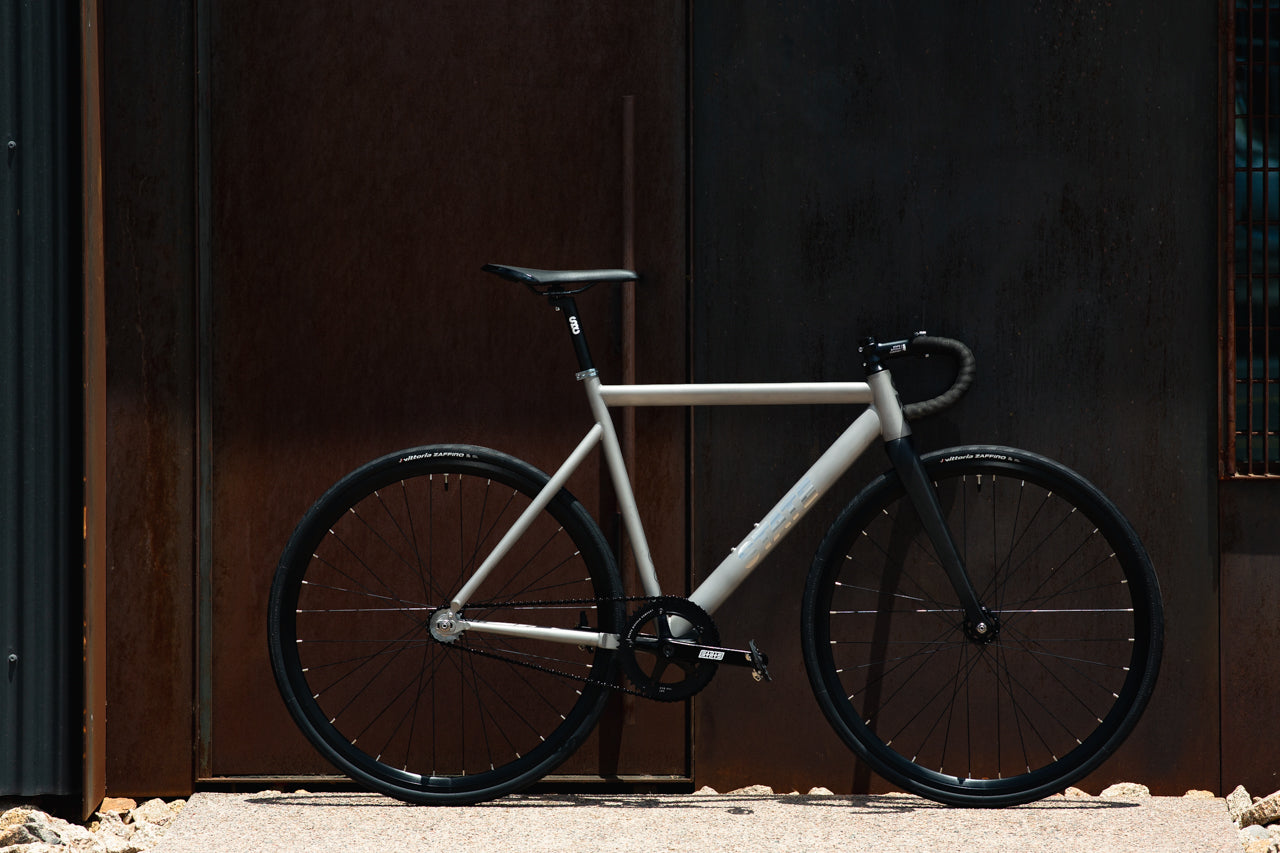

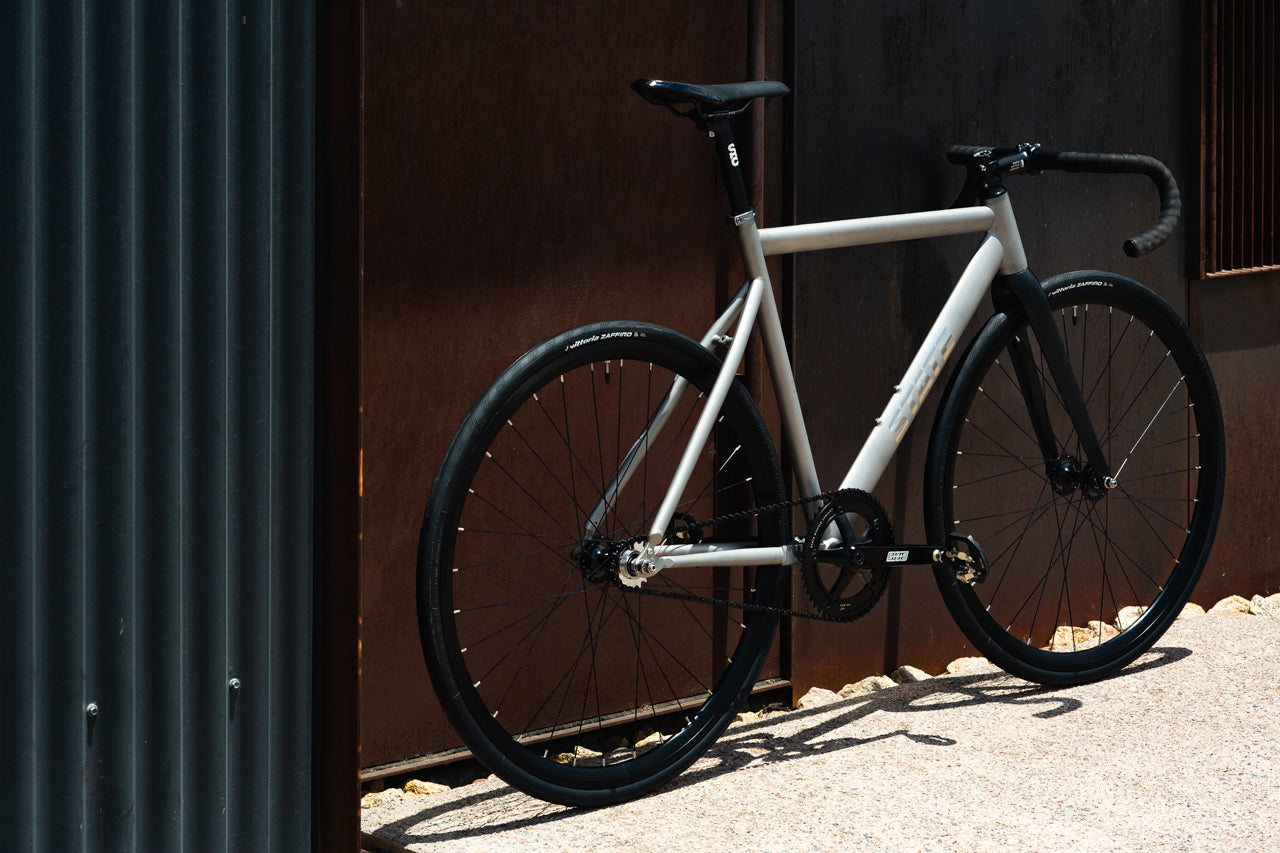

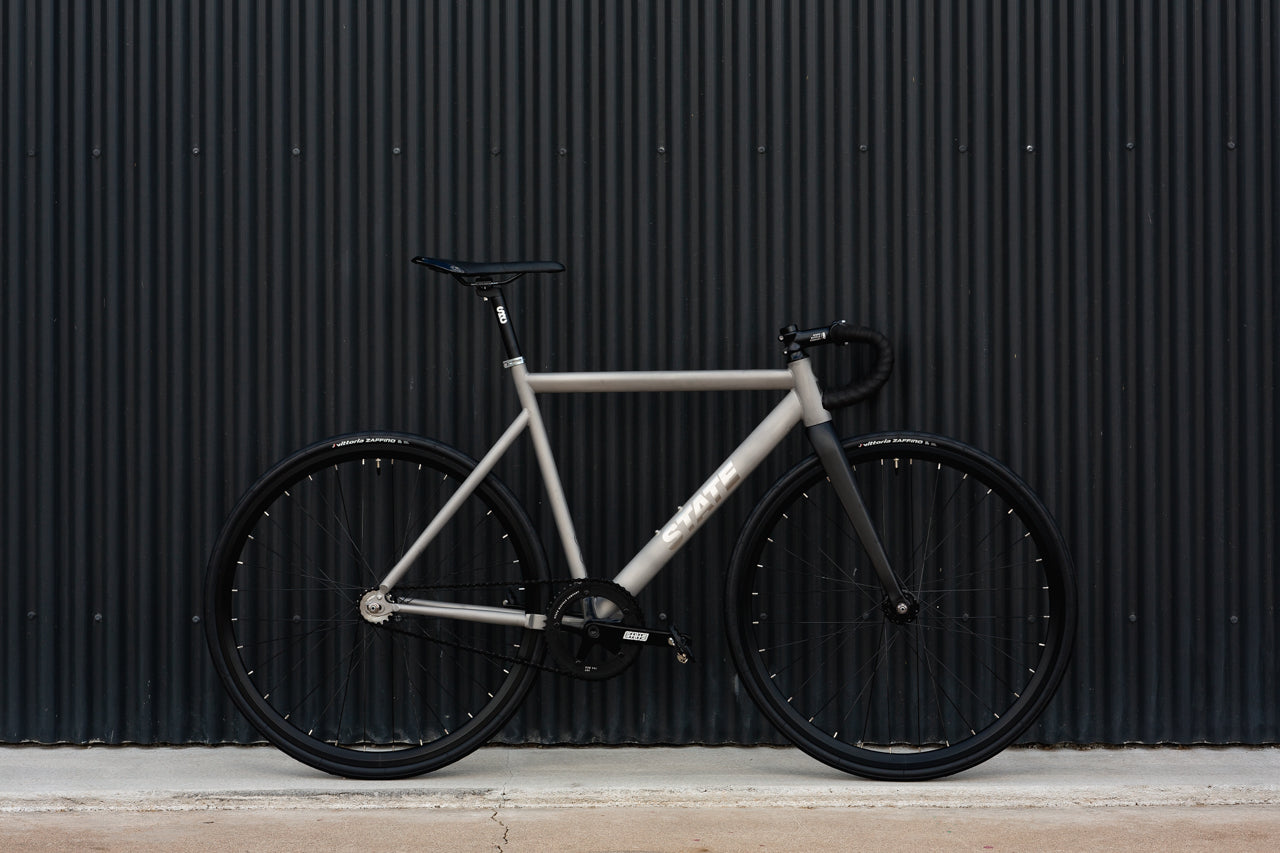

The State Bicycle Co. Titanium Track is a Grade 9 titanium fixed gear and single speed bike that weighs 17 lb 13 oz and costs $1,599.99. The main tubes are straight gauge Grade 9 titanium with a 0.9mm wall, aero formed by State rather than bought as off the shelf tubing, and the dropouts, bottom bracket and head tube are Grade 5 titanium.
Titanium is the point of this bike. State say it does not fatigue, corrode or rust the way alloy and steel do, and the finish is sandblasted metal with polished titanium logos, so there is no paint to chip and no decals to fade. The frame takes a full carbon fork on a tapered head tube, runs the rear brake cable internally, and is geared 48x17 for unlimited skid patches if you ride fixed and brakeless.
You choose the cockpit at checkout: 600mm wide riser bars with Vans grips, or 420mm compact drops. Same frame, same price, two completely different bikes. Skip it if you want gears, discs or suspension.
Standards you can build on
Every interface on this bike is an established size. 27.2mm seatpost, 31.8mm bar clamp, 68mm English threaded bottom bracket, a 144 BCD chainring, 100mm front and 120mm rear track spacing, and a flip flop hub threaded for a standard freewheel. You can rebuild this bike out of parts anyone stocks.
Questions before buying? Call 718.808.6415, Monday to Friday.

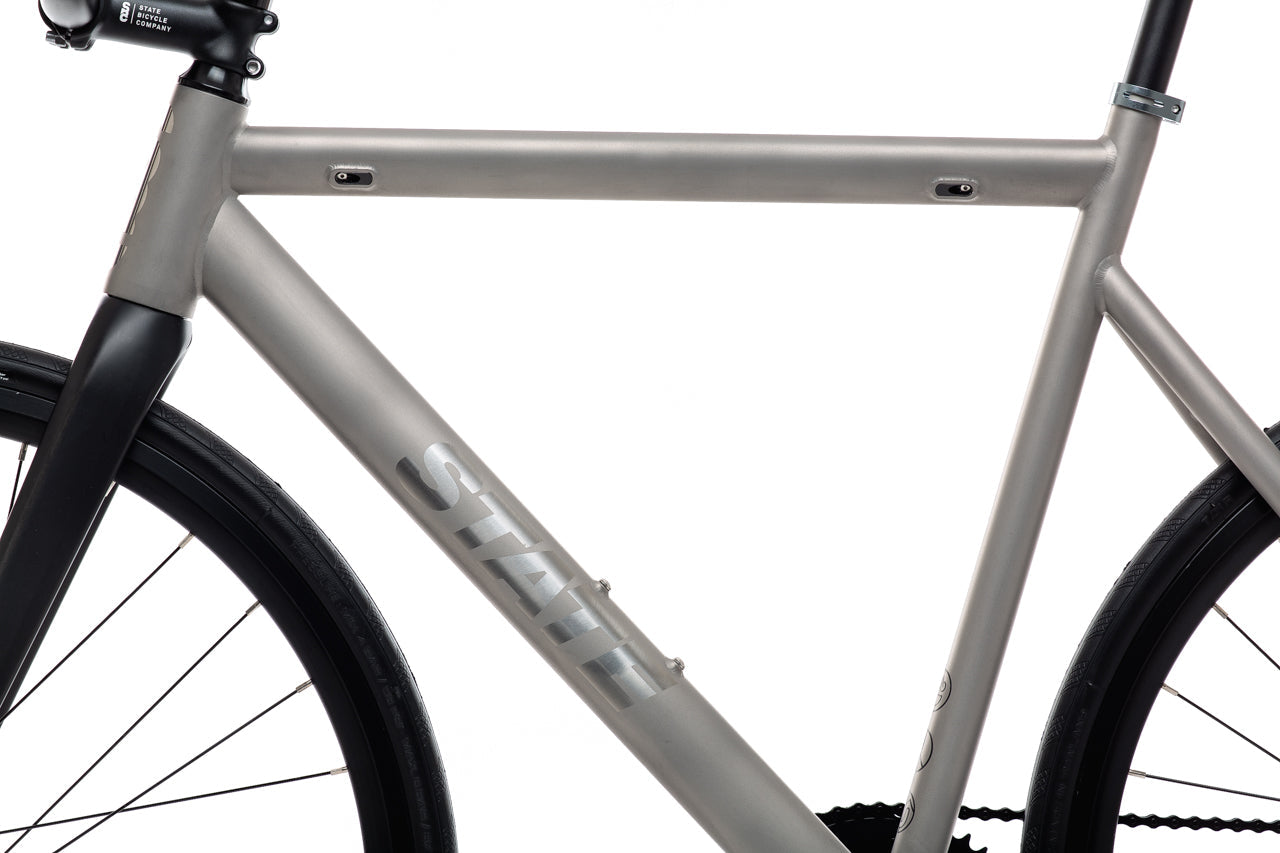

AERO FORMED GRADE 9 TITANIUM

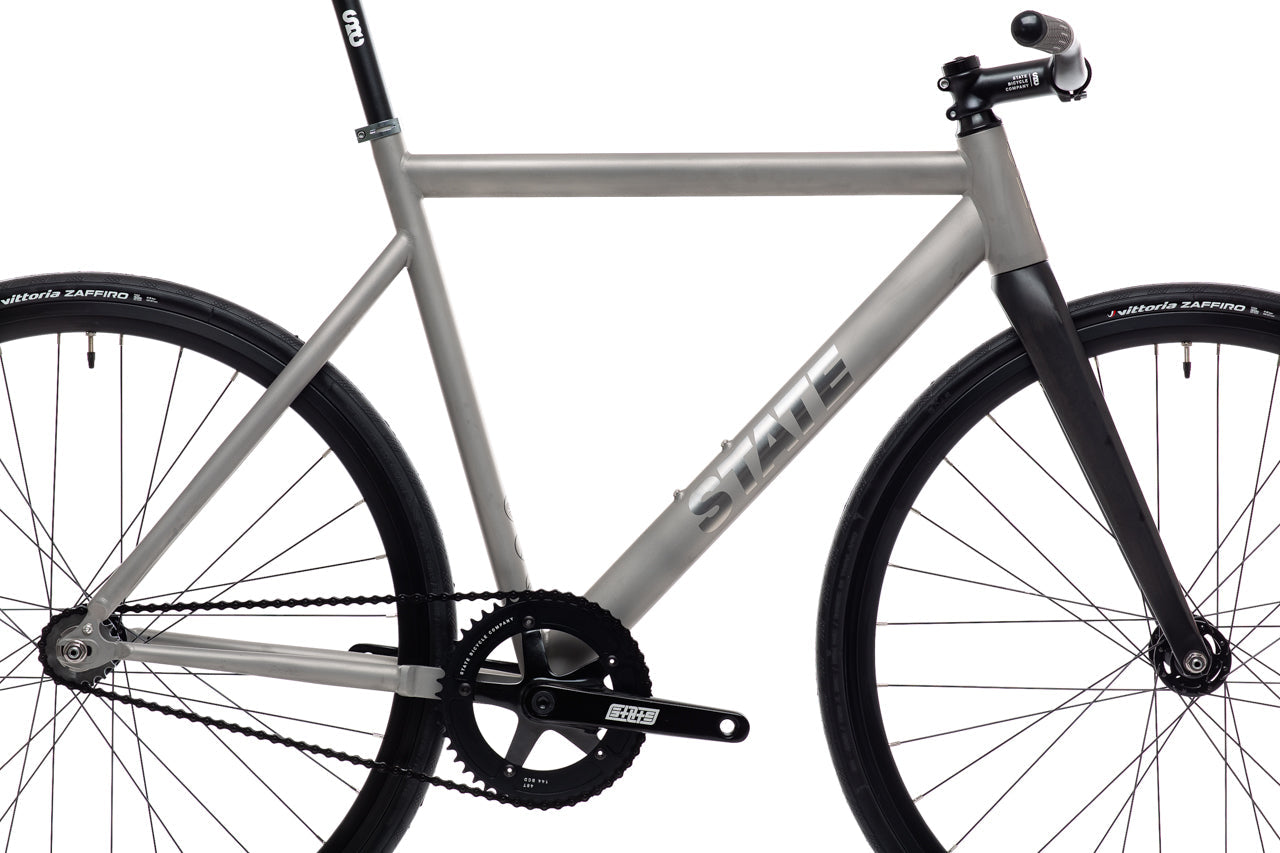

The main tubes are Grade 9 titanium, the 3Al/2.5V alloy, straight gauge with a 0.9mm wall. State aero form each tube themselves rather than building the frame from off the shelf tubing, and the head tube tapers from 1 1/8 inch at the top to 1 1/2 inch at the bottom so it can carry a full carbon fork and steerer. Frame weights run from 1,616g on a 49cm to 1,814g on a 61cm.

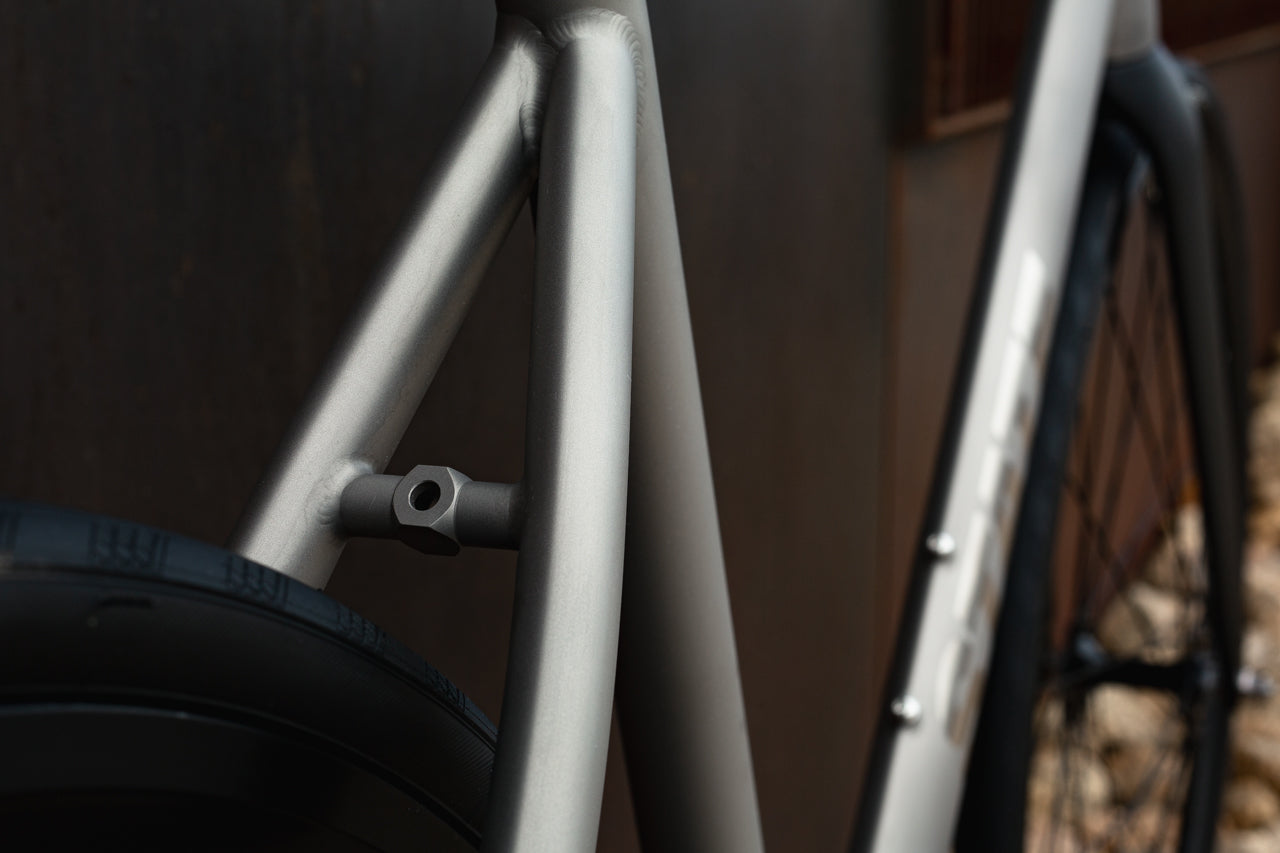

The dropouts, bottom bracket and head tube are Grade 5 titanium, the 6Al/4V alloy, rather than alloy parts bonded into a titanium frame. The rear brake cable runs inside the frame, and the horizontal dropouts are how you tension a chain without a derailleur. The finish is sandblasted titanium with polished titanium logos, which is the bare metal rather than a coating.

YOU PICK THE BARS

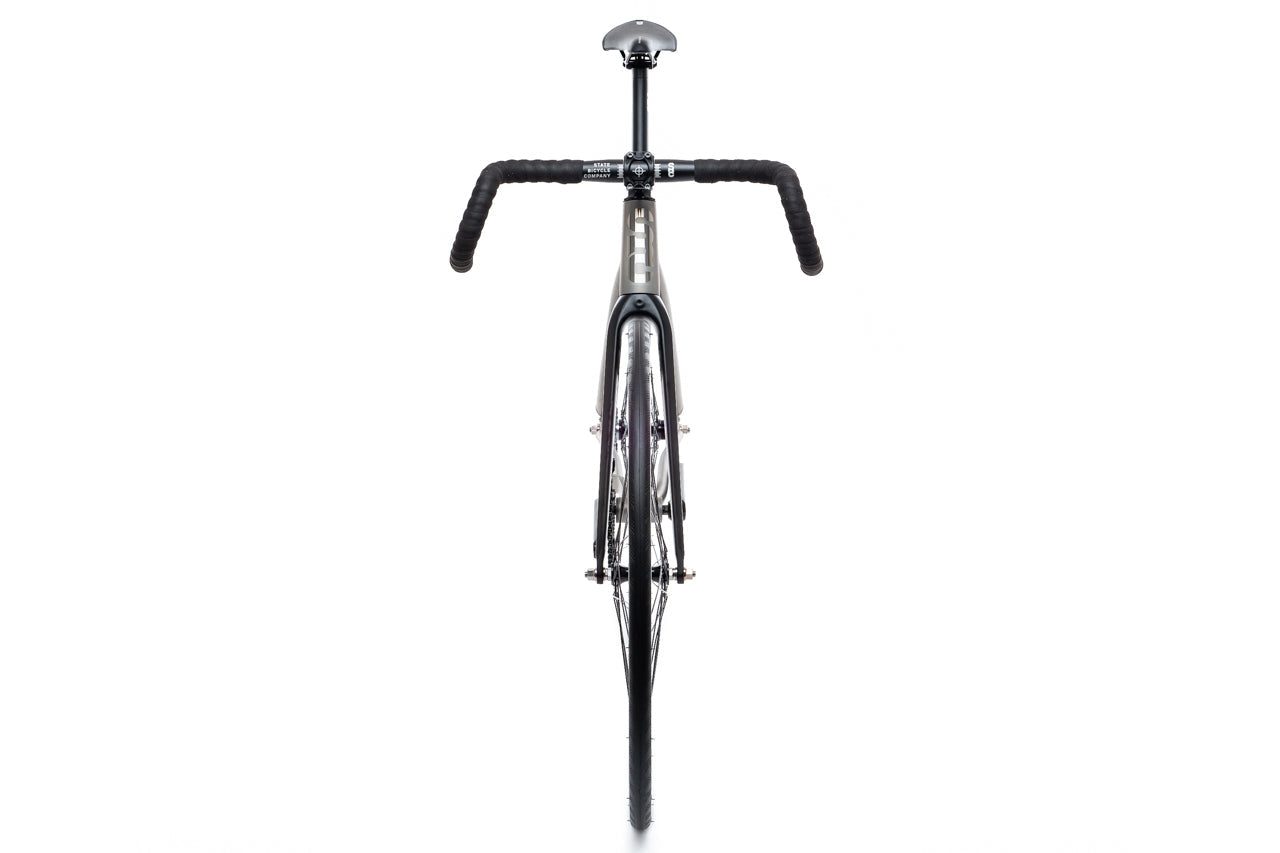

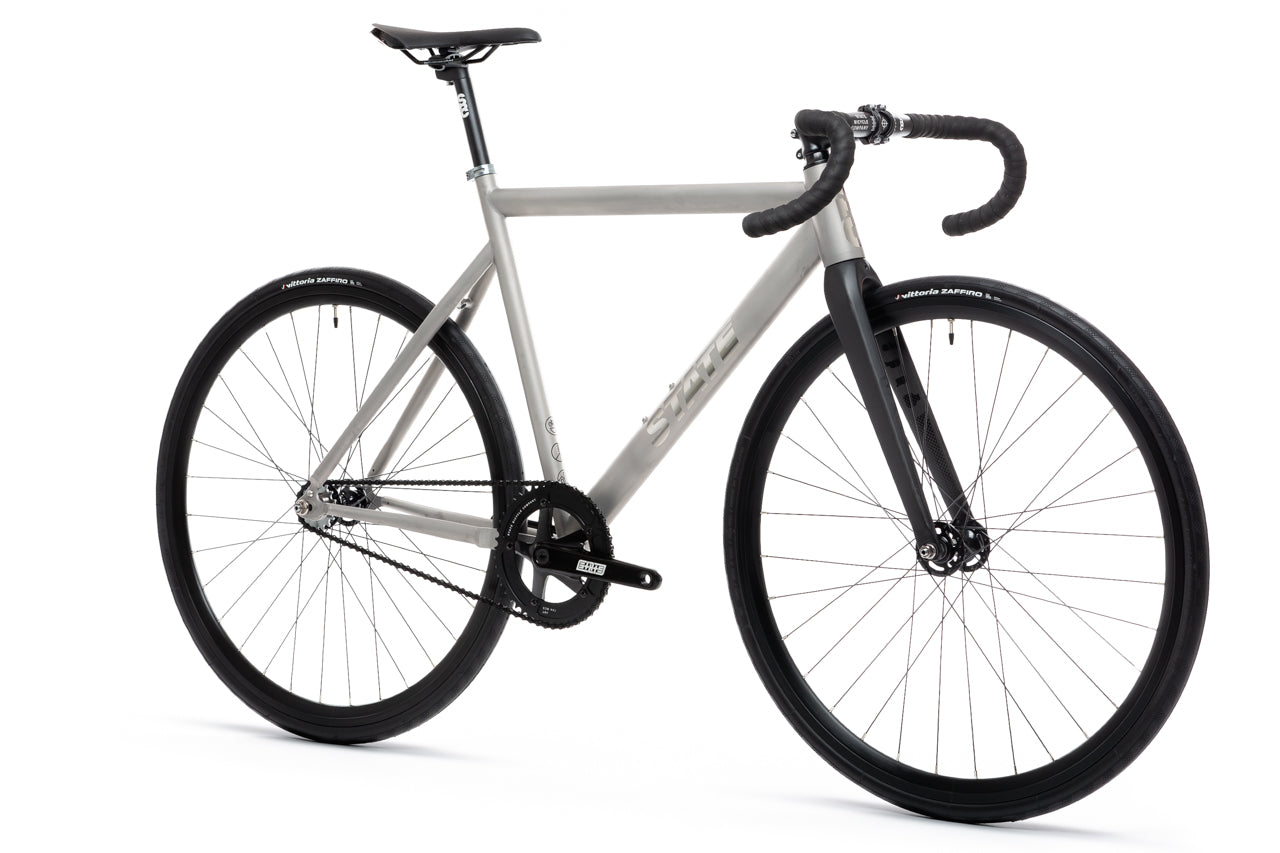

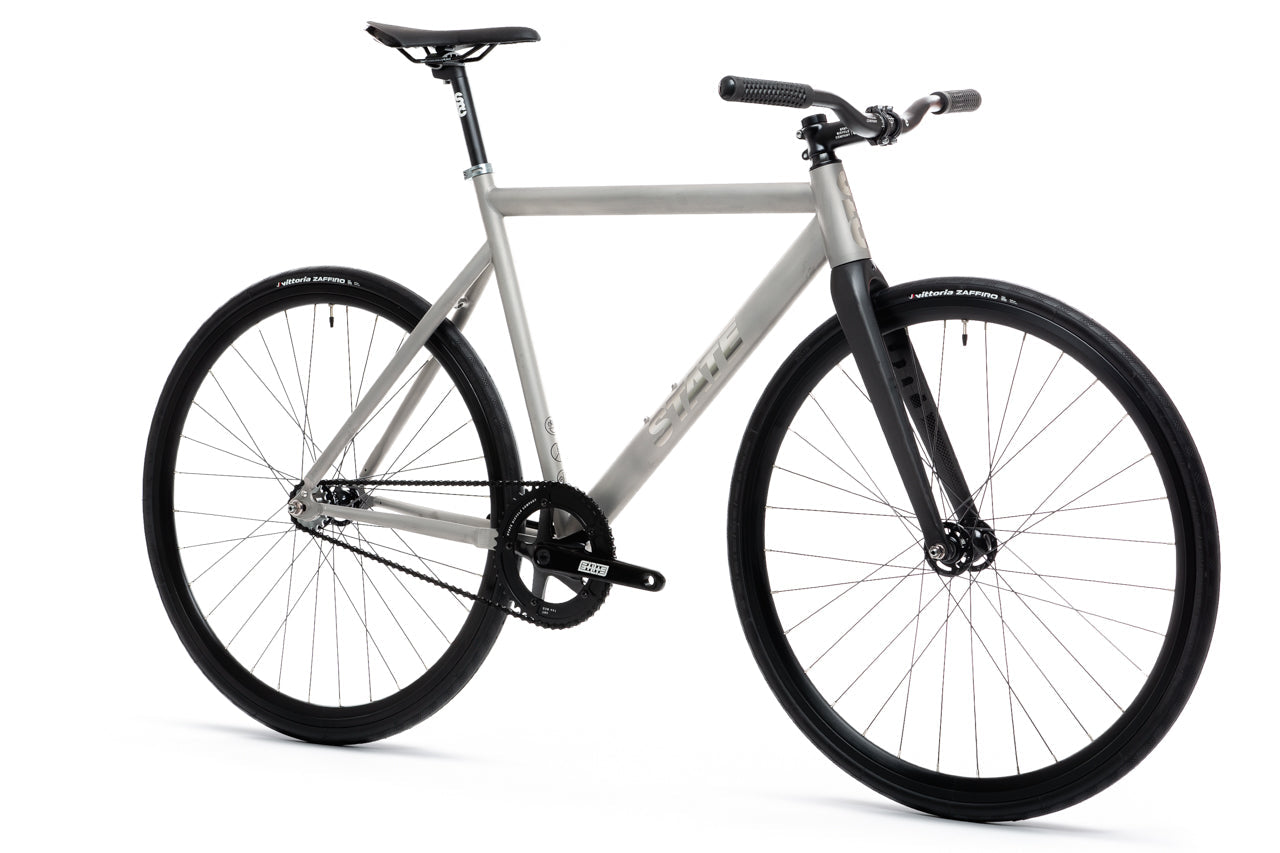

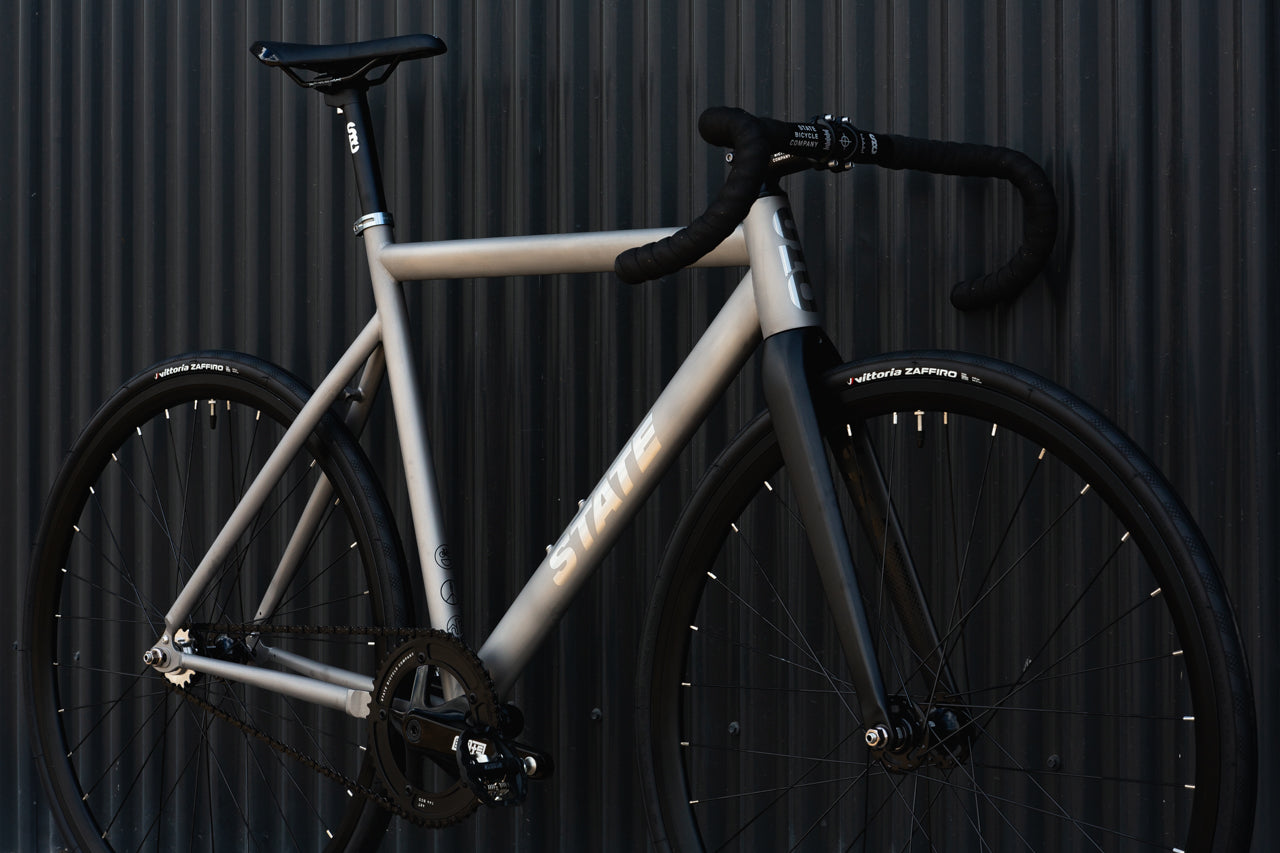

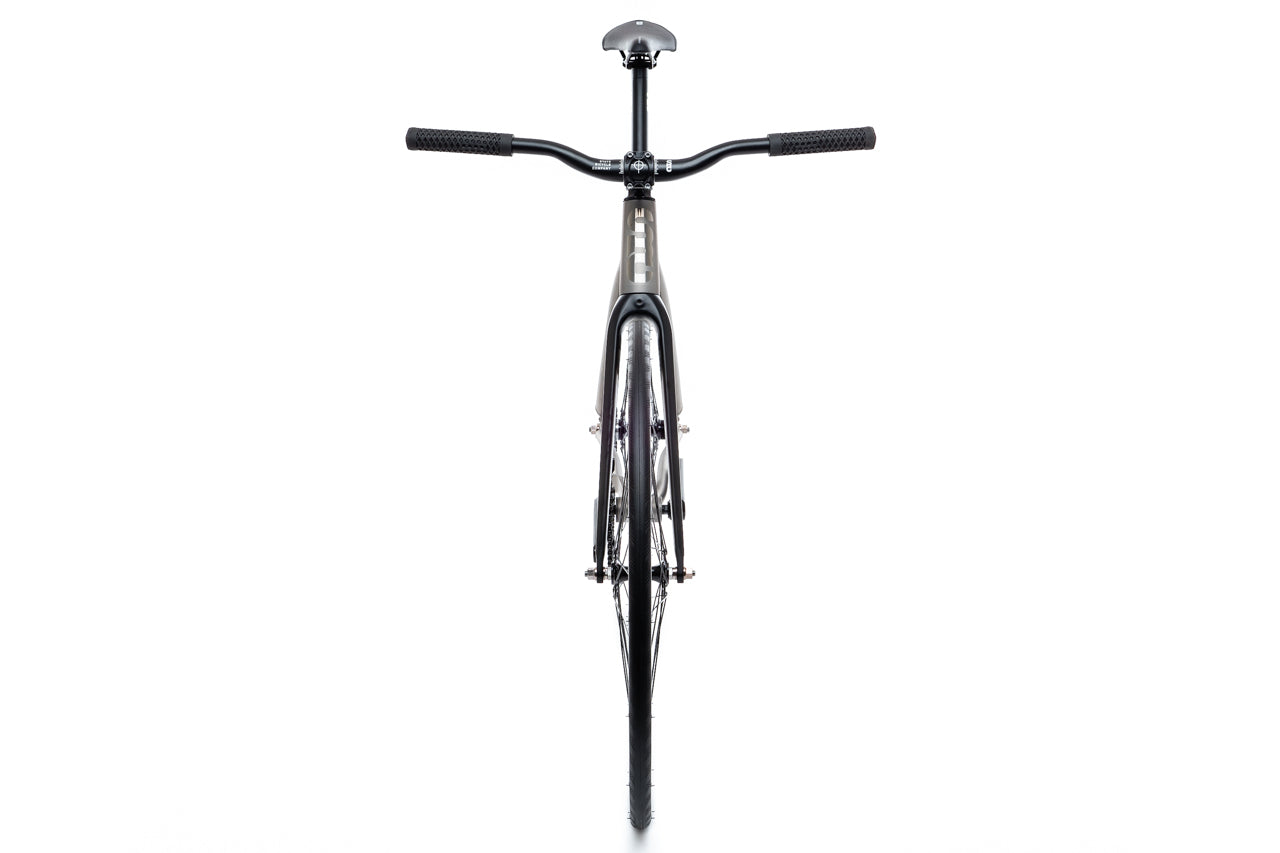

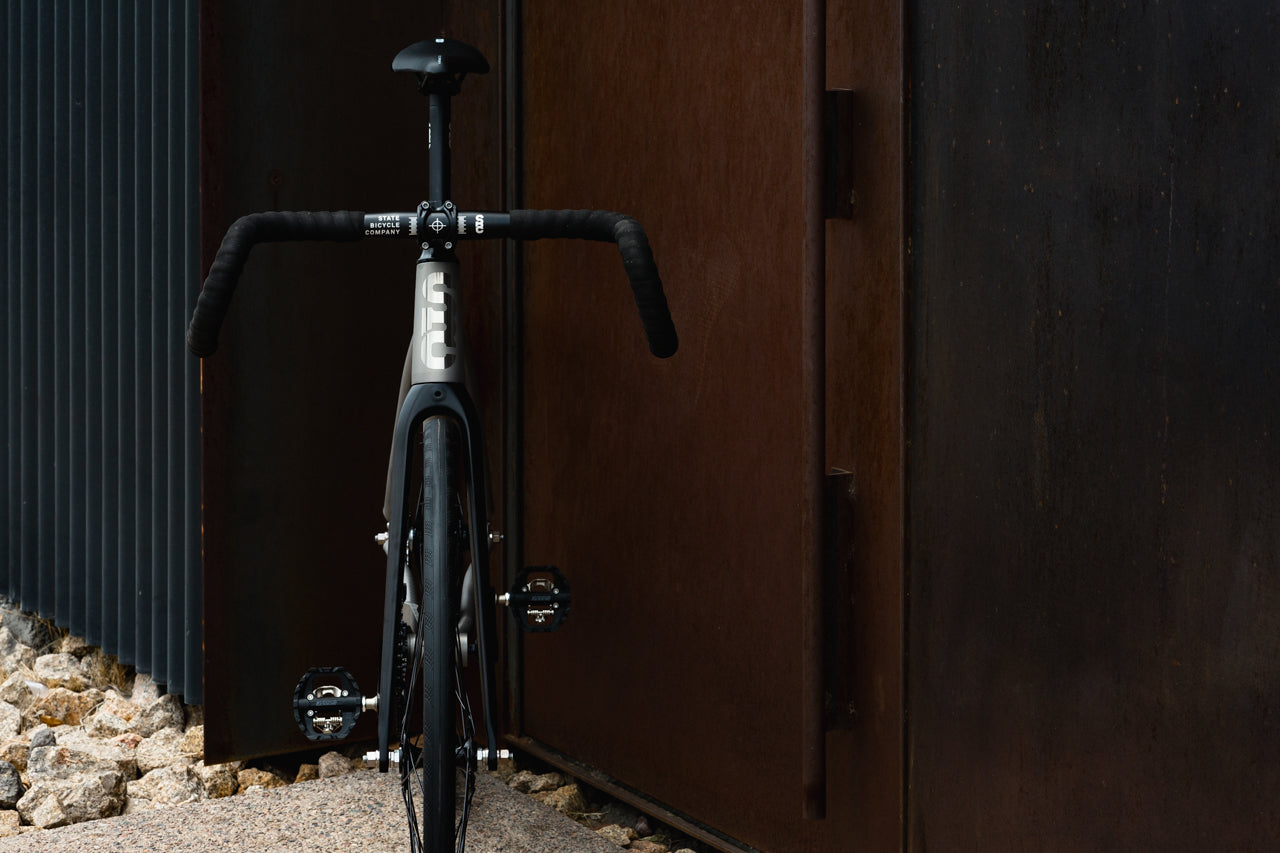

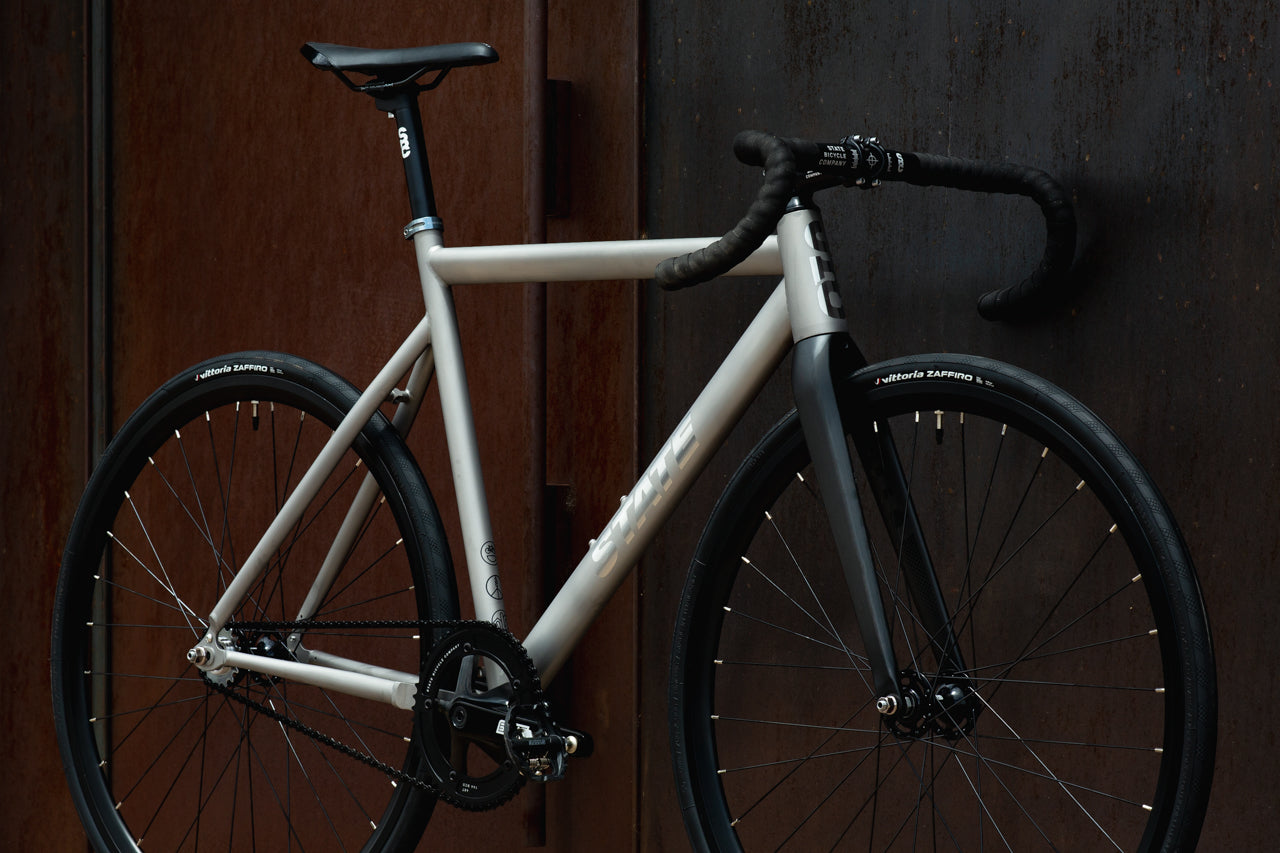

Handle Bar is an option at checkout, not an upgrade with a price on it. Choose 600mm wide riser bars with a 45mm rise and Vans grips for an upright, street position and a wide lever for control in traffic. Choose the 420mm compact drop bar, 130mm drop and 75mm reach, for a lower position and more hand positions on a long ride.
Both builds run the same frame, the same 90mm forged alloy stem with a 31.8mm clamp, and the same calipers, so the only thing that changes is where your hands sit. The riser build is the lighter of the two by about 6 ounces. Bar tape comes on the drop build and grips on the riser build.

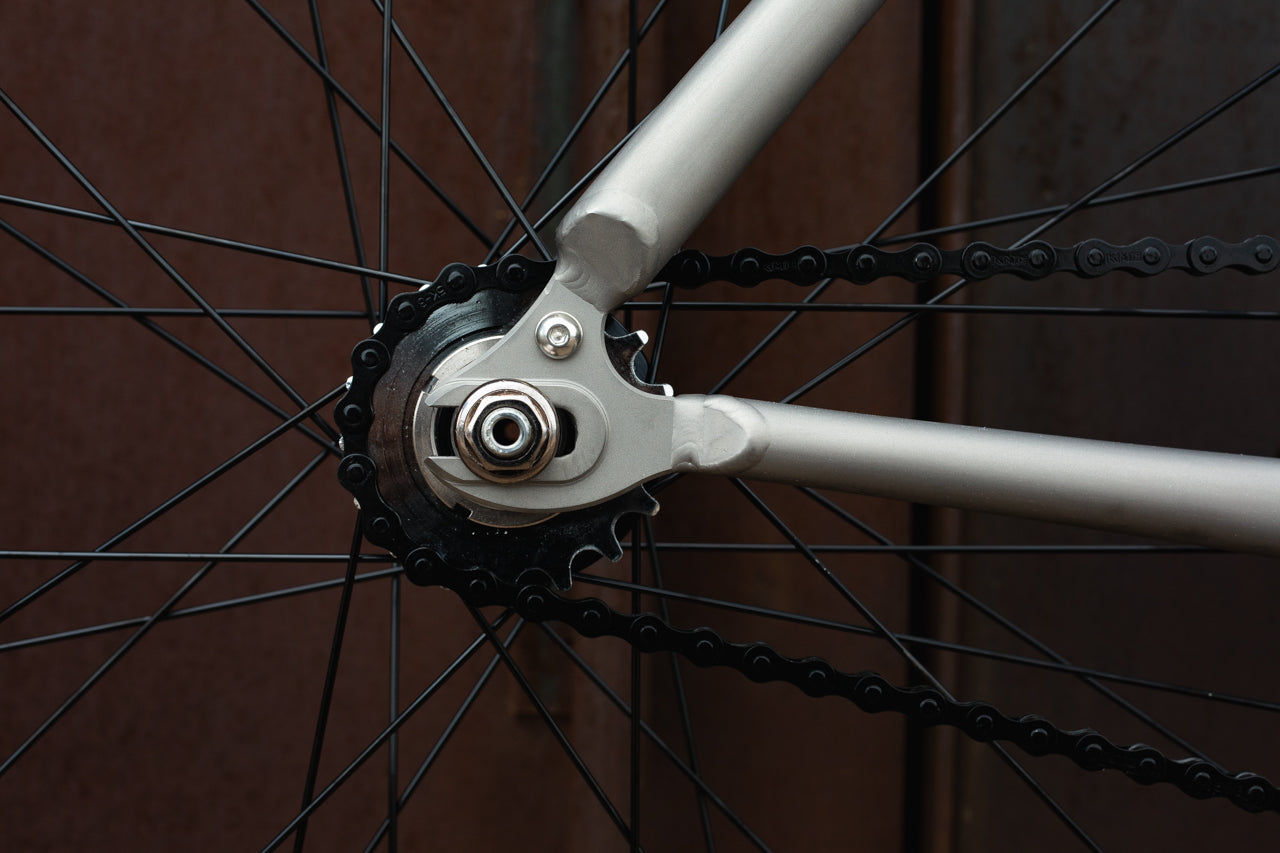

Flip Flop Hub, 17T Fixed
Sealed low flange hub with a 17T fixed cog fitted. The other side is threaded for a freewheel, which is not included.

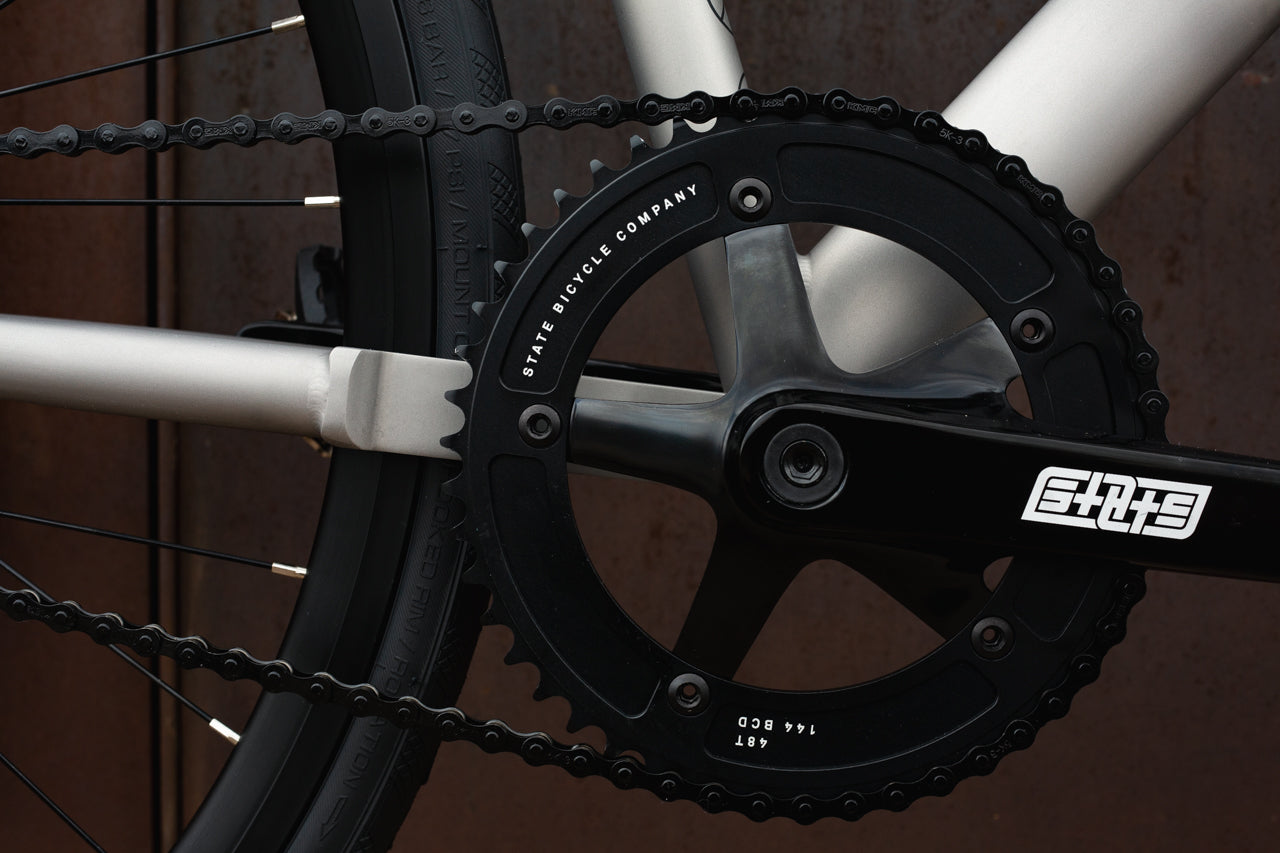

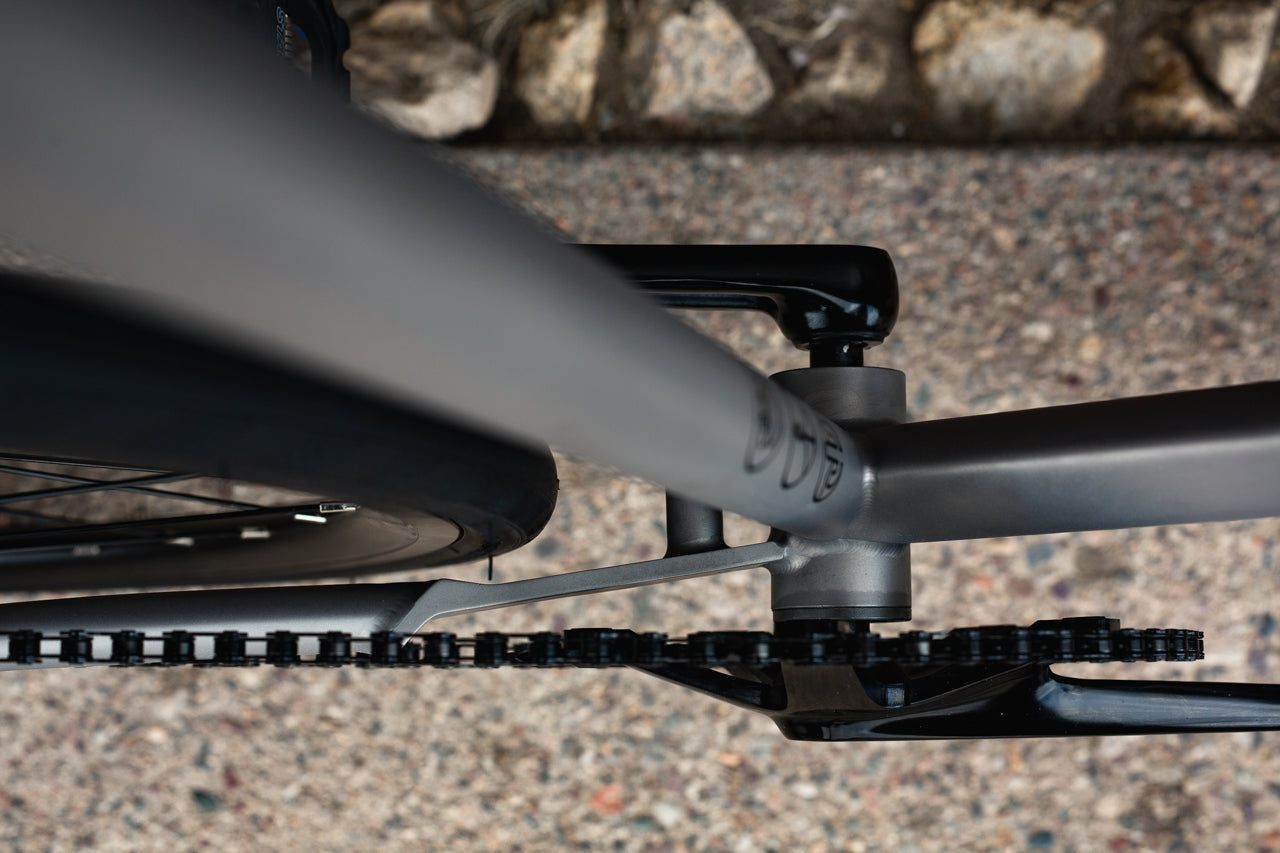

CNC 48T Crankset
CNC'd 6061 aluminium crank and 48T chainring on a 144 BCD spider, with 170mm arms on every size.

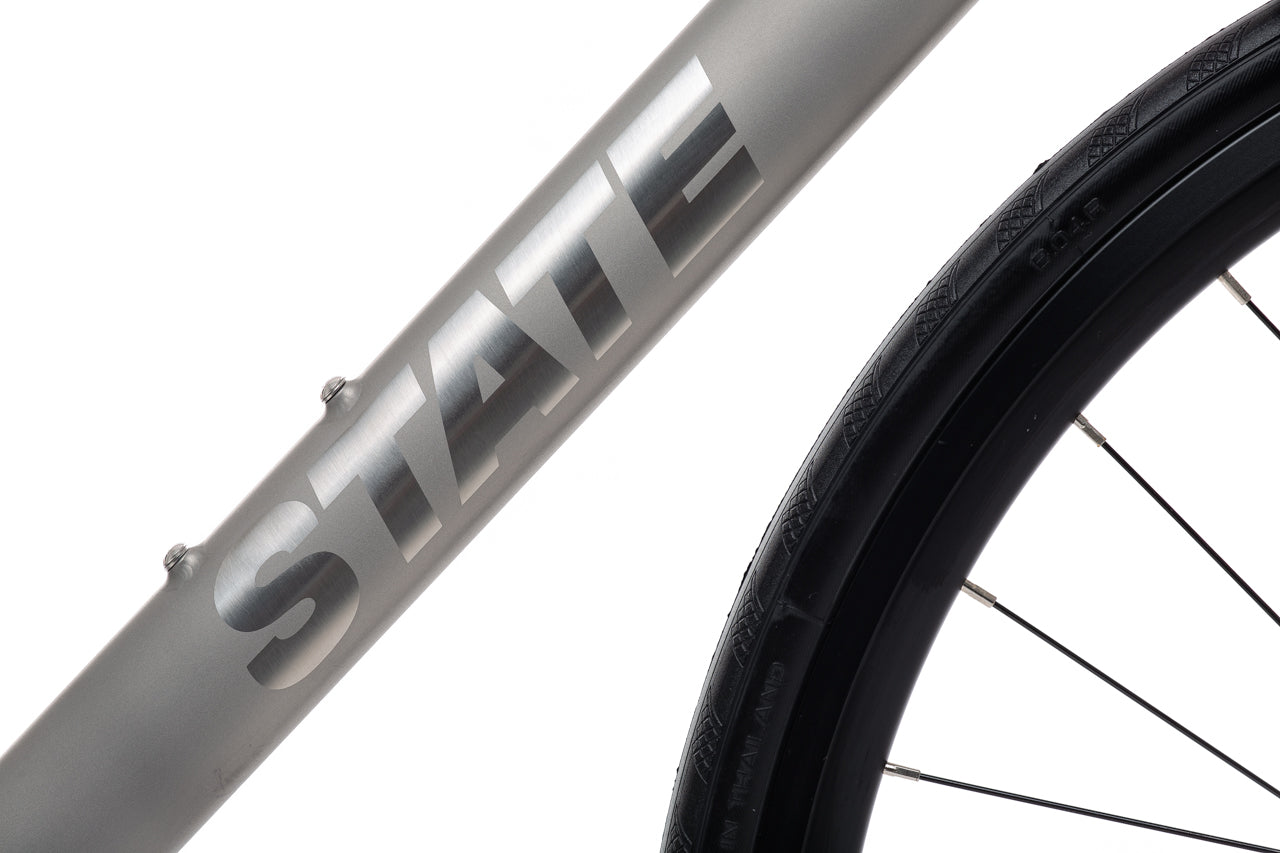

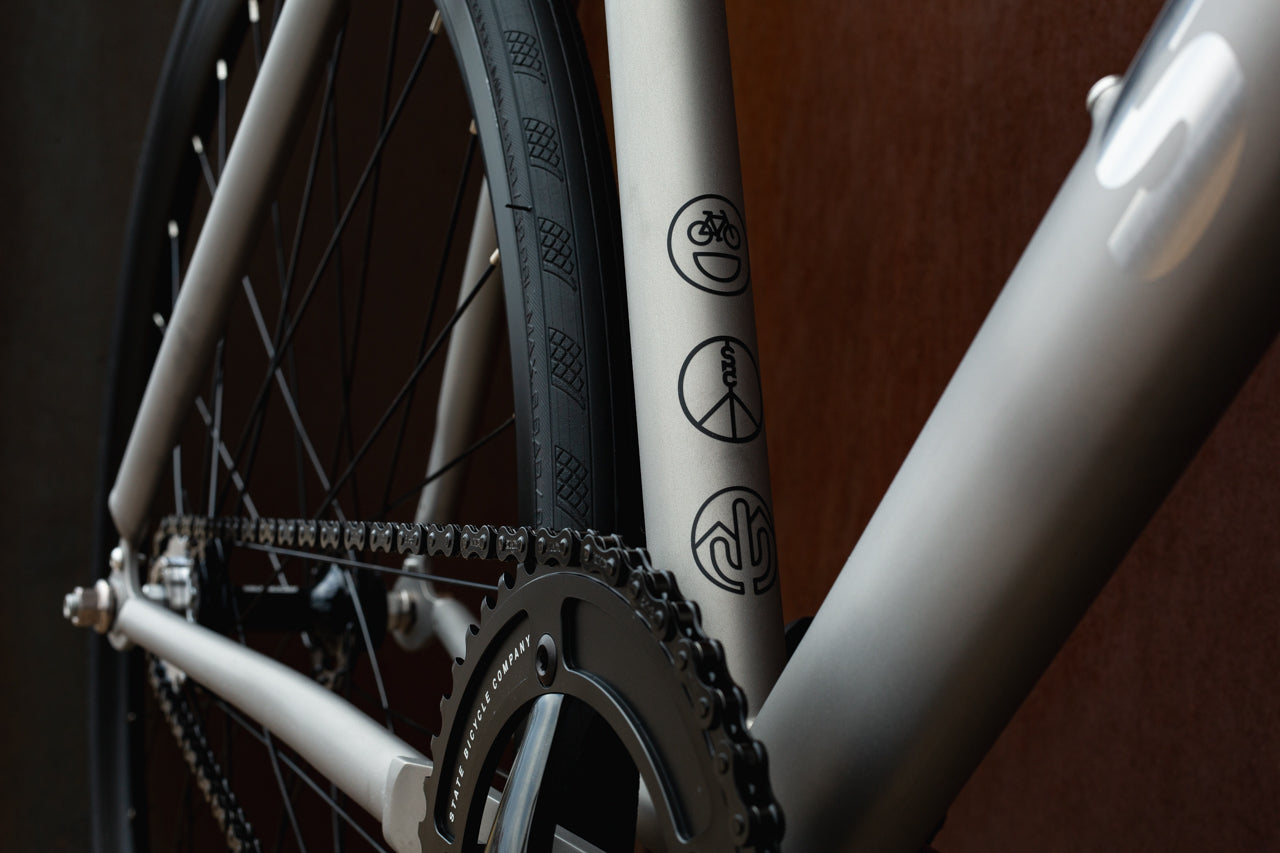

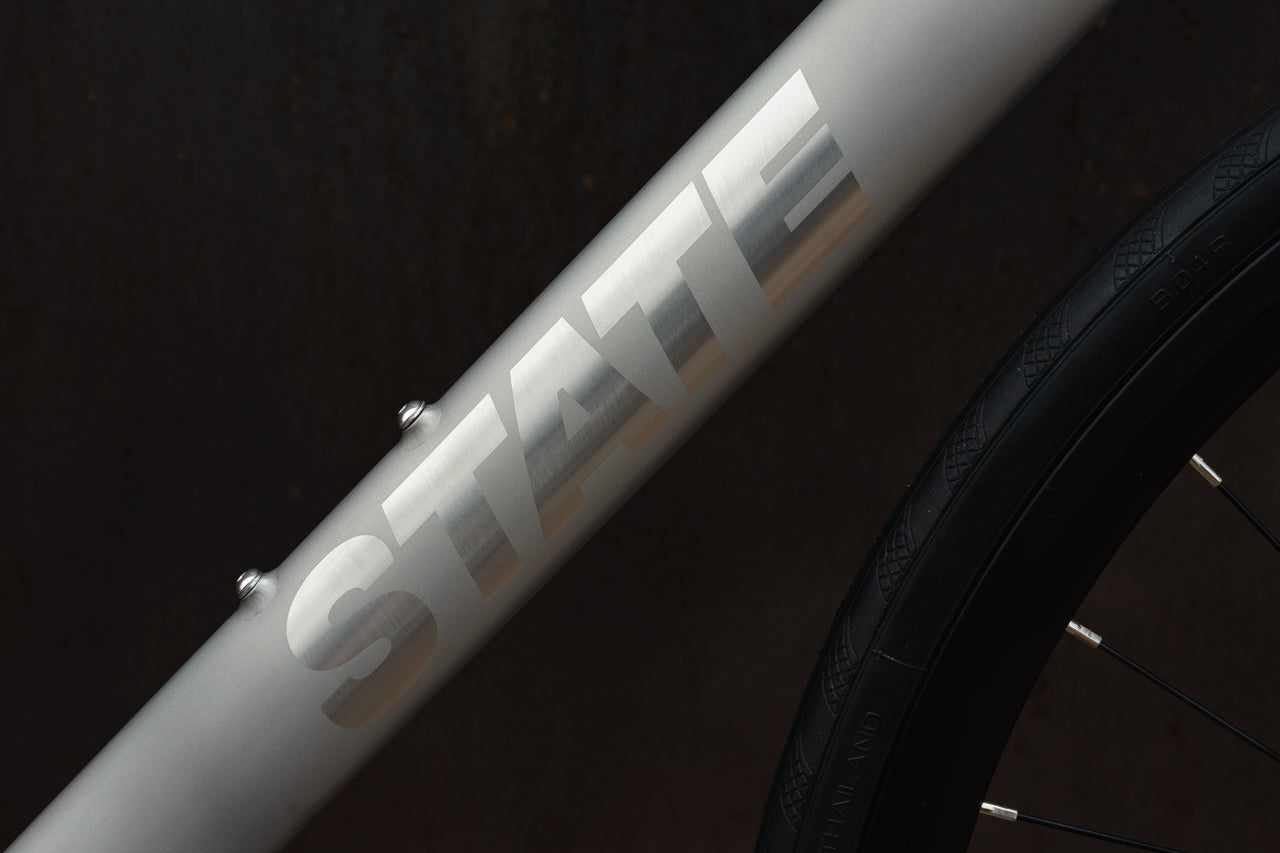

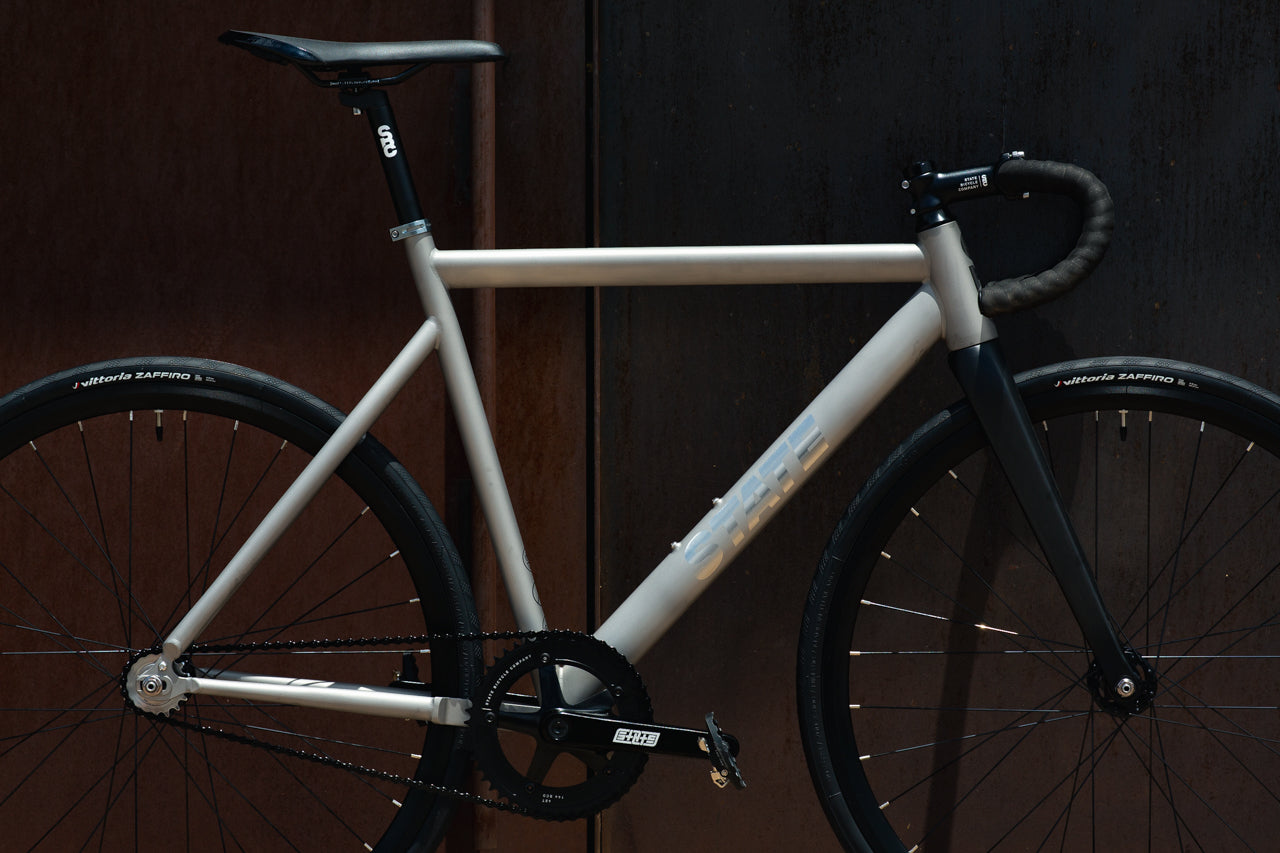

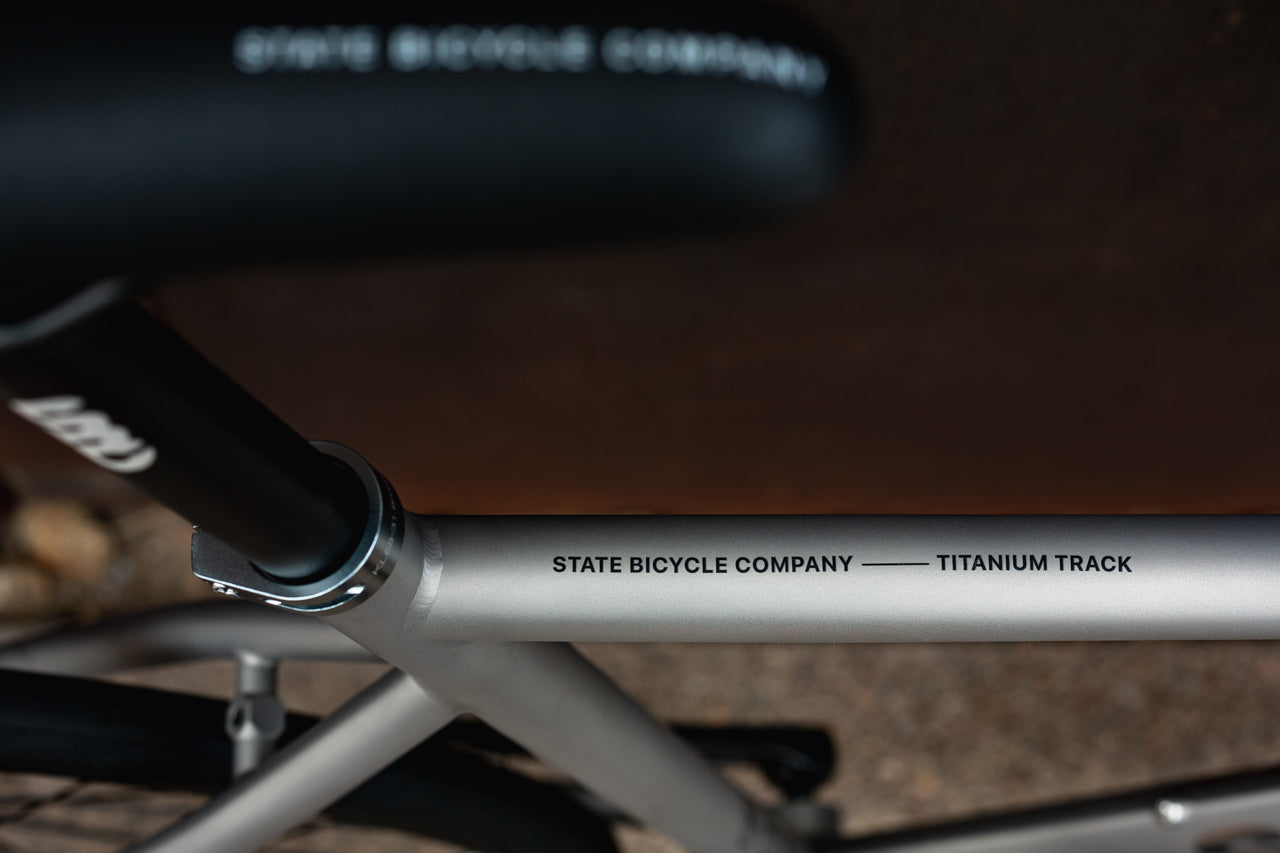

Sandblasted, Polished Logos
Bare sandblasted titanium with polished titanium logos. No paint to chip and no decals to fade.

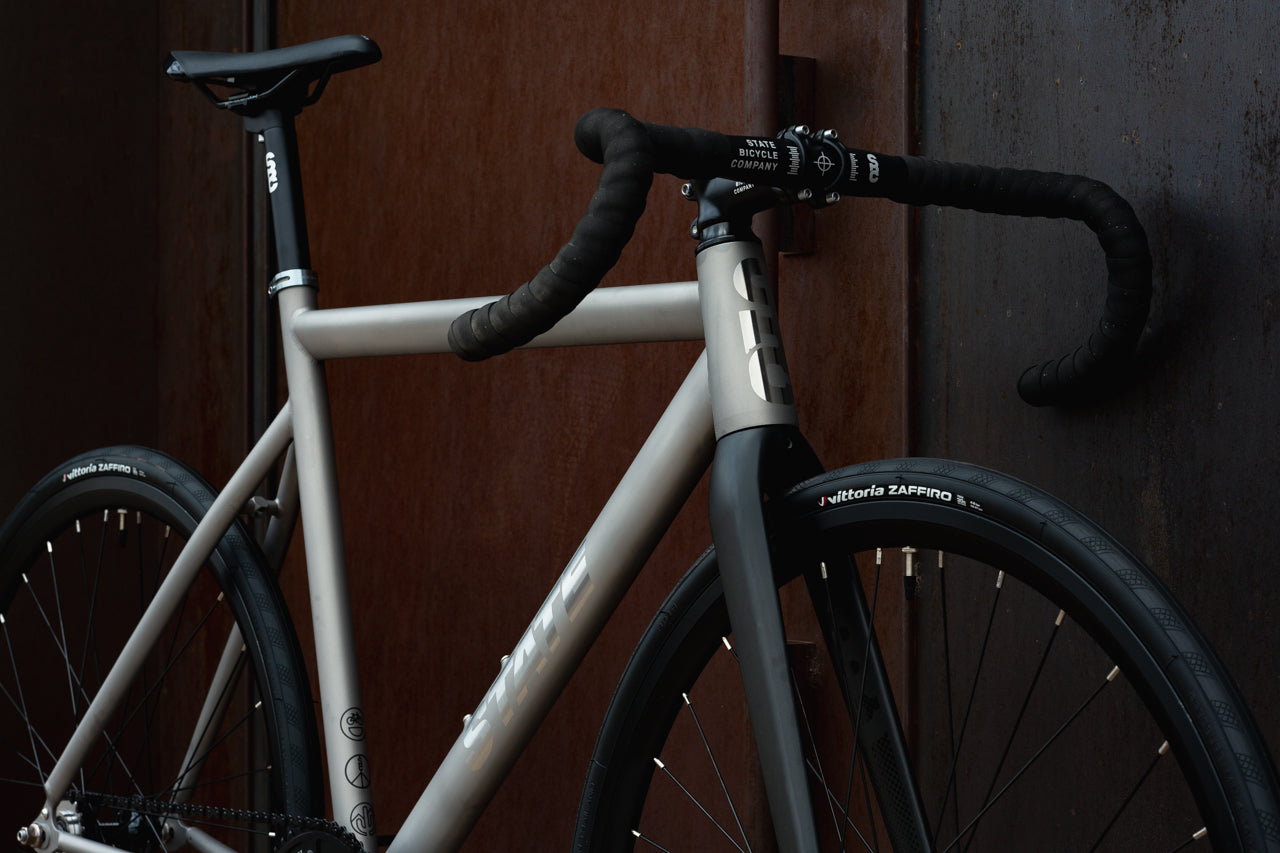

Full Carbon Fork
Carbon blades and carbon steerer on a tapered head tube, with dual pivot calipers front and rear included.
| Frame | Grade 9 (3Al/2.5V) titanium, straight gauge, 0.9mm wall, aero formed tubing, 1 1/8 to 1 1/2 inch tapered head tube, internal rear brake routing |
|---|---|
| Fork | Essor USA full carbon fork and steerer, 1 1/8 to 1 1/2 inch tapered, 388mm length, 45mm offset |
| Finish | Sandblasted titanium with polished titanium logos |
| Dropouts | Grade 5 (6Al/4V) titanium horizontal |
| Headset | Integrated and sealed, angular contact bearings |
| Bottom Bracket | Sealed cartridge, JIS square taper, English threaded, 68mm x 115mm |
| Crankset | CNC'd 6061 aluminium, 170mm arms, 144 BCD |
| Chainring | CNC'd 6061 aluminium, 48T, 144 BCD |
| Cog | 17T fixed cog, flip flop hub threaded for a freewheel |
| Chain | KMC Z410 |
| Brakes | Dual pivot forged alloy calipers, 48 to 67mm reach, front and rear |
| Rims | 700c aluminium, 30mm mid profile depth, 19mm internal width, 32h |
| Spokes | 14 gauge, 3 cross, 279mm |
| Hubs | Sealed bearing low flange, rear flip flop, 100mm front / 120mm rear |
| Wheel Set Weight | Front 2 lb 5 oz (1,049g), rear 2 lb 7 oz (1,124g) |
| Tires | Vittoria Zaffiro V30, 700 x 30c. Minimum 28c. State list 40c as the maximum width in their spec sheet, 38c in the description on their product page, and 35c as the recommended maximum on that same page |
| Handlebar | Wide riser 600mm with 45mm rise and Vans grips, or compact drop 420mm with 130mm drop and 75mm reach |
| Stem | Forged alloy, 31.8mm clamp, 90mm length, plus or minus 7 degrees |
| Seatpost | Aluminium, 27.2mm x 350mm |
| Seatpost Clamp | Aluminium, 31.8mm |
| Saddle | Premium aerodynamic race saddle, polyurethane with steel rails |
| Pedals | Not included |
| Weight | 17 lb 13 oz (49cm riser) to 18 lb 13 oz (61cm drop), complete bike |
| — Frame geometry — | 49cm / 52cm / 55cm / 58cm / 61cm |
| Chain Stay | 415mm / 415mm / 415mm / 415mm / 415mm |
| Fork Offset | 45mm / 45mm / 45mm / 45mm / 45mm |
| Head Tube | 115mm / 115mm / 130mm / 160mm / 190mm |
| Head Tube Angle | 72.5° / 72.5° / 72.5° / 74.5° / 74.5° |
| Seat Tube | 490mm / 520mm / 550mm / 580mm / 610mm |
| Seat Tube Angle | 73.5° / 74.5° / 73.5° / 73.5° / 73.5° |
| Top Tube (Effective) | 548.6mm / 544.3mm / 554.9mm / 570mm / 585mm |
| — Rider height — | 5'1" - 5'5" / 5'4" - 5'9" / 5'8" - 5'11" / 5'10" - 6'2" / 6'1" - 6'5" |
WHAT'S IN THE BOX
Titanium Track Complete Bike
Pedals And Freewheel Not Included
Belcopia Support
Questions before buying
Is the Titanium Track a fixie, or can I coast?+
Both. It ships with a 17T fixed cog on a flip flop hub, so out of the box it is a fixed gear. The other side of that hub is threaded for a standard freewheel, so you can buy one, flip the wheel around and coast. A freewheel is not included in the box.
What grade of titanium is the frame?+
The main tubes are Grade 9 titanium, the 3Al/2.5V alloy, straight gauge with a 0.9mm wall and aero formed by State rather than bought as off the shelf tubing. The dropouts, bottom bracket and head tube are Grade 5 titanium, the 6Al/4V alloy. The fork is full carbon rather than titanium.
How much does the Titanium Track weigh?+
State list 17 lb 13 oz for a 49cm with riser bars, rising to 18 lb 7 oz on a 61cm. With the drop bar the same sizes run 18 lb 3 oz to 18 lb 13 oz. Frame sets alone are 1,616g to 1,814g, and the wheel set is 1,049g front and 1,124g rear.
Do the riser bars and the drop bars cost the same?+
Yes. Handle Bar is an option on the product, not a paid upgrade, so both builds are $1,599.99. The riser build is 600mm wide with a 45mm rise and Vans grips. The drop build is a 420mm compact bar with a 130mm drop and 75mm reach, wrapped in bar tape. The riser build is about 6 ounces lighter.
What is the widest tire that fits?+
It ships on Vittoria Zaffiro V30 tires in 700 x 30c. State give three different figures for the maximum: their spec sheet lists a maximum width of 700 x 40c, the description on their product page says the frame supports up to a 38c tire, and the maximum recommended tire line on that same page says 35c. Riders have fitted 38 to 40c, but fitment depends on the tire brand and the wheel, and a larger tire may need a longer chain to keep clearance.
Does it come with brakes and pedals?+
Brakes yes, pedals no. Dual pivot forged alloy calipers with a 48 to 67mm reach are included front and rear, along with levers on whichever bar you choose. State list pedals as not included on this bike, so budget for a pair. The 48x17 gearing also gives unlimited skid patches for riders who run fixed without brakes.
What size should I get?+
State list the 49cm for riders 5 foot 1 to 5 foot 5, the 52cm for 5 foot 4 to 5 foot 9, the 55cm for 5 foot 8 to 5 foot 11, the 58cm for 5 foot 10 to 6 foot 2, and the 61cm for 6 foot 1 to 6 foot 5. Sizes overlap on purpose. Between two, the smaller rides more upright and the larger stretches you out.
